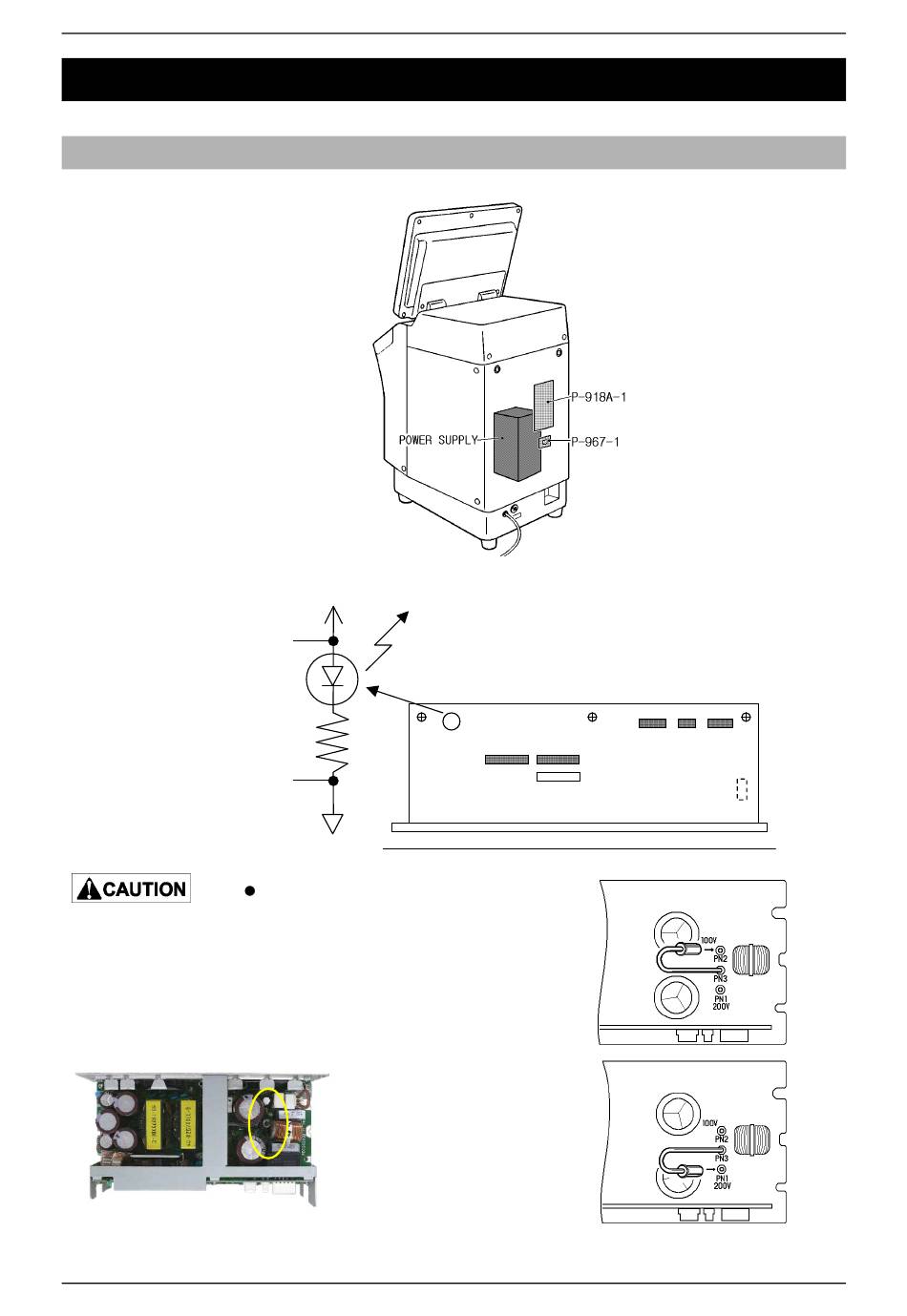

SWITCHING POWER SUPPLY (2H113WI)

6.9.1

BOARD LOCATION

This unit is located in the main body.
When the 200V is
applied to the 100V
specification, the
switching power supply
is damaged. Confirm
the specification
power-supply voltage.
IP-EMZ Service Manual
5[V] output
The indicator lights when DC 5[V] is applied.
D65
Input voltage select.
PN2-PN3: 100V - 120V
PN1-PN3: 200V - 240V
Chapter 6 ELECTRIC ASSEMBLY
CN7 CN5
CN6
(AC85 - 132V)
(AC170 - 264V)
CN1 CN2 CN3
CN4
