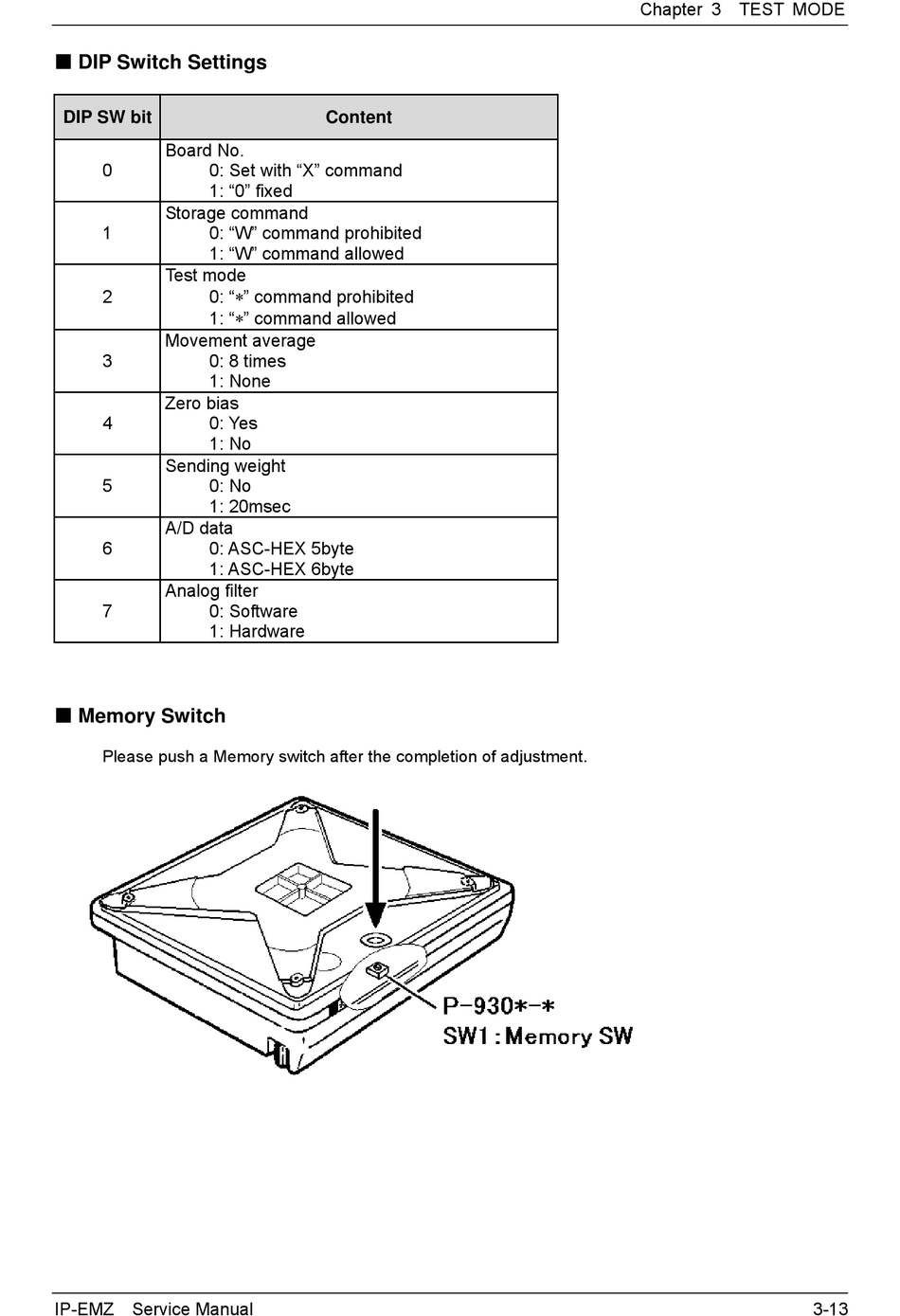

DIP Switch Settings
DIP SW bit
Board No.
0
0: Set with "X" command
1: "0" fixed
Storage command
1
0: "W" command prohibited
1: "W" command allowed
Test mode
2
0: "∗" command prohibited
1: "∗" command allowed
Movement average
3
0: 8 times
1: None
Zero bias
4
0: Yes
1: No
Sending weight
5
0: No
1: 20msec
A/D data
6
0: ASC-HEX 5byte
1: ASC-HEX 6byte
Analog filter
7
0: Software
1: Hardware
Memory Switch
Please push a Memory switch after the completion of adjustment.
