Scale Adjustment - ISHIDA IP-EMZ Service Manual

Chapter 3 TEST MODE
3.8.2

SCALE ADJUSTMENT

This procedure is used to select the weighing capacity and create a command message to be sent to
the scale.
Enter "495344" using the numeric keys and press the [PAGE] button.
Buttons/Display Fields
BACK
Capacity
SPAN
Select
[ABC] [abc]
SEND
Send Data
Receive Data
3-14

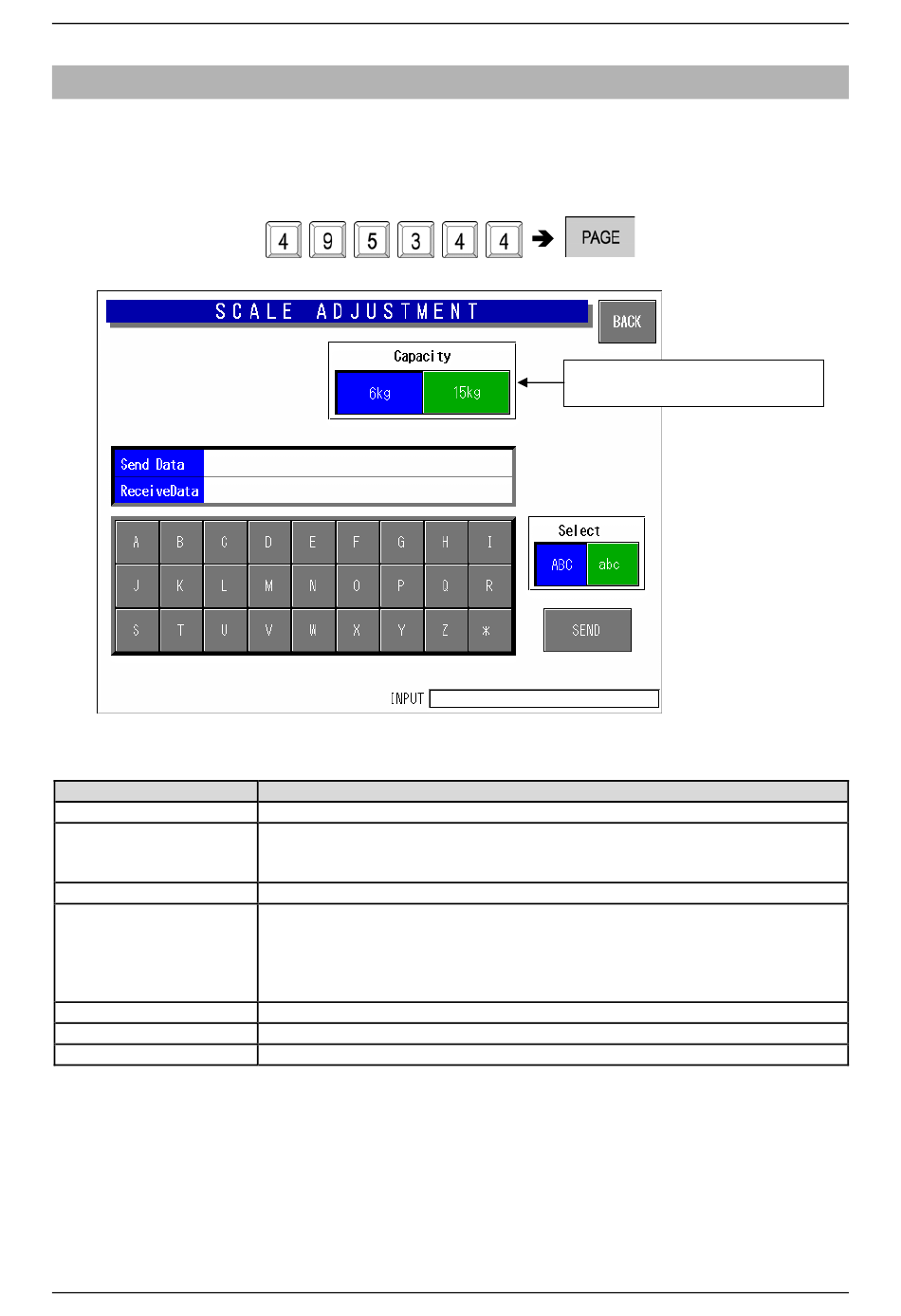

Scale Adjustment Screen
Returns to the Calibration screen.
Select either "6kg" or "15kg".
Press the button that corresponds to the capacity to be selected. The button
color will change to blue.
Executes span adjustment.
Select either "ABC" or "abc".
These buttons select upper or lowercase letters for alphabetic input when
creating a command message to send to the scale board.
Select letter type by pressing the corresponding button. The button color will
change to blue.
Send the command message to the scale unit.
Displays command message data sent to the scale board.
Displays command message data received from the scale board.
This window is different at types of
SCALE. Or it does not display.
Function
IP-EMZ Service Manual
