ISHIDA IGB Series Operation Manual

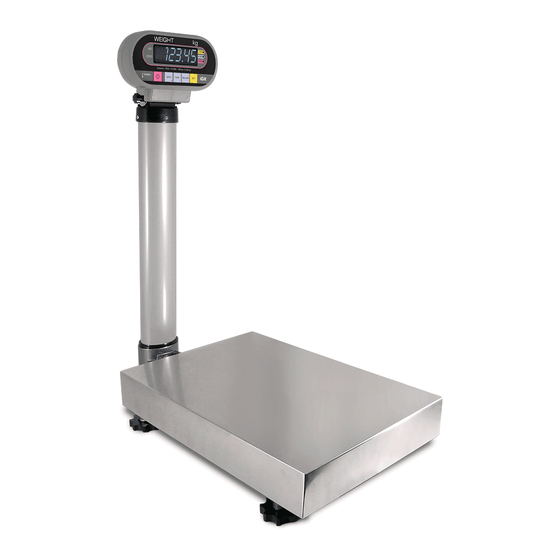

Platform scale igx/igb series
Hide thumbs Also See for IGB Series:
Table of Contents

Advertisement

Quick Links

IGX Series
• Do not carry out installation, operation, service, or
maintenance until thoroughly understanding the
contents of this manual.
• Keep this manual available at all times for installation,
operation , service, and maintenance.
Manual No. 0202A
IGX/IGB Series
IMPORTANT
Platform Scale
Kg/Lb Specification
Operation Manual
IGB Series
PN 86545

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ISHIDA IGB Series

Summary of Contents for ISHIDA IGB Series

  • Page 1 Platform Scale IGX/IGB Series Kg/Lb Specification Operation Manual IGX Series IGB Series IMPORTANT • Do not carry out installation, operation, service, or maintenance until thoroughly understanding the contents of this manual. • Keep this manual available at all times for installation, operation , service, and maintenance.
  • Page 2 This manual explains the operation procedures, cautions for use, etc. of the IGX/IGB Series. Please read this manual fully so that you can use the IGX/IGB Series safely and effectively. Failure to follow the instructions in this manual may result in loss or serious injury, damage to the machine or faulty operation.

  • Page 3: Table Of Contents

    Chapter 4 SETTING MODE................21 Setting Method .................. 22 Set Values List................... 24 Chapter 5 BATTERY CHECK................27 Checking Battery Voltage ..............28 Chapter 6 APPENDIX ..................31 Troubleshooting................. 32 Specifications ..................33 IGX/IGB Series Operation Manual No. 0202A page i...

  • Page 4: Chapter 1 Before Operating Machine

    BEFORE OPERATING MACHINE IGX/IGB Series Operation Manual No. 0202A page 1...

  • Page 5: Caution For Handling

    Indicates information that, if not heeded, could result in faulty operation, damage to the machine, or relatively serious injury. Symbol Meaning Indicates additional information of particular importance. Indicates information to help your understanding of the related text. NOTE Indicates a page to refer to. page 2 IGX/IGB Series Operation Manual No. 0202A...
  • Page 6 A place exposed to direct sunlight or direct cold air. A place subject to strong wind. A place where the floor or ground is not level or unstable. Power Supply Always operate the machine with the specified AC voltage. IGX/IGB Series Operation Manual No. 0202A page 3...

  • Page 7: Name And Function Of Each Part

    Used to set the scale weight to zero, or increase the value on the display. Used to set the tare weight, or decrease the value on the display. Used to move the digit position or finish a setting procedure. Used to determine or call-up the setting. page 4 IGX/IGB Series Operation Manual No. 0202A...

  • Page 8: Installation

    CAUTION Tighten the two hex-headed bolts with an Allen wrench. Bundle the excessive cables with a clamp so as to prevent cable damage. IGX/IGB Series Operation Manual No. 0202A page 5...
  • Page 9 Use the level adjuster until the air bubble inside the level is positioned in the center of the circle. Adjusting the Display Unit Angle After loosening the display unit tightening knob, adjust the unit to an easy-to see angle. Then re-tighten the knob. page 6 IGX/IGB Series Operation Manual No. 0202A...

  • Page 10: Start And Stop Of Operation

    Press the ON/OFF key to stop the machine operation. IGX Series IGB Series NOTE When the scale has not been used for a long time, the scale will be automatically turned off. IGX/IGB Series Operation Manual No. 0202A page 7...

  • Page 11: Daily Care

    Clean the outer surface of the machine with a soft cloth soaked with a water-diluted neutral detergent. Then, wipe it with a soft and dry cloth. Do not use thinner or chemicals other than a water-diluted neutral detergent. CAUTION page 8 IGX/IGB Series Operation Manual No. 0202A...

  • Page 12: Chapter 2 Preset Function

    PRESET FUNCTION IGX/IGB Series Operation Manual No. 0202A page 9...

  • Page 13: Presetting The Values

    IGX Series IGB Series Repeat to press either the ZERO (+) or TARE (-) key until the desired PLU No. appears on the display. [Example] Selecting PLU 2 IGX Series IGB Series page 10 IGX/IGB Series Operation Manual No. 0202A...
  • Page 14 Press the SET key to determine the tare weight and move to the display for setting the upper limit value. Move the flashing digit to the desired position by pressing the COLUMN key. IGX Series IGB Series IGX/IGB Series Operation Manual No. 0202A page 11...
  • Page 15 Move the flashing digit to the desired position by pressing the COLUMN key. NOTE If the lower limit value has already been preset, only a value equal to or larger than this limit value can be set. IGX Series IGB Series page 12 IGX/IGB Series Operation Manual No. 0202A...
  • Page 16 If the upper limit value has already been preset, only a value equal to or less than this limit value can be set. Finishing the Setting Procedures Press the COLUMN key to finish the setting procedure. IGX Series IGB Series IGX/IGB Series Operation Manual No. 0202A page 13...

  • Page 17: Calling Up The Preset Values

    If no tare weight has been set, or if neither the upper limit value nor the lower limit value has been set, the values set before pressing the SET key will remain active. page 14 IGX/IGB Series Operation Manual No. 0202A...

  • Page 18: Chapter 3 Weighing

    WEIGHING IGX/IGB Series Operation Manual No. 0202A page 15...

  • Page 19: Weighing Non-Plus

    The “NET” indicator will be lit. [Example] Tare weight: 180g IGX Series IGB Series Place an item on the weigh platter. The display will show the net weight. [Example] Net weight: 2,280g IGX Series IGB Series page 16 IGX/IGB Series Operation Manual No. 0202A...
  • Page 20 TARE key at the same time. At the same time IGX Series IGB Series NOTE 1. Either “kg” or “lb” indicator will be lit. 2. This function is available only when nothing is placed on the platter. IGX/IGB Series Operation Manual No. 0202A page 17...

  • Page 21: Weighing Plus

    IGB Series If necessary, repeat to press either the ZERO (+) or TARE (-) key until the desired PLU No. appears on the display. [Example] Selecting PLU 2 IGX Series IGB Series page 18 IGX/IGB Series Operation Manual No. 0202A...
  • Page 22 When the net weight did not reach the programmed lower weight limit, the “UNDER” indicator will light up. When the net weight is between the upper and lower weight limits, the “ACCEPT” indicator will light up. IGX/IGB Series Operation Manual No. 0202A page 19...
  • Page 23 When weighing the same PLU item again, repeat steps 4 and 5 above. NOTE When weighing a different PLU item, repeat steps 2 through 5 above. To confirm the preset tare, press the COLUMN key. page 20 IGX/IGB Series Operation Manual No. 0202A...

  • Page 24: Chapter 4 Setting Mode

    SETTING MODE IGX/IGB Series Operation Manual No. 0202A page 21...

  • Page 25: Setting Method

    When not changing the setting value, just press the SET key. IGX Series IGB Series Select the desired Setting No. by pressing the SET key. Return to step 2 above. IGX Series IGB Series page 22 IGX/IGB Series Operation Manual No. 0202A...
  • Page 26 Press the COLUMN key to finish the setting procedure. IGX Series IGB Series For descriptions of the setting numbers and the setting conditions of the setting value numbers, refer to the Set Value List on the following page. IGX/IGB Series Operation Manual No. 0202A page 23...

  • Page 27: Set Values List

    Buzzer sounds only when key input is made Upper/lower limits discrimination function (during stable/unstable weighing) Automatic power-off time No function 10 minutes 20 minutes 30 minutes 40 minutes 50 minutes 60 minutes NOTE Shaded areas are factory default settings. page 24 IGX/IGB Series Operation Manual No. 0202A...
  • Page 28 No function No function No function No function Setting automatic power-off time No function 10 minutes 20 minutes 30 minutes 40 minutes 50 minutes 60 minutes NOTE Shaded areas are factory default settings. IGX/IGB Series Operation Manual No. 0202A page 25...
  • Page 29 MEMO page 26 IGX/IGB Series Operation Manual No. 0202A...

  • Page 30: Chapter 5 Battery Check

    BATTERY CHECK For IGB Series Only IGX/IGB Series Operation Manual No. 0202A page 27...

  • Page 31: Checking Battery Voltage

    Since rechargeable batteries have a normal voltage of 1.2 V (2.4V for two batteries), their voltage cannot be indicated even when they are fully charged. [Example] Voltage (for reference) 2.6 to 2.8 V [Example] Voltage (for reference) 2.4 to 2.6 V page 28 IGX/IGB Series Operation Manual No. 0202A...
  • Page 32 Press any key other than the TARE key to cancel the battery check display. NOTE When it is necessary to replace the batteries when in use, the battery-replacement symbol will illuminate and the display indicating all numeric values will appear. IGX/IGB Series Operation Manual No. 0202A page 29...
  • Page 33 MEMO page 30 IGX/IGB Series Operation Manual No. 0202A...

  • Page 34: Chapter 6 Appendix

    APPENDIX IGX/IGB Series Operation Manual No. 0202A page 31...

  • Page 35: Troubleshooting

    6.1 TROUBLESHOOTING If an error occurs while using the scale, take appropriate measures according to instructions in the following table. If you have any other problems, contact your nearest ISHIDA dealer. Symptom Measures The display unit does not indicate any Check the power source.

  • Page 36: Specifications

    [Setup Mode] None/10min./ 20min./ 30min./ 40min./ 50min./ 60min. [Setup Mode] Function “Yes“ / “No“ selection Auto Preset Call-up (PLU 1 is called up when the power is ON.) Battery Check Mode Buzzer ON/OFF Switch Option IGX/IGB Series Operation Manual No. 0202A page 33...
  • Page 37 [Setup Mode] None/10min./ 20min./ 30min./ 40min./ 50min./ 60min. [Setup Mode] Function “Yes”/”No” selection Auto Preset Call-up (PLU 1 is called up when the power is ON.) Battery Check Mode Buzzer ON/OFF Switch Option AC adapter (Dealer option) page 34 IGX/IGB Series Operation Manual No. 0202A...
  • Page 38 Design and specifications are subject to change without notice. 44 SANNO-CHO, SHOGOIN, SAKYO-KU KYOTO, 606-8392 JAPAN PHONE: 81-75-771-4141 FACSIMILE: 81-75-751-1634 URL: http://www.ishidajapan.com...

This manual is also suitable for:

Igx seriesIgb-60Igb-150Igx-60Igx-150
