When connecting other devices, connect them according to the following.
7.
Other machine of the master/satellite system I2NET (INLINE) (Dsub 9 pin)
Optional printer ······················································ I2NET (OPTION1) (Modular jack)
IF-21FD ································································· I2NET (INLINE) (Dsub 9 pin)
Journal printer ······················································· RS-232C
Fix the harnesses.
8.
NOTE:
Nylon clamps to fix harnesses are not
attached. Prepare the nylon clamps
beforehand with their sizes according to
the number of the connected harnesses.
Load labels to be used by the user. Refer to "Label Replacement" in the User's Manual.
9.
IP-EMZ Service Manual
Chapter 1 INSTALLATION

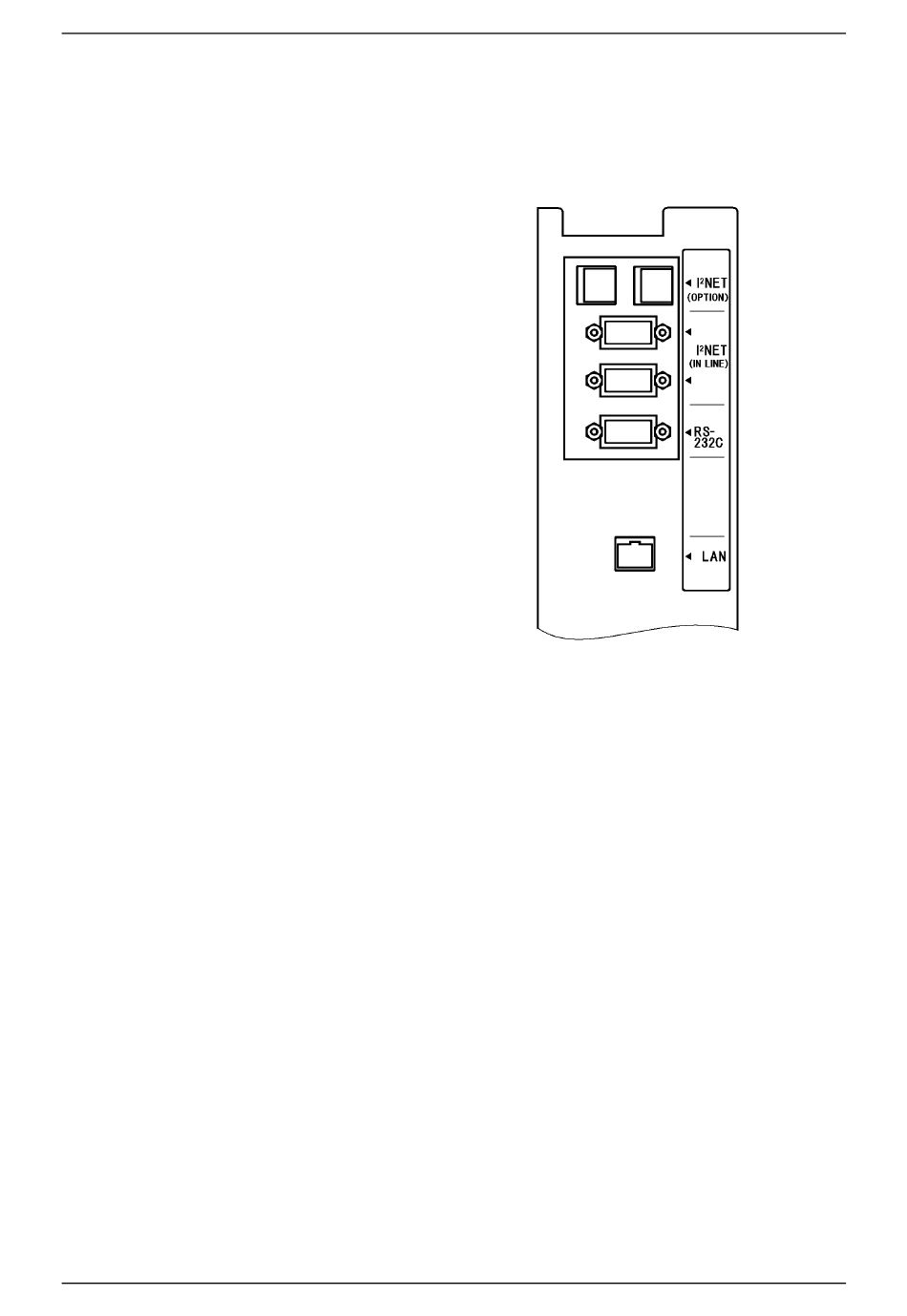

Fig.1 Rear Connectors
(Located in the rear cover)
1-9
