Page 1 User’s Manual Ver. 1.02 IMPORTANT • Read this manual thoroughly, and do not perform installation, operation, maintenance, or inspection unless you fully understand all of the contents. • Keep this manual in a safe place where you can refer to it easily while installing, operating, and carrying out maintenance or inspections.
Page 2 © ISHIDA Co., Ltd. 2008 All rights are reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means mechanical, electronic, photocopying, recording, or otherwise without prior written permission of ISHIDA.
Page 3: Important Notice
ISHIDA is not liable for any damage, loss or injury that results from incorrect operation, insufficient caution, unauthorized modifications to the machine, or failure to follow the instructions contained in this manual.
Page 4 • Do not disassemble, modify, or attempt to repair the machine. Doing so may damage the original safety functions. • Do not hold the connector cover when carrying the machine. Dropping the machine may result in injury or cause the machine to break down. UNI-7 User’s Manual...
Page 5 • Do not press the touch panel with an edged thing. Doing so may scratch the panel and cause the machine to break down. • Risk of explosion if battery is replaced by an incorrect type. Make sure to dispose of used batteries according to the instructions. UNI-7 User’s Manual...
Page 6 • Places with large voltage • Places exposed to direct cold sunlight fluctuations air from air conditioners or • Places where water or other refrigerators liquids are easily spilled on the • Places where the floor or machine foundation is unstable UNI-7 User’s Manual...
Page 7 Additionally, there may be significant property damage. Indicates a potentially hazardous situation where, if not avoided, may result in minor or moderate injury or in property damage. Indicates reference information for operation. Indicates the referred page for operation. UNI-7 User’s Manual...
Page 8: Table Of Contents
PROCESSING FIXED WEIGHT/FIXED UNIT PRICE PRODUCTS ..2-19 CHAPTER 3 RECEIPT ISSUE ....................3-1 SALES BY THE SAME OPRATOR ................3-1 SALES BY DIFFERENT OPRATORS ..............3-11 VOIDING PRODUCT REGISTRATION..............3-24 CHAPTER 4 TRACEABILITY PRODUCTS ................4-1 REFERING TO PREVIOUS TRACEABILITY DATA..........4-1 UNI-7 User’s Manual...
Page 9 10.4 OPERATOR REGISTRATION................10-19 10.5 PRESET KEY REGISTRATION ................10-22 10.5.1 SETTING PRESET FUNCTIONS............10-22 10.5.2 ASSIGNING IMAGES ON THE PRESET KEYS ........10-25 10.5.3 COLORING PRESET KEYS ..............10-27 10.5.4 CHANGING PRESET KEY SIZES ............10-30 UNI-7 User’s Manual...
Page 10 10.19 MINCE TRACEABILITY REGISTRATION ............10-110 10.20 FIXED PRICE MARK REGISTRATION ..............10-111 10.20.1 CREATING NEW PRICE MARKS ............10-111 10.20.2 CHANGING EXISITING PRICE MARKS..........10-113 10.21 FREE MESSAGE REGISTRATION ..............10-115 10.21.1 CREATING NEW MESSAGES.............. 10-115 10.21.2 CHANGING EXISITING MESSAGES ........... 10-118 viii UNI-7 User’s Manual...
Page 11 12.3 TOUCH PANEL ADJUSTMENT ................12-4 12.4 DISPLAY CHECK ....................12-6 APPENDIX TEXT EDITING .......................A-1 OPERATION PANEL AND KEY FUNCTIONS ............A-1 NORMAL CHARACTER EDITING ................A-3 SPECIAL CHARACTER EDITING ................A-6 LINE DELETION ......................A-8 CHARACTER DELETION..................A-9 CHARACTER BACKSPACING ................A-11 UNI-7 User’s Manual...
Page 12: Chapter 1 Before Use
Label size Label width: 30mm to 60mm Label length: 20mm to 150mm Number of label cassettes 7 cassettes Input/Output LAN 1 channel USB 1 channel CF 1 channel Drawer 2 channels Program store medium Flash ROM (32M bytes) UNI-7 User’s Manual...

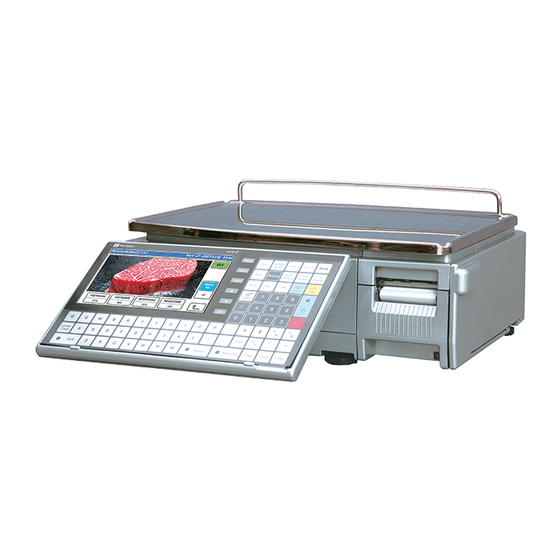

Page 13: Model Variations
Chapter 1 BEFORE USE MODEL VARIATIONS Bakery Type Bench Type Pole Type Elevated Type Self-service Type Hanging Type UNI-7 User’s Manual...
Page 14: Part Names And Functions
Chapter 1 BEFORE USE PART NAMES AND FUNCTIONS 1.3.1 FRONT VIEW (BENCH TYPE) 1.3.2 REAR VIEW (BENCH TYPE) UNI-7 User’s Manual...
Page 15: Operation Panel
Used to issue a label. Used to jump to the top page. Used to enter tare weight. Used to jump to the end page. Used to escape from the current Used to reset a weigh to zero. mode. UNI-7 User’s Manual...
Page 16: Adjustments
Accurate measurements cannot be performed if it is not installed horizontally. 1.5.2 OPERATION PANEL ANGLE ADJUSTMENT (BENCH TYPE) To obtain a better view, adjust the angle of the operation panel within the range between 0 and 70 degrees. UNI-7 User’s Manual...
Page 17: Label / Receipt Roll Loading
Before pulling out the cassette unit, ensure that nothing is placed on the weigh platter. Set a new roll around the roll holder and raise the roll stopper to fix the roll position. Thread the paper as shown in the figures below.. UNI-7 User’s Manual...
Page 18 For labels, fix the paper end with the backing paper stopper, and gently turn the winding bobbin counterclockwise until the label becomes tight. Slide the label/receipt guide to help smooth paper feeding according to the paper width. UNI-7 User’s Manual...
Page 19 For labels, press the [FEED] key on the key sheet to issue a label. At this time, confirm that the label is completely peeled off. Confirm that the backing paper is wound up smoothly. If the backing paper is wound up diagonally, check that the label is set correctly. UNI-7 User’s Manual...
Page 20: Removing & Replacing Of Weigh Platter
When replacing the weigh platter onto the main body, engage the two hooks at the rear side of the platter and lower the platter so that the two pins on the bottom of the platter are inserted into holes of the rubber platter holders. UNI-7 User’s Manual...
Page 21: Cleaning Of The Machine
CLEANING OF THE THEREMAL HEAD Pull out the cassette from the main body. Before pulling out the cassette unit, ensure that nothing is placed on the weigh platter. Use a cotton-tipped swab to clean off the thermal head. 1-10 UNI-7 User’s Manual...
Page 22: Cleaning Of The Label Sensor
Pull out the cassette from the main body. Before pulling out the cassette unit, ensure that nothing is placed on the weigh platter. Use a dry cloth to clean off the emitter and receiver of the label sensor. UNI-7 User’s Manual 1-11...
Page 23: Cleaning Of The Print Roller And Prism
CLEANING OF THE PRINT ROLLER AND PRISM Pull out the cassette from the main body. Before pulling out the cassette unit, ensure that nothing is placed on the weigh platter. Use a dry cloth to clean off the print roller and prism. 1-12 UNI-7 User’s Manual...
Page 24: Precautions When Using Cleaning Fluids
Do not give the victim anything to drink, and do not rinse the mouth. If vomiting occurs naturally, have the victim lean forward to reduce risk of aspiration. Keep the victim warm and seek medical attention. UNI-7 User’s Manual 1-13...
Page 25: Starting Procedures
Then, check that displayed date and time agree with current date and time, and press the [ENTER] button on the screen to proceed to the next step. Note: Refer to “Time/Date Set” menu in Adjust Mode when changing the date or time. 21-JUN-2007 11:13:38 After a while, the initial screen appears. 1-14 UNI-7 User’s Manual...
Page 26: 1.9.2 Performing Zero Adjustment
1.9.2 PERFORMING ZERO ADJUSTMENT If the weight value is not zero on the initial screen, Press the [ZERO] key on the key sheet to perform zero weight adjustment. The “ZERO” indicator lights up and the weight value becomes zero. UNI-7 User’s Manual 1-15...
Page 27: 1.9.3 Getting Back To The Initial Screen
1.9.3 GETTING BACK TO THE INITIAL SCREEN To get back to the initial screen from a Menu Select screen, press either the “SALES” field or the icon at the bottom right on the screen. The initial screen appears. 1-16 UNI-7 User’s Manual...
Page 28: Chapter 2 Label Issue
PLU No.6 “Roast Beef” When the product is preset as a traceable item, the traceability screen appears. See Chapter 4 for more details about traceability products. The selected PLU screen appears. Without Preset Tare Weight Uni-7 User’s Manual 2- 1...
Page 29 “TARE” field on the screen. EXAMPLE Tare weight “50g” See Chapter 5 for more details about temporary change operations. Put a product on the weigh platter. The weight is measured and the total price is calculated. Uni-7 User’s Manual...
Page 30 Press the [PRINT] key on the key sheet. The label is issued. Non-traceable products Traceable products When “AUTO” is set in the Print Mode, The label is automatically issued as soon as the weighing is stabilized. Non-traceable products Traceable products Uni-7 User’s Manual 2- 3...
Page 31: 2.1.2 Weighing Fixed Price Products
EXAMPLE PLU No.6 “Roast Beef” When the product is preset as a traceable item, the traceability screen appears. See Chapter 4 for more details about traceability products. The selected PLU screen appears. Without Preset Tare Weight Uni-7 User’s Manual...
Page 32 “TARE” field on the screen. EXAMPLE Tare weight “50g” See Chapter 5 for more details about temporary change operations. Put a product on the weigh platter. The weight is measured but the fixed price stays same. Uni-7 User’s Manual 2- 5...
Page 33 When “MANUAL” is set in the Print Mode, Press the [PRINT] key on the key sheet. Non-traceable products Traceable products When “AUTO” is set in the Print Mode, The label is automatically issued as soon as the weighing is stabilized. Non-traceable products Traceable products Uni-7 User’s Manual...
Page 34: 2.1.3 Processing Fixed Price Products
When the product is preset as a traceable item, the traceability screen appears. See Chapter 4 for more details about traceability products. The selected PLU screen appears. See Chapter 5 for more details about temporary change operations. Uni-7 User’s Manual 2- 7...
Page 35 Press the [PRINT] key on the key sheet to issue the labels. The label is issued. Non-traceable products Traceable products Remove the label. The next label is issued. Non-traceable products Traceable products Note: To stop printing, press the [PRINT] key again. Uni-7 User’s Manual...
Page 36: 2.1.4 Processing Fixed Weight/Fixed Unit Price Products
When the product is preset as a traceable item, the traceability screen appears. See Chapter 4 for more details about traceability products. The selected PLU screen appears. See Chapter 5 for more details about temporary change operations. Uni-7 User’s Manual 2- 9...
Page 37 Press the [PRINT] key on the key sheet to issue the labels. The label is issued. Non-traceable products Traceable products Remove the label. The next label is issued. Non-traceable products Traceable products Note: To stop printing, press the [PRINT] key again. 2-10 Uni-7 User’s Manual...
Page 38: Label Issue With Operators
When the product is preset as a traceable item, the traceability screen appears. See Chapter 4 for more details about traceability products. The selected product screen appears. Without Preset Tare Weight With Preset Tare Weight Uni-7 User’s Manual 2- 11...
Page 39 “TARE” field on the screen. EXAMPLE Tare weight “50g” See Chapter 5 for more details about temporary change operations. Put a product on the weigh platter. The weight is measured and the total price is calculated. 2-12 Uni-7 User’s Manual...
Page 40 Chapter 2 LABEL ISSUE Press a operator button on the screen to issue the label. EXAMPLE Operator “BETTY” The label is issued. Uni-7 User’s Manual 2- 13...
Page 41: 2.2.2 Weighing Fixed Price Products
EXAMPLE PLU No.6 “Roast Beef” When the product is preset as a traceable item, the traceability screen appears. See Chapter 4 for more details about traceability products. The selected product screen appears. Without Preset Tare Weight 2-14 Uni-7 User’s Manual...
Page 42 “TARE” field on the screen. EXAMPLE Tare weight “50g” See Chapter 5 for more details about temporary change operations. Put a product on the weigh platter. The weight is measured and the total price is calculated. Uni-7 User’s Manual 2- 15...
Page 43 Chapter 2 LABEL ISSUE Press a operator button on the screen to issue the label. EXAMPLE Operator “BETTY” The label is issued. 2-16 Uni-7 User’s Manual...
Page 44: 2.2.3 Processing Fixed Price Products
When the product is preset as a traceable item, the traceability screen appears. See Chapter 4 for more details about traceability products. The selected PLU screen appears. See Chapter 5 for more details about temporary change operations. Uni-7 User’s Manual 2- 17...
Page 45 Chapter 2 LABEL ISSUE Press a operator button on the screen to issue the label. EXAMPLE Operator “BETTY” The label is issued. 2-18 Uni-7 User’s Manual...
Page 46: 2.2.4 Processing Fixed Weight/Fixed Unit Price Products
When the product is preset as a traceable item, the traceability screen appears. See Chapter 4 for more details about traceability products. The selected PLU screen appears. See Chapter 5 for more details about temporary change operations. Uni-7 User’s Manual 2- 19...
Page 47 Enter the fixed weight using the numeric keys on the key sheet and press the “FIXED WEIGHT” field. EXAMPLE Fixed weight “858g” Press a operator button on the screen to issue the label. EXAMPLE Operator “BETTY” The label is issued. 2-20 Uni-7 User’s Manual...
Page 48: Chapter 3 Receipt Issue
Then, enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where a desired product is allocated. EXAMPLE Select PLU No.1 “Rib Steak”. Uni-7 User’s Manual 3- 1...
Page 49 Chapter 3 RECEIPT ISSUE The PLU screen appears. Weighing Unit Price PLU Put a product on the weigh platter. Press a button on the screen for the operator who has sold the product. EXAMPLE Select “Operator 002”. Uni-7 User’s Manual...
Page 50 Then, enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where a desired product is allocated. EXAMPLE Select PLU No.102 “Maine Lobster”. Uni-7 User’s Manual 3- 3...
Page 51 Press a button on the screen for the operator who has sold the product. EXAMPLE Select “Operator 002”. The subtotal for the selected operator is shown on the screen. Select a desired product category by pressing the corresponding field on the screen. EXAMPLE Select “Bakery” category. Uni-7 User’s Manual...
Page 52 EXAMPLE Select PLU No.201 “Live Wild Cherry Clam”. The PLU screen appears. Weighing Fixed Price PLU Put a product on the weigh platter. Uni-7 User’s Manual 3- 5...
Page 53 The PLU preset screen for the selected category appears. Then, enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where a desired product is allocated. Uni-7 User’s Manual...
Page 54 Select PLU No.4 “Pork Chops”. The PLU screen appears. Fixed Unit Price PLU Enter the weight using the numeric keys on the key sheet, and press the “Fixed Weight” field on the screen. EXAMPLE Weight “400g” Uni-7 User’s Manual 3- 7...
Page 55 The subtotal for the selected operator is shown on the screen. Press the subtotal field on the screen to display more detailed subtotal data. The detailed subtotal screen appears for confirmation of product registrations. Then, confirm that the detail of the transaction is correct. Uni-7 User’s Manual...
Page 56 Chapter 3 RECEIPT ISSUE Press the [PRINT] key on the key sheet to issue the receipt. Uni-7 User’s Manual 3- 9...
Page 57 Chapter 3 RECEIPT ISSUE The Subtotal screen appears for the settlement. 3-10 Uni-7 User’s Manual...
Page 58: Sales By Different Oprators
Then, enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where a desired product is allocated. EXAMPLE Select PLU No.1 “Rib Steak”. Uni-7 User’s Manual 3- 11...
Page 59 Chapter 3 RECEIPT ISSUE The PLU screen appears. Weighing Unit Price PLU Put a product on the weigh platter. Press a button on the screen for the operator who has sold the product. EXAMPLE Select “Operator 002”. 3-12 Uni-7 User’s Manual...
Page 60 Then, enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where a desired product is allocated. EXAMPLE Select PLU No.102 “Maine Lobster”. Uni-7 User’s Manual 3- 13...
Page 61 Select “Operator 002”. The subtotal for the selected operator is shown on the screen. EXAMPLE Product registration by “Operator 001” Select a desired product category by pressing the corresponding field on the screen. EXAMPLE Select “Bakery” category. 3-14 Uni-7 User’s Manual...
Page 62 EXAMPLE Select PLU No.201 “Live Wild Cherry Clam”. The PLU screen appears. Weighing Fixed Price PLU Put a product on the weigh platter. Uni-7 User’s Manual 3- 15...
Page 63 Select “Operator 001”. The subtotal for the selected operator is shown on the screen. EXAMPLE Product registration by “Operator 002” Select a desired product category by pressing the corresponding field on the screen. EXAMPLE Select “Meat” category. 3-16 Uni-7 User’s Manual...
Page 64 Select PLU No.4 “Pork Chops”. The PLU screen appears. Fixed Unit Price PLU Enter the weight using the numeric keys on the key sheet, and press the “Fixed Weight” field on the screen. EXAMPLE Weight “400g” Uni-7 User’s Manual 3- 17...
Page 65 The subtotal for the selected operator is shown on the screen. Press the subtotal field on the screen to display more detailed subtotal data. The detailed subtotal screen appears for confirmation of product registrations. Then, confirm that the detail of the transaction is correct. 3-18 Uni-7 User’s Manual...
Page 66 Chapter 3 RECEIPT ISSUE Press the [PRINT] key on the key sheet to issue the receipt. The Subtotal screen appears for the settlement. Uni-7 User’s Manual 3- 19...
Page 67 Then, enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where a desired product is allocated. EXAMPLE Select PLU No.3 “Round Steak”. 10-3 The PLU screen appears. Weighing Unit Price PLU 3-20 Uni-7 User’s Manual...
Page 68 Put a product on the weigh platter. 10-5 Press a button on the screen for the operator who has sold the product. EXAMPLE Select “Operator 001”. 10-6 The subtotal for the selected operator is shown on the screen. Uni-7 User’s Manual 3- 21...
Page 69 Receipt issue by “Operator 001” Press the subtotal field on the screen to display more detailed subtotal data. The Subtotal screen appears for confirmation of product registrations. Press the [PRINT] key on the key sheet to issue the receipt. 3-22 Uni-7 User’s Manual...
Page 70 Chapter 3 RECEIPT ISSUE The Subtotal screen appears for the settlement. Uni-7 User’s Manual 3- 23...
Page 71: Voiding Product Registration
Note: To scroll the selection up or down, press the [ ] or [ ] keys on the key sheet. Press the [VOID] button on the screen. The confirmation screen appears. Then, press the [EXEC] button for execution. 3-24 Uni-7 User’s Manual...
Page 72 Chapter 3 RECEIPT ISSUE The selected item has been voided. Press the [PRINT] key on the key sheet to issue the receipt. Deleted by a dashed line Uni-7 User’s Manual 3- 25...
Page 73 Chapter 3 RECEIPT ISSUE The Subtotal screen appears for the settlement. 3-26 Uni-7 User’s Manual...
Page 74: Chapter 4 Traceability Products
Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet, or simply press a preset key on the screen where the product is allocated. EXAMPLE PLU number “6”. When the product is preset as a traceable item, the Traceability screen appears. Uni-7 User’s Manual 4- 1...
Page 75 To refer to the previously processed traceability data, press the [LIST] button. The Traceability History screen appears. Then, press to select a desired data field. The selected data appears. Then, press the [SET] button. The selected PLU screen appears. Weighing Unit Price Products Uni-7 User’s Manual...
Page 76 Chapter 4 TRACEABILITY PRODUCTS Fixed Price Products Fixed Unit Price Products Weighing Fixed Price Products Uni-7 User’s Manual 4- 3...
Page 77: Changing Traceability Data
EXAMPLE PLU number “6”. When the product is preset as a traceable item, the Traceability screen appears. Then, confirm whether information on the screen is correct or not. When the data is correct, press the [SET] button. Uni-7 User’s Manual...
Page 78 If the data is not correct, press to select a desired data field. EXAMPLE Select “France”. EXAMPLE Change to “Argentina”. The data has been changed. To change the “FACTORY” data, press the corresponding field. Press to select a desired data field. Uni-7 User’s Manual 4- 5...
Page 79 The data has been changed. Then, press the [SET] button. When changing the lot data, press the “LOT” filed. The Traceability Lot Number Set screen appears. Change the lot number using the [ABC] [ERASE] and [BACK SPACE] buttons, and press the [BACK] button to finish. Uni-7 User’s Manual...
Page 80: Fixed Price Products
Chapter 4 TRACEABILITY PRODUCTS The confirmation screen appears. Then, press the [SAVE] button to save the data. The Traceability screen appears. Then, press the [SET] button. The selected PLU screen appears. Weighing Unit Price Products Fixed Price Products Uni-7 User’s Manual 4- 7...
Page 81 Chapter 4 TRACEABILITY PRODUCTS Fixed Unit Price Products Weighing Fixed Price Products Uni-7 User’s Manual...
Page 82: Chapter 5 Temporary Change Operations
Ensure that the selected PLU screen is displayed. Weighing Products Fixed Unit Price Products Enter a desired unit price using the numeric keys and press the “UNIT PRICE” or “FIXED UNIT PRICE” field. EXAMPLE “$3.80” Weighing Products Uni-7 User’s Manual 5- 1...
Page 83 Chapter 5 TEMPORARY CHANGE OPERATIONS Fixed Unit Price Products Uni-7 User’s Manual...
Page 84: Fixed Price Change
FIXED PRICE CHANGE Ensure that the selected PLU screen is displayed. Fixed Price Products Weighing Fixed Price Products Enter a desired price using the numeric keys, and press the “FIXED PRICE” field. EXAMPLE “$3.80” Fixed Price Products Uni-7 User’s Manual 5- 3...
Page 85 Chapter 5 TEMPORARY CHANGE OPERATIONS Weighing Fixed Price Products Uni-7 User’s Manual...
Page 86: Amount Discount For Unit Price
Ensure that the selected PLU screen is displayed. Weighing Unit Price Products Fixed Unit Price Products Enter a desired discount amount using the numeric keys, and press the “-$ (U/P)” field. EXAMPLE Discount amount “$1.00”. Weighing Unit Price Products Uni-7 User’s Manual 5- 5...
Page 87 Chapter 5 TEMPORARY CHANGE OPERATIONS Fixed Unit Price Products Uni-7 User’s Manual...
Page 88: Percent Discount For Unit Price
Ensure that the selected PLU screen is displayed. Weighing Unit Price Products Fixed Unit Price Products Enter a desired discount percentage using the numeric keys on the key sheet, and press the “-% (U/P)” field. EXAMPLE Discount percentage “10%”. Uni-7 User’s Manual 5- 7...
Page 89 Chapter 5 TEMPORARY CHANGE OPERATIONS Fixed Unit Price Products Uni-7 User’s Manual...
Page 90: Amount Discount For Total Price
Ensure that the selected PLU screen is displayed. Fixed Price Products Weighing Fixed Price Products Enter a desired discount amount using the numeric keys, and press the “-$” field. EXAMPLE Discount amount “$1.00”. Fixed Price Products Uni-7 User’s Manual 5- 9...
Page 91 Chapter 5 TEMPORARY CHANGE OPERATIONS Weighing Fixed Price Products 5-10 Uni-7 User’s Manual...
Page 92: Percent Discount For Total Price
Ensure that the selected PLU screen is displayed. Fixed Price Products Weighing Fixed Price Products Enter a desired discount percentage using the numeric keys on the key sheet, and press the “-%” field. EXAMPLE Discount percentage “10%”. Uni-7 User’s Manual 5- 11...
Page 93 Chapter 5 TEMPORARY CHANGE OPERATIONS Weighing Fixed Price Products 5-12 Uni-7 User’s Manual...
Page 94: Product Quantity Change
Ensure that the selected PLU screen is displayed. Fixed Price Products Enter a desired quantity using the numeric keys, and press the “PCS” field. EXAMPLE Quantity “2 pieces” To select a desired fix price mark, press the “PCS” field again. Uni-7 User’s Manual 5- 13...
Page 95 Chapter 5 TEMPORARY CHANGE OPERATIONS The Fix Price mark List screen appears. Then, select a desired mark by pressing the corresponding field. EXAMPLE Price mark “PC. PCS.” 5-14 Uni-7 User’s Manual...
Page 96: Print Quantity Setting
Press the [PRINT] key on the key sheet. The set number of labels will be issued. Note: To interrupt the issue of labels, press the [PRINT] key again. To continue the issue of labels, press the [PRINT] key again. Uni-7 User’s Manual 5- 15...
Page 97: Chapter 6 Self-Service Operations
Chapter 6 SELF-SERVICE OPERATIONS SELF-SERVICE OPERATIONS WEIGHING PRODUCTS Ensure that the initial screen is displayed. Select a desired product by pressing the corresponding button on the screen. EXAMPLE Select “Roast Beef” The selected product screen appears. Uni-7 User’s Manual 6- 1...
Page 98 Chapter 6 SELF-SERVICE OPERATIONS Put a product on the weigh platter. The weight is measured and the total price is calculated. Press the [LABEL PRINT] button on the screen to issue the label. The label is issued. Uni-7 User’s Manual...
Page 99: Fixed Price Products
Select a desired product by pressing the corresponding button on the screen. EXAMPLE Select “Roast Beef” The selected product screen appears. Then, press the [LABEL PRINT] button on the screen to issue the label. The label is issued. Uni-7 User’s Manual 6- 3...
Page 100: Chapter 7 Accumulator Mode
The Accumulator (Input Number Accumulation) screen appears. Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”. The Input Number Accumulation screen for the selected product appears. Uni-7 User’s Manual 7- 1...
Page 101 Then, press the [ACC] button on the screen. EXAMPLE Quantity “1 pc.”, Weight “169g”, Price “$0.84” The confirmation screen appears. Then, press the [EXEC] button on the screen. The registration has been completed. Uni-7 User’s Manual...
Page 102: Weighing Accumulation
Chapter 7 ACCUMULATOR MODE WEIGHING ACCUMULATION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “ACC (Accumulator)” filed. To get the Weighing Accumulation screen, press the [WGT. ACC] tab. Uni-7 User’s Manual 7- 3...
Page 103 PLU number “6”. The Weighing Accumulation screen for the selected product appears. Put a product on the weigh platter and press the [ACC] button on the screen.. The confirmation screen appears. Then, press the [EXEC] button on the screen. Uni-7 User’s Manual...
Page 104 Chapter 7 ACCUMULATOR MODE Remove the product from the weigh platter. Uni-7 User’s Manual 7- 5...
Page 105: Manual Input Void
Chapter 7 ACCUMULATOR MODE MANUAL INPUT VOID To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “ACC (Accumulator)” filed. To get the Input Number Void screen, press the [NUM. VOID] tab. Uni-7 User’s Manual...
Page 106 Enter a quantity, weight, and price that are to be voided and press the corresponding fields for registration. Then, press the [VOID] button on the screen. EXAMPLE Quantity “1 pc.”, Weight “169g”, Price “$0.84” The confirmation screen appears. Then, press the [EXEC] button on the screen. Uni-7 User’s Manual 7- 7...
Page 107 Chapter 7 ACCUMULATOR MODE The registration has been completed. Uni-7 User’s Manual...
Page 108: Weighing Void
Chapter 7 ACCUMULATOR MODE WEIGHING VOID To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “ACC (Accumulator)” filed. To get the Weighing Void screen, press the [WGT. VOID] tab. Uni-7 User’s Manual 7- 9...
Page 109 The Weighing Void screen for the selected product appears. Put a product on the weigh platter and press the [VOID] button on the screen.. The confirmation screen appears. Then, press the [EXEC] button on the screen. 7-10 Uni-7 User’s Manual...
Page 110 Chapter 7 ACCUMULATOR MODE Remove the product from the weigh platter. Uni-7 User’s Manual 7- 11...
Page 111: Chapter 8 Total Adjust Mode
Then, press the “TOTAL ADJUST” filed. Enter a desired PLU number and press the [PLU] key on the key sheet. EXAMPLE PLU number “6”. The Total Adjust (Input Number Subtraction) screen for the selected product appears. Uni-7 User’s Manual 8- 1...
Page 112 Enter a quantity, weight, and price that are to be subtracted and press the corresponding fields for registration. Then, press the [SUB] button on the screen. EXAMPLE Quantity “1 pc.”, Weight “169g”, Price “$0.84” The confirmation screen appears. Then, press the [EXEC] button on the screen. The registration has been completed. Uni-7 User’s Manual...
Page 113: Weighing Subtraction
WEIGHING SUBTRACTION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “TOTAL ADJUST” filed. To get the Total Adjust (Weighing Subtraction) screen, press the [WGT. SUB] tab. Uni-7 User’s Manual 8- 3...
Page 114 The Total Adjust (Weighing Subtraction) screen for the selected product appears. Put a product on the weigh platter and press the [SUB] button on the screen.. The confirmation screen appears. Then, press the [EXEC] button on the screen. Uni-7 User’s Manual...
Page 115 Chapter 8 TOTAL ADJUST MODE Remove the product from the weigh platter. Uni-7 User’s Manual 8- 5...
Page 116: Manual Input Addition
MANUAL INPUT ADDITION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “TOTAL ADJUST” filed. To get the Total Adjust (Input Number Addition) screen, press the [NUM. ADD] tab. Uni-7 User’s Manual...
Page 117 Enter a quantity, weight, and price that are to beaded and press the corresponding fields for registration. Then, press the [ADD] button on the screen. EXAMPLE Quantity “1 pc.”, Weight “169g”, Price “$0.84” The confirmation screen appears. Then, press the [EXEC] button on the screen. Uni-7 User’s Manual 8- 7...
Page 118 Chapter 8 TOTAL ADJUST MODE The registration has been completed. Uni-7 User’s Manual...
Page 119: Weighing Addition
WEIGHING ADDITION To get the Operation Menu Select screen, press the [MODE] key on the key sheet. Then, press the “TOTAL ADJUST” filed. To get the Total Adjust (Weighing Add) screen, press the [WGT. ADD] tab. Uni-7 User’s Manual 8- 9...
Page 120 The Total Adjust (Weighing Add) screen for the selected product appears. Put a product on the weigh platter and press the [ADD] button on the screen.. The confirmation screen appears. Then, press the [EXEC] button on the screen. 8-10 Uni-7 User’s Manual...
Page 121 Chapter 8 TOTAL ADJUST MODE Remove the product from the weigh platter. Uni-7 User’s Manual 8- 11...
Page 122: Chapter 9 Total Mode
Press the “PRODUCTION DAILY TOTAL” filed. The Daily Total screen appears. To obtain the Hourly Total screen, press the [HOUR.] tab. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual 9- 1...
Page 123 To change the pages, press the [ ] or [ ] button on the screen. To obtain the Designated Item Total screen, press the [ITEM] tab. Enter a desired PLU number using the numeric keys and press the [PLU] key on the key sheet. Uni-7 User’s Manual...
Page 124 ABC PCS Analysis is performed in descending quantity order. Z PRICE Analysis is performed in ascending price order. Z WEIGHT Analysis is performed in ascending weight order. Z PCS Analysis is performed in ascending quantity order. Uni-7 User’s Manual 9- 3...
Page 125: Weekly Total
To change the pages, press the [ ] or [ ] button on the screen. To obtain total for the day-of-the week, press a desired day-of-the week tab. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual...
Page 126 Chapter 9 TOTAL MODE Uni-7 User’s Manual 9- 5...
Page 127: Cumulative Total
To change the pages, press the [ ] or [ ] button on the screen. To obtain total for each group, press the [GROUP] tab on the screen. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual...
Page 128 ABC PCS Analysis is performed in descending quantity order. Z PRICE Analysis is performed in ascending price order. Z WEIGHT Analysis is performed in ascending weight order. Z PCS Analysis is performed in ascending quantity order. Uni-7 User’s Manual 9- 7...
Page 129: Traceability Total
The Traceability Item screen appears. To change the pages, press the [ ] or [ ] button on the screen. To obtain Traceability Total screen, press the [DETAIL] button on the screen. The Traceability Total screen appears. Uni-7 User’s Manual...
Page 130: Preset Report Printing
Chapter 9 TOTAL MODE PRESET REPORT PRINTING Press the “PRESET REPORT” filed. The Preset Report screen appears. Select desired reports by pressing the corresponding fields. Press the [STRAT] button to issue selected join reports. Uni-7 User’s Manual 9- 9...
Page 131: Total Clear
The second page of the Menu Select screen appears. To obtain the Total Clear screen, press the “TOTAL CLEAR” field on the screen. The Total Clear screen appears. Select desired reports to be cleared by pressing the corresponding fields. 9-10 Uni-7 User’s Manual...
Page 132 Chapter 9 TOTAL MODE Press the [EXEC] button. The confirmation screen appears. Then, press the [EXEC] button on the screen for execution. Uni-7 User’s Manual 9- 11...
Page 133: Chapter 10 Program Mode
Press the [MODE] key on the key sheet. The Operation Menu Select screen appears. Then, press the [PROGRAM] button on the screen. The Program Menu Select screen appears. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual 10-1...
Page 134 Chapter 10 PROGRAM MODE 10-2 Uni-7 User’s Manual...
Page 135 Chapter 10 PROGRAM MODE Note: To exit the Program Mode, press the [ESC] (Escape) key on the key sheet. Uni-7 User’s Manual 10-3...
Page 136: Plu File Registration
To change the pages, press the [ ] or [ ] button on the screen Press to select a desired field. Then, press the [DETAIL] button on the screen. EXAMPLE Select “Roast Beef”. The Item Detail screen appears. To edit the PLU name, press the [EDIT] button on the screen. 10-4 Uni-7 User’s Manual...
Page 137 Edit a text according to the procedure explained in Appendix “Text Editing”. Ensure that the first sales related screen is displayed. Sales Mode: Weighing Product Sales Mode: Fixed Price Product Sales Mode: Weighing Fixed Price Product Uni-7 User’s Manual 10-5...
Page 138 Enter a fixed weight, and press this field. Enter a tare weight, and press this field. TARE UNDER WEIGHT Enter a lower weight limit, and press this field. Enter a upper weight limit, and press this field. UPPER WEIGHT 10-6 Uni-7 User’s Manual...
Page 139 POINT 0: Weight TYPE 1: Fixed weight POINTS Enter a desired number and press this field Press the [MESSAGE] tab to select the message related screen. Press to select a desired field. EXAMPLE “Extra Message 1”. Uni-7 User’s Manual 10-7...
Page 140 The Extra Message List screen appears. Then, press to select a desired field. EXAMPLE “Extra Message BB”. Press the [IMAGE] tab to select the image related screen. Press to select a desired field. EXAMPLE Select a desired image for “Image 1”. 10-8 Uni-7 User’s Manual...
Page 141 Select “Image No.8”. Select whether or not to print Safe handling Image by pressing a desired field. 11-1 Press the [PRINT] tab to select the print related screen. 11-2 Press the [First Label Format No.] button. Uni-7 User’s Manual 10-9...
Page 142 Press the [<] or [>] button to select whether or not to print the SECOND LABEL second labels. PRINT 1: YES 2: NO Note: The same procedure applies to the Second Label Format Number setting . 10-10 Uni-7 User’s Manual...
Page 143 Select whether or not to print the Use-By Date. UB DATE PRINT This field is available only when “Yes” is selected in “UB DATE UB DATE DATA PRINT”. Enter the number of hours and press this field Uni-7 User’s Manual 10-11...
Page 144 Press this field to get the Barcode Type screen and press to select one of the PLU types. BARCODE TYPE Press this field to get the Barcode Format screen and press to select one of the barcode formats. POS FORMAT 10-12 Uni-7 User’s Manual...
Page 145 “Department No.” field after a numeric entry. Pressing this field displays the Group List. Set the desired group simply by pressing the field on the list, or GROUP No. pressing the “Group No.” field after a numeric entry. Uni-7 User’s Manual 10-13...
Page 146: Campaign List Registration
To change the pages, press the [ ] or [ ] button on the screen. Create a new campaign file by entering a campaign number and pressing the [PLU] key on the key sheet. EXAMPLE Campaign number “2”. The confirmation screen appears. Then, press the [ENTER] button. 10-14 Uni-7 User’s Manual...
Page 147 The designated Campaign Data List screen appears. Enter the campaign start date and press the “Start Date” display field. . EXAMPLE Start date "June 25, 2007” Enter the start time and press the “Start Time” display field. . EXAMPLE Start time "08:00” Uni-7 User’s Manual 10-15...
Page 148 Enter the campaign end date and press the “End Date” display field. . EXAMPLE End date "June 27, 2007” Enter the end time and press the “End Time” display field. EXAMPLE End time "21:00” Press the [CALL] button to call up Item List screens 10-16 Uni-7 User’s Manual...
Page 149 EXAMPLE PLU number “4” The Campaign Data List screen appears. Then, press the [CALL] button again when selecting the next item. The pop-up list appears. Then, press to select a desired field. EXAMPLE Percent discount “-%” Uni-7 User’s Manual 10-17...
Page 150 Chapter 10 PROGRAM MODE Enter a numeric value and press the “Markdown Price” field for registration. EXAMPLE Repeat steps 9 through 12 for further registration. Then, press the Return button to finalize this procedure. The Campaign List screen appears. 10-18 Uni-7 User’s Manual...
Page 151: Operator Registration
Press the "OPERATORS” field on the Program Menu Select screen. The Operator List screen appears. To create a new operator, enter the operator number and press the [PLU] key on the key sheet. EXAMPLE Operator number “7”. The confirmation screen appears. Press the [ENTER] button. Uni-7 User’s Manual 10-19...
Page 152 Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button to save the data. 10-20 Uni-7 User’s Manual...
Page 153 Chapter 10 PROGRAM MODE The edited text has been registered. Press the Return button to finalize this procedure. Uni-7 User’s Manual 10-21...
Page 154: Preset Key Registration
SETTING PRESET FUNCTIONS Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Ensure that the [SET] button is selected. Press a desired button to which a preset function will be assigned. 10-22 Uni-7 User’s Manual...
Page 155 Chapter 10 PROGRAM MODE Available functions are listed on the screens. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual 10-23...
Page 156 Press to select the desired function on the list, and press the [SET] button. EXAMPLE Select PLU function. The Item List screen appears. Then, press to select a desired field. EXAMPLE Select PLU No.2. The selected PLU has been assigned. Repeat steps 4 through 8 for more registrations. 10-24 Uni-7 User’s Manual...
Page 157: Assigning Images On The Preset Keys
ASSIGNING IMAGES ON THE PRESET KEYS Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press the [IMAGE] button. Press a desired preset key where the function is already assigned. EXAMPLE Select “Roast Beef” Uni-7 User’s Manual 10-25...
Page 158 Chapter 10 PROGRAM MODE The Image List screen appears. Press to select a desired image. EXAMPLE Image No.3 The image has been assigned. Repeat steps 4 through 7 for more registrations. 10-26 Uni-7 User’s Manual...
Page 159: Coloring Preset Keys
Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press the [COLOR] button. Then, ensure that “Back Color” is selected. Press to select a desired preset key. EXAMPLE Select “Roast Beef” Uni-7 User’s Manual 10-27...
Page 160 The Preset Key (Color) screen appears. Then, press to select a desired color. Selected color has been given to the background of the key. Press the [BACK COLOR] button to change to the [FORE COLOR] button. Press to select a desired preset key. EXAMPLE Select “Roast Beef” 10-28 Uni-7 User’s Manual...
Page 161 Chapter 10 PROGRAM MODE The Preset Key (Color) screen appears. Then, press to select a desired color. Selected color has been given to the foreground of the key. Repeat steps 4 through 10 for more registrations. Uni-7 User’s Manual 10-29...
Page 162: Changing Preset Key Sizes
CHANGING PRESET KEY SIZES Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press the [SIZE] button, and ensure that “SMALL” is selected. Press the [SMALL] button to change to the [MIDDLE] button. 10-30 Uni-7 User’s Manual...
Page 163 Press the [MIDDLE] button to change to the [LARGE] button. Change the size of a desired key. EXAMPLE Change to the middle size of the “Roast Beef” key. Ensure that the [MIDDLE] button is selected. Press the “Roast Beef” key. Uni-7 User’s Manual 10-31...
Page 164 Change the size of a desired key. EXAMPLE Change to the large size of the “Roast Beef” key. Ensure that the [LARGE] button is selected. Press the “Roast Beef” key. Repeat steps 3 through 4-2 for more registrations. 10-32 Uni-7 User’s Manual...
Page 165: Editing Preset Key Names
EDITING PRESET KEY NAMES Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press to select the [EDIT] button. Press to select a desired preset key. EXAMPLE Select the [Roast Beef] key. Uni-7 User’s Manual 10-33...
Page 166 Edit a desired text according to the procedures described in Appendix “Text Editing”. EXAMPLE “Beef Fillet”. To finalize the editing, press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. 10-34 Uni-7 User’s Manual...
Page 167 Chapter 10 PROGRAM MODE The edited text has been registered. Repeat steps 4 through 8 for more registrations. Uni-7 User’s Manual 10-35...
Page 168: Confirming Preset Key Data
Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Press to select the [DATA] button. Press a desired preset key. The related data is displayed on the button. EXAMPLE “Beef Fillet” and the PLU No.6 10-36 Uni-7 User’s Manual...
Page 169: Deleting Preset Keys
The Preset Key (Panel) screen appears. Ensure that the [SET] button is selected. Press a desired preset key to be deleted. EXAMPLE Delete the [Roast Beef] key”. The Function List screen appears, and the assigned function field is highlighted. Uni-7 User’s Manual 10-37...
Page 170 Chapter 10 PROGRAM MODE Press to select the “NO” field, and press the [SET] button. The selected key has been deleted. Repeat steps 3 through 6 for more deletions. 10-38 Uni-7 User’s Manual...
Page 171: Membrane Keys
Press the “PRESET KEY” field on the screen. The Preset Key (Panel) screen appears. Then, press the [MEMBRANE] tab. The Preset Key (Membrane) screen appears. Press to select a desired membrane key to which the preset data is assigned. Uni-7 User’s Manual 10-39...
Page 172 The Function List screen appears. Select a desired function to be assigned by pressing the corresponding field, and press the [SET] button. EXAMPLE Select “PLU” The Item List screen appears. Then, press to select a desired field. EXAMPLE PLU No.5 10-40 Uni-7 User’s Manual...
Page 173 Chapter 10 PROGRAM MODE The selected PLU has been assigned to the selected membrane key. Uni-7 User’s Manual 10-41...
Page 174: Advertisement Message Registration
When creating a message other than the first one, enter a desired message number using the numeric keys and press the [PLU] key on the key sheet. XAMPLE Message number “2”. The confirmation screen appears. Then, press the [ENTER] button. 10-42 Uni-7 User’s Manual...
Page 175 Edit a desired message according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button to save the data. Uni-7 User’s Manual 10-43...
Page 176 0: Fast SPEED 1: Medium 2: Slow DISPLAY COUNT Enter a display count data and press this field. Press the [IMAGE] tab. Then, the Advertisement Message (Image) screen appears. When setting an image, press a desired field. 10-44 Uni-7 User’s Manual...
Page 177 Press to select a desired field and press the [SET] button. The selected image has been assigned in the designated field. Repeat steps 7 through 9 for more registrations. Then, press the Return button to finalize this procedure. The edited message has been registered. Uni-7 User’s Manual 10-45...
Page 178: Store Name Registration
Press the “STORE NAME” field on the Program Menu Select screen. The default store data screen appears. When changing the store data, press the [EDIT] button. The Store Name Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. 10-46 Uni-7 User’s Manual...
Page 179 The store name has been changed. Press to select the address field line and press the [EDIT] button. The Store Address Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Uni-7 User’s Manual 10-47...
Page 180 Chapter 10 PROGRAM MODE Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The store address has been changed. 10-48 Uni-7 User’s Manual...
Page 181: Creating New Store Data
Press the “STORE NAME” field on the Program Menu Select screen. The default store data screen appears. When creating a new store data, enter the desired store number and press the [PLU] key. EXAMPLE Store number “1” The confirmation screen appears. Then, press the [ENTER] button. Uni-7 User’s Manual 10-49...
Page 182 Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The store name has been registered 10-50 Uni-7 User’s Manual...
Page 183 The Store Address Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. Uni-7 User’s Manual 10-51...
Page 184 Chapter 10 PROGRAM MODE The store address has been registered. Enter a desired store number as a default store data and press the “Printer 1” or “Printer 2” display field. EXAMPLE Set the store number “1” for printer #1. 10-52 Uni-7 User’s Manual...
Page 185: Department Name Registration
CREATING NEW DEPARTMENT NAMES Press the "Department” field on the Program Menu Select screen. The Department List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Department Name Edit screen appears. Uni-7 User’s Manual 10-53...
Page 186 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When creating more department names, enter a desired department number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Department number “2”. 10-54 Uni-7 User’s Manual...
Page 187 The Department Name Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. Uni-7 User’s Manual 10-55...
Page 188 Chapter 10 PROGRAM MODE The edited text has been registered. Repeat steps 8 through 12 for more registrations. 10-56 Uni-7 User’s Manual...
Page 189: Changing Exisiting Department Names
Press the "Department” field on the Program Menu Select screen. The Department List screen appears. When changing an existing data, press to select a desired field. The Department Name Edit screen appears for the selected department. Uni-7 User’s Manual 10-57...
Page 190 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 3 through 7 for more registrations. 10-58 Uni-7 User’s Manual...
Page 191: Group Name Registration
CREATING NEW GROUP NAMES Press the "Group” field on the Program Menu Select screen. The Group List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Group Name Edit screen appears. Uni-7 User’s Manual 10-59...
Page 192 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When creating more group names, enter a desired group number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Group number “2”. 10-60 Uni-7 User’s Manual...
Page 193 Chapter 10 PROGRAM MODE The confirmation screen appears. Then, press the [ENTER] button. The Group Name Edit screen appears. Repeat steps 5 through 9 for more registrations. Uni-7 User’s Manual 10-61...
Page 194: Changing Exisiting Group Names
CHANGING EXISITING GROUP NAMES Press the "Group” field on the Program Menu Select screen. The Group List screen appears. When changing an existing data, press to select a desired field. The Group Edit screen appears for the selected group 10-62 Uni-7 User’s Manual...
Page 195 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 3 through 7 for more registrations. Uni-7 User’s Manual 10-63...
Page 196: Cooking Instruction Registration
Press the "Cooking Instruction” field on the Program Menu Select screen. The Cooking Time List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Cooking Time Edit screen appears. 10-64 Uni-7 User’s Manual...
Page 197 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Enter a numeric value for each filed using the numeric keys and press the corresponding field for registration. EXAMPLE Base time “35 minutes” Uni-7 User’s Manual 10-65...
Page 198 [PLU] key on the key sheet. EXAMPLE Cooking instruction number “2”. The confirmation screen appears. Then, press the [ENTER] button. The Cooking Time Edit screen appears. Repeat steps 5 through 10 for more registrations. 10-66 Uni-7 User’s Manual...
Page 199: Changing Exisiting Instructions
Press the "Cooking Instruction” field on the Program Menu Select screen. The Cooking Time List screen appears. When changing an existing data, press to select a desired field and press the [DETAIL] button. The Cooking Time Edit screen appears for the selected instruction Uni-7 User’s Manual 10-67...
Page 200 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 3 through 7 for more registrations. 10-68 Uni-7 User’s Manual...
Page 201: Nutrition File Reigistration
The Nutrition List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Nutrition Data Programming screen for the selected nutrition number appears. When creating a text for “Serving Size”, press the [EDIT] button. Uni-7 User’s Manual 10-69...
Page 202 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Then, enter a nutrition data for each field using the numeric keys and press the corresponding field for registration. 10-70 Uni-7 User’s Manual...
Page 203 When creating more nutrition data, enter a desired nutrition number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Nutrition number “2”. The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 9 for more registrations. Uni-7 User’s Manual 10-71...
Page 204: Changing Existing Nutrition Data
Press the "Nutrition (USA)” field on the Program Menu Select screen. The Nutrition List screen appears. Select a desired nutrition number. EXAMPLE Nutrition number “2”. or press the [PLU] key on the key sheet after a numeric entry. 10-72 Uni-7 User’s Manual...
Page 205 The Nutrition Data Programming screen for the selected nutrition number appears. When changing a text for “Serving Size”, press the [EDIT] button. The Nutrition Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Uni-7 User’s Manual 10-73...
Page 206 The edited text has been registered. When necessary, enter a nutrition data for each field using the numeric keys and press the corresponding field for registration. Press the Return button after making necessary changes. Repeat steps 3 through 10 for more registrations. 10-74 Uni-7 User’s Manual...
Page 207: Extra Message Registration
Press the "Extra Message” field on the Program Menu Select screen. The Extra Message List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Extra Message Edit screen appears. Uni-7 User’s Manual 10-75...
Page 208 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When creating more messages, enter a desired message number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Message number “2”. 10-76 Uni-7 User’s Manual...
Page 209 Chapter 10 PROGRAM MODE The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 8 for more registrations. Uni-7 User’s Manual 10-77...
Page 210: Changing Exisiting Messages
Press the "Extra Message” field on the Program Menu Select screen. The Extra Message List screen appears. Select a desired message number. EXAMPLE Message number “2”. Press a desired field, or press the [PLU] key on the key sheet after a numeric entry. 10-78 Uni-7 User’s Manual...
Page 211 Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. Repeat steps 3 through 7 for more registrations. Uni-7 User’s Manual 10-79...
Page 212: Coupon Message Registration
Press the "Coupon Message” field on the Program Menu Select screen. The Coupon Message List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Coupon Message Edit screen appears. 10-80 Uni-7 User’s Manual...
Page 213 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When creating more messages, enter a desired message number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Message number “2”. Uni-7 User’s Manual 10-81...
Page 214 Chapter 10 PROGRAM MODE The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 8 for more registrations. 10-82 Uni-7 User’s Manual...
Page 215: Changing Exisiting Messages
Press the "Extra Message” field on the Program Menu Select screen. The Coupon Message List screen appears. Select a desired message number. EXAMPLE Message number “2”. Press a desired field, or press the [PLU] key on the key sheet after a numeric entry. Uni-7 User’s Manual 10-83...
Page 216 Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. Repeat steps 3 through 7 for more registrations. 10-84 Uni-7 User’s Manual...
Page 217: Pop Message Registration
Press the "POP Message” field on the Program Menu Select screen. The message list screen appears. Enter a desired message number and press the [PLU] key on the key sheet. EXAMPLE Message number “7”. The confirmation screen appears. Then, press the [ENTER] button. Uni-7 User’s Manual 10-85...
Page 218 P Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 3 through 6 for more registrations. 10-86 Uni-7 User’s Manual...
Page 219: Tax Registration
When changing a tax system, press to select a desired field. ITEM DESCRIPTION TAX TYPE Press to select one of tax types. Exclusive tax Inclusive tax Tax exemption TAX RATE Enter a numeric value and press this field. Uni-7 User’s Manual 10-87...
Page 220: Scheme Table Registration
Press the "Scheme Table” field on the Program Menu Select screen. The Scheme Table screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Scheme Table Detail (Basic) screen appears. Then, press the [EDIT] button. 10-88 Uni-7 User’s Manual...
Page 221 Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Uni-7 User’s Manual 10-89...
Page 222 Enter a numeric value and press the corresponding field. WEIGHT Enter a numeric value and press the corresponding field. PASSPORT LOT START Enter a numeric value and press this field. PASSPORT GTIN START Enter a numeric value and press this field. 10-90 Uni-7 User’s Manual...
Page 223 When creating more tables, enter a desired table number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Table number “2”. The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 9 for more registrations. Uni-7 User’s Manual 10-91...
Page 224: Changing Exisiting Messages
Press the "Scheme Table” field on the Program Menu Select screen. The Scheme Table screen appears. Select a desired table number by pressing the corresponding field. EXAMPLE Table number “2”. or press the [PLU] key on the key sheet after a numeric entry. 10-92 Uni-7 User’s Manual...
Page 225 Press to select whether or not to control the weight limit. 0: No 1: Yes DATE LIMIT CONTROL Press to select whether or not to control the date limit. 0: No 1: Yes LOSS % Enter a numeric value and press this field Uni-7 User’s Manual 10-93...
Page 226 PASSPORT LOT START Enter a numeric value and press this field. PASSPORT GTIN START Enter a numeric value and press this field. When changing the table name, press the [EDIT] button. The Scheme Table Edit screen appears. 10-94 Uni-7 User’s Manual...
Page 227 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Then, press the Return button. The Scheme Table screen appears. Repeat steps 3 through 11 for more registrations. Uni-7 User’s Manual 10-95...
Page 228: Gen Table Registration
GEN TABLE REGISTRATION Press the "GEN Table” field on the Program Menu Select screen. The GEN Table screen appears. Select a desired GEN table by pressing the corresponding field. Enter a numeric value and press the corresponding field. 10-96 Uni-7 User’s Manual...
Page 229 The GEN Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. Uni-7 User’s Manual 10-97...
Page 230 Chapter 10 PROGRAM MODE The edited text has been registered. Repeat steps 3 through 9 for more registrations. 10-98 Uni-7 User’s Manual...
Page 231: Lookup Table Registration
Press the "Lookup Table” field on the Program Menu Select screen. The Lookup Table screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Lookup Table Data List screen appears. Then, press the [EDIT] button. Uni-7 User’s Manual 10-99...
Page 232 Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Then, press the [NEW] button. 10-100 Uni-7 User’s Manual...
Page 233 The Lookup Data Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. Uni-7 User’s Manual 10-101...
Page 234 When registering the next data text, enter the data number and press the [PLU] key on the key sheet. EXAMPLE Data number “2”. The confirmation screen appears. Then, press the [ENTER] button. The Lookup Data Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. 10-102 Uni-7 User’s Manual...
Page 235 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 14 through 18 for more data registrations. Press the Return button to return to the Lookup Table screen. The Lookup Table screen appears. Uni-7 User’s Manual 10-103...
Page 236 The confirmation screen appears. Then, press the [ENTER] button. The Lookup Table Data List screen appears. Then, press the [EDIT] button. The Lookup Header Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. 10-104 Uni-7 User’s Manual...
Page 237 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Then, press the Return button. The Lookup Table screen appears Repeat steps 22 through 28 for more header registrations. Uni-7 User’s Manual 10-105...
Page 238: Changing Exisiting Tables
Press the "Lookup Table” field on the Program Menu Select screen. The Lookup Table screen appears. Select a desired header table by pressing the corresponding field. EXAMPLE Table number “2”. or press the [PLU] key on the key sheet after a numeric entry. 10-106 Uni-7 User’s Manual...
Page 239 Press the [DETAIL] button. The Lookup Table Data List screen appears. When changing the header name, press the [EDIT] button The Lookup Header Table Edit screen appears. Edit a text according to the procedures described in Appendix “Text Editing”. Uni-7 User’s Manual 10-107...
Page 240 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. When changing the data text, select a desired data text by pressing the corresponding field. and press the [DETAIL] button. The Lookup Data Table Edit screen appears. 10-108 Uni-7 User’s Manual...
Page 241 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 10 through 14 for more data text registrations. Repeat steps 3 through 15 for more header table text registrations. Uni-7 User’s Manual 10-109...
Page 242: Mince Traceability Registration
Press the "Mince Traceability” field on the Program Menu Select screen. The Mince Traceability screen appears. Enter a numeric value and press the corresponding field for registration. Then, press the Return button to finalize this procedure. 10-110 Uni-7 User’s Manual...
Page 243: Fixed Price Mark Registration
The Fix Price Mark List screen appears. Enter a desired mark number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Mark number “6”. The confirmation screen appears. Then, press the [ENTER] button. Uni-7 User’s Manual 10-111...
Page 244 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. To finalize this procedure, press the Return button. 10-112 Uni-7 User’s Manual...
Page 245: Changing Exisiting Price Marks
Press the "Fixed Mark” field on the Program Menu Select screen. Select a desired mark number by pressing the corresponding field. EXAMPLE Mark number “2”. or press the [PLU] key on the key sheet after a numeric entry. The Fix Price Mark Edit screen appears. Uni-7 User’s Manual 10-113...
Page 246 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 2 through 6 for more registrations. 10-114 Uni-7 User’s Manual...
Page 247: Free Message Registration
Press the "Free” field on the Program Menu Select screen. The Free Message List screen appears. Then, press the [NEW] button. The confirmation screen appears. Then, press the [ENTER] button. The Free Message Edit screen appears. Uni-7 User’s Manual 10-115...
Page 248 The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Enter a desired message number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Message number “2”. 10-116 Uni-7 User’s Manual...
Page 249 Enter a desired message number using the numeric keys and press the [PLU] key on the key sheet. EXAMPLE Message number “2”. The confirmation screen appears. Then, press the [ENTER] button. Repeat steps 4 through 8 for more registrations. Uni-7 User’s Manual 10-117...
Page 250: Changing Exisiting Messages
Press the "Fixed Mark” field on the Program Menu Select screen. The Free Message List screen appears. Select a desired message number by pressing the corresponding field. EXAMPLE Message number “2”. or press the [PLU] key on the key sheet after a numeric entry. 10-118 Uni-7 User’s Manual...
Page 251 Press the [ESC] key on the key sheet to escape from text editing mode. The confirmation screen appears. Then, press the [SAVE] button. The edited text has been registered. Repeat steps 3 through 7 for more registrations. Uni-7 User’s Manual 10-119...
Page 252: Check Label Registration
CHECK LABEL REGISTRATION Press the "Check Label” field on the Program Menu Select screen. The Check Label screen appears. Enter Start Number and End Number using the numeric keys and press the corresponding fields for registration. 10-120 Uni-7 User’s Manual...
Page 253 Chapter 10 PROGRAM MODE Press the [STRAT] button to print the labels. Uni-7 User’s Manual 10-121...
Page 254: Chapter 11 Setup Mode
Press the [MODE] key on the key sheet. The Operation Mode screen appears. Then, press the [SETUP] button on the screen The Setup Menu Select screen appears. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual 11-1...
Page 255 Chapter 11 SETUP MODE 11-2 Uni-7 User’s Manual...
Page 256: Machine Number Setting
Press the “MACHINE No.” field on the Setup Menu Select screen. The Machine Number (Basis) screen appears. Enter a desired numeric value and press the “Dept No.” field. EXAMPLE Dept number “9” The confirmation screen appears. Then, press the [EXEC] button to continue. Uni-7 User’s Manual 11-3...
Page 257: Sales Mode Setting
Chapter 11 SETUP MODE 11.3 SALES MODE SETTING Press the “Sales Mode” field on the Setup Menu Select screen. The Sales Mode screen appears. Select a desired mode by pressing the correponding button. EXAMPLE “Self-service Mode” 11-4 Uni-7 User’s Manual...
Page 258: Password Setting
To change the pages, press the [ ] or [ ] button on the screen. Press the [TOTAL] tab to display the Password (Total) screen. To change the pages, press the [ ] or [ ] button on the screen. Uni-7 User’s Manual 11-5...
Page 259 Chapter 11 SETUP MODE Press the [PROGRAM] tab to display the Password (Program) screen. To change the pages, press the [ ] or [ ] button on the screen. 11-6 Uni-7 User’s Manual...
Page 260 Chapter 11 SETUP MODE Uni-7 User’s Manual 11-7...
Page 261 To change the pages, press the [ ] or [ ] button on the screen. Press the [ADJUST] tab to display the Password (Adjust) screen. Enter a 6-digit password using the numeric keys and press the [PASSWORD] display field on the screen. EXAMPLE Password “999999” 11-8 Uni-7 User’s Manual...
Page 262 Chapter 11 SETUP MODE Press desired buttons to set whether or not to use the password. EXAMPLE Set to apply the password to “Virtual Receipt” in Total Mode. Uni-7 User’s Manual 11-9...
Page 263: Key Lock Setting
Press the “Key Lock” field on the Setup Menu Select screen. The Key Lock (Display Key) screen appears. Press the [FUNCTION KEY] tab to display the Key Lock (Function Key) screen. Press the [ ] or [ ] button to change the pages. 11-10 Uni-7 User’s Manual...
Page 264 Chapter 11 SETUP MODE Uni-7 User’s Manual 11-11...
Page 265 Chapter 11 SETUP MODE 11-12 Uni-7 User’s Manual...
Page 266 Press a desired mode by pressing the corresponding tab, and press to select desired buttons to set whether or not to use the password. EXAMPLE Set to apply the password to “Multi” in Function Key Mode. Uni-7 User’s Manual 11-13...
Page 267: Data Storage Setting
The Data Staorage (Total Add) screen appears. Press the [ ] or [ ] button to change the pages. Press desired buttons to set whether or not to use the total addition. EXAMPLE Set to use the operator total addition. 11-14 Uni-7 User’s Manual...
Page 268: Preset Report Setting
Chapter 11 SETUP MODE 11.7 PRESET REPORT SETTING Press the “Preset Report” field on the Setup Menu Select screen. The Preset Report (Daily) screen appears. Press the [ ] or [ ] button to change the pages. Uni-7 User’s Manual 11-15...
Page 269 Chapter 11 SETUP MODE Press the [WEEKLY] tab to display the Preset Report (Weekly) screen. 11-16 Uni-7 User’s Manual...
Page 270 Chapter 11 SETUP MODE Press the [CUMULATIVE] tab to display the Preset Report (Cumulative) screen.. Press the [ ] or [ ] button to change the pages. Uni-7 User’s Manual 11-17...
Page 271 Chapter 11 SETUP MODE Press a desired mode by pressing the corresponding tab, and press to select desired buttons to set whether or not to print the totals EXAMPLE Set to print the Production Daily Total (Total). 11-18 Uni-7 User’s Manual...
Page 272: Auto Program Setting
Press the “Auto Program” field on the Setup Menu Select screen. The Item Auto Overwrite screen appears. Press the [ ] or [ ] button to change the pages. Note: Display items may vary depending on the country setting. Uni-7 User’s Manual 11-19...
Page 273 Chapter 11 SETUP MODE Press to select desired buttons to set whether or not to overwrite the items automatically. 11-20 Uni-7 User’s Manual...
Page 274: Default Data Setting
Press the [<] or [>] button to select a desired Markdown Mode. 1: Special price 2: Amount discount for total price MARKDOWN 3: Percent discount for total price MODE 4: Special unit price 5: Amount discount for unit price 6: Percent discount for unit price Uni-7 User’s Manual 11-21...
Page 275 Enter a fixed weight and press this field. TARE Enter a tare weight and press this field. UNDER WEIGHT Enter a lower weight limit and press this field. UPPER WEIGHT Enter an upper weight limit and press this field. 11-22 Uni-7 User’s Manual...
Page 276 1: Fixed weight POINTS Enter a point data and press this field. Press the “MESSAGE” tab to display the Item Initial Data (Message) screen. Press a desired field to display the corresponding list screen. EXAMPLE “Extra Message 1” Uni-7 User’s Manual 11-23...
Page 277 Chapter 11 SETUP MODE Select a desired message by pressing the corresponding field. The selected message has been registered. Press the “IMAGE” tab to display the Item Initial Data (Image) screen. Press to select a desired image field. 11-24 Uni-7 User’s Manual...
Page 278 The Image List screen appears. Then, select a desired image by pressing the corresponding field. The selected image has been registered. Press the Display Image field. The Display Image List screen appears. Then, select a desired image by pressing the corresponding field. Uni-7 User’s Manual 11-25...
Page 279 Press the [<] or [>] button to select whether or not to print first labels. FIRST LABEL 1: Yes PRINT 2: No Press the [<] or [>] button to select whether or not to print first labels. SECOND 1: Yes LABEL PRINT 2: No 11-26 Uni-7 User’s Manual...
Page 280 Enter a POS flag number and press this field. BARCODE Enter a barcode and press this field. Press the [<] or [>] button to select a desired reference method. 0: Refer POS REFERENCE 1: PLU file Uni-7 User’s Manual 11-27...
Page 281 Press to select a desired format. POS FORMAT TRACE ENABLE Press to select whether or not to enable traceability function. DEPARTMENT NO. Enter a department number and press this field. GROUP NO. Enter a group number and press this field. 11-28 Uni-7 User’s Manual...
Page 282: 11.10 Plu Update Setting
Press the “PLU Update” field on the Setup Menu Select screen. The PLU Update screen appears. Press the [ ] or [ ] button to change the pages. Note: Display items may vary depending on the country setting. Uni-7 User’s Manual 11-29...
Page 283 Chapter 11 SETUP MODE 11-30 Uni-7 User’s Manual...
Page 284 Chapter 11 SETUP MODE Uni-7 User’s Manual 11-31...
Page 285 Chapter 11 SETUP MODE Enter the start and end numbers and press these fileds to specify the target PLUs. Select desired items by pressing the corresponding fields. 11-32 Uni-7 User’s Manual...
Page 286 Chapter 11 SETUP MODE To release the selection, press the selected field again. To release all the selections, press the [BATCH DELETE] button. Uni-7 User’s Manual 11-33...
Page 287 Chapter 11 SETUP MODE Press the [EXECUTE] button to update the selected items. Press the [EXEC] button for execution. 11-34 Uni-7 User’s Manual...
Page 288: 11.11 Receipt Setting
Press the “PLU Update” field on the Setup Menu Select screen. The Receipt Setting screen appears. To edit the header and footer titles, press the corresponding field. The Receipt Title Edit screen appears. Edit the text according to the procedure explained in Appendix “Text Editing”. Uni-7 User’s Manual 11-35...
Page 289 The edited text has been registered. To edit the header and footer logo images, press the corresponding field. The Image List screen appears. Select a desired image by pressing the corresponding filed, and press the [SET] button. 11-36 Uni-7 User’s Manual...
Page 290 Chapter 11 SETUP MODE The edited logo image has been registered. Uni-7 User’s Manual 11-37...
Page 291: Chapter 12 Adjustment Mode
Make sure that the initial screen is displayed. Press the [MODE] key on the key sheet. The Operation Mode screen appears. Then, press the [ADJUST] button on the screen The Adjustment Menu Select screen appears. Uni-7 User’s Manual 12- 1...
Page 292: Date / Time Adjustment
DATE / TIME ADJUSTMENT Press the “TIME / DATE SET” field on the Adjustment Menu Select screen. The Time/Date Set screen appears. To change the date, enter a new date and press the “DATE” field. EXAMPLE 22 June, 2007 12-2 Uni-7 User’s Manual...
Page 293 To change the time, enter a new time and press the “TIME” field. EXAMPLE 13:50:00 To register new date and time, press the [SET] button. The confirmation screen appears. Then, press the [EXEC] button for execution. Uni-7 User’s Manual 12- 3...
Page 294: Touch Panel Adjustment
Press the “TOUCH PANEL” field on the Adjustment Menu Select screen. The Touch Panel screen appears. Press the [+] button on the upper left of the screen. Press the [+] button on the lower right of the screen. 12-4 Uni-7 User’s Manual...
Page 295 Chapter 12 ADJUSTMENT MODE Press the [SET] button to confirm calibration. Uni-7 User’s Manual 12- 5...
Page 296: Display Check
Press the [-] or [+] button to adjust vertical brightnesses for the operator and customer displays. Press the [HORIZONTAL] button to change to the horizontal display check screen. The Display Check (Horizontal) screen appears. Press the [-] or [+] button to adjust vertical brightnesses for the operator and customer displays. 12-6 Uni-7 User’s Manual...
Page 297: Text Editing
Used to specify a normal left. Also used to select character style. characters for changing the style. Used to select either lower-case or upper-case Used to specify a bold character mode for a text to character style. be entered. Uni-7 User’s Manual...
Page 298: Appendix Text Editing
Used to specify a revered Used to begin a new character character. line. Used to select either a Used to enter a space at the lower-case or upper-case place where the cursor is mode for a character to be positioned. entered. Uni-7 User’s Manual...
Page 299: Normal Character Editing
Select a desired character size by using the [Size] key on the key sheet. The selected size is displayed in the “FONT” display field. Press the [Lower Case] key on the key sheet to select whether to use upper-case characters or lower-case characters. Uni-7 User’s Manual...
Page 300 Appendix TEXT EDITING Enter desired characters using alpha-numeric keys on the key sheet or the screen. Upper-case characters Lower-case characters Uni-7 User’s Manual...
Page 301 To change to a new line, press the [New Line] key on the key sheet. Enter desired characters. To finalize the editing, press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. Uni-7 User’s Manual...
Page 302: Special Character Editing
To select a desired character style using the following keys. The selected style is displayed in the “STYLE” display field. EXAMPLE Select reversed characters. Enter desired characters using alpha-numeric keys on the key sheet or the screen. Uni-7 User’s Manual...
Page 303 Appendix TEXT EDITING Press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. Uni-7 User’s Manual...
Page 304: Line Deletion
Confirm that the text edit screen for a desired PLU is displayed. To delete the character line, press the [Line Delete] key on the key sheet. Press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. Uni-7 User’s Manual...
Page 305: Character Deletion
To Make a correction for a misspelled word, move the cursor to a place where misspelling is made by using the [→] or [←] key. “GAUDA” → “GOUDA” EXAMPLE Press the [Character Delete] key on the key sheet to delete the misspelled character. Uni-7 User’s Manual...
Page 306 Appendix TEXT EDITING Enter the correct character using the alpha-numeric keys. Press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. A-10 Uni-7 User’s Manual...
Page 307: Character Backspacing
CHARACTER BACKSPACING To delete a wrong character that was just entered, press the [Back Space] key on the key sheet to move the cursor back by one character. “E” → “A” EXAMPLE Enter a correct character. Uni-7 User’s Manual A-11...
Page 308 Appendix TEXT EDITING Complete the text. Press the [ESC] key on the key sheet. The confirmation screen appears. Then, press the [SAVE] button to save the data. A-12 Uni-7 User’s Manual...
Page 309 Design and specifications are subject to change without notice. 44 SANNO-CHO, SHOGOIN, SAKYO-KU KYOTO, 606-8392 JAPAN PHONE: 81-75-771-4141 FACSIMILE: 81-75-751-1634 URL: http://www.ishidajapan.com...

ISHIDA UNI-7 User Manual

Chapter 1 Before Use

Chapter 2 Label Issue

Chapter 3 Receipt Issue

Chapter 4 Traceability Products

Chapter 5 Temporary Change Operations

Chapter 6 Self-Service Operations

Chapter 7 Accumulator Mode

Chapter 8 Total Adjust Mode

Chapter 9 Total Mode

Chapter 10 Program Mode

Chapter 11 Setup Mode

Chapter 12 Adjustment Mode

Appendix Text Editing

Quick Links

Related Manuals for ISHIDA UNI-7

Summary of Contents for ISHIDA UNI-7

Table of Contents
