DISPLAY ADJUSTMENT

Press the [Display Check] button on the Test Menu screen. Then, the display check screen appears.
This procedure is used to check whether the screen shows an ideal color contrast or not. To adjust the
color contrast, turn the knob on right side of the operating console.
Buttons/Display Fields
MENU
Horizontal/Vertical
Turn the knob on right side of the operating console to adjust color contrast.
IP-EMZ Service Manual

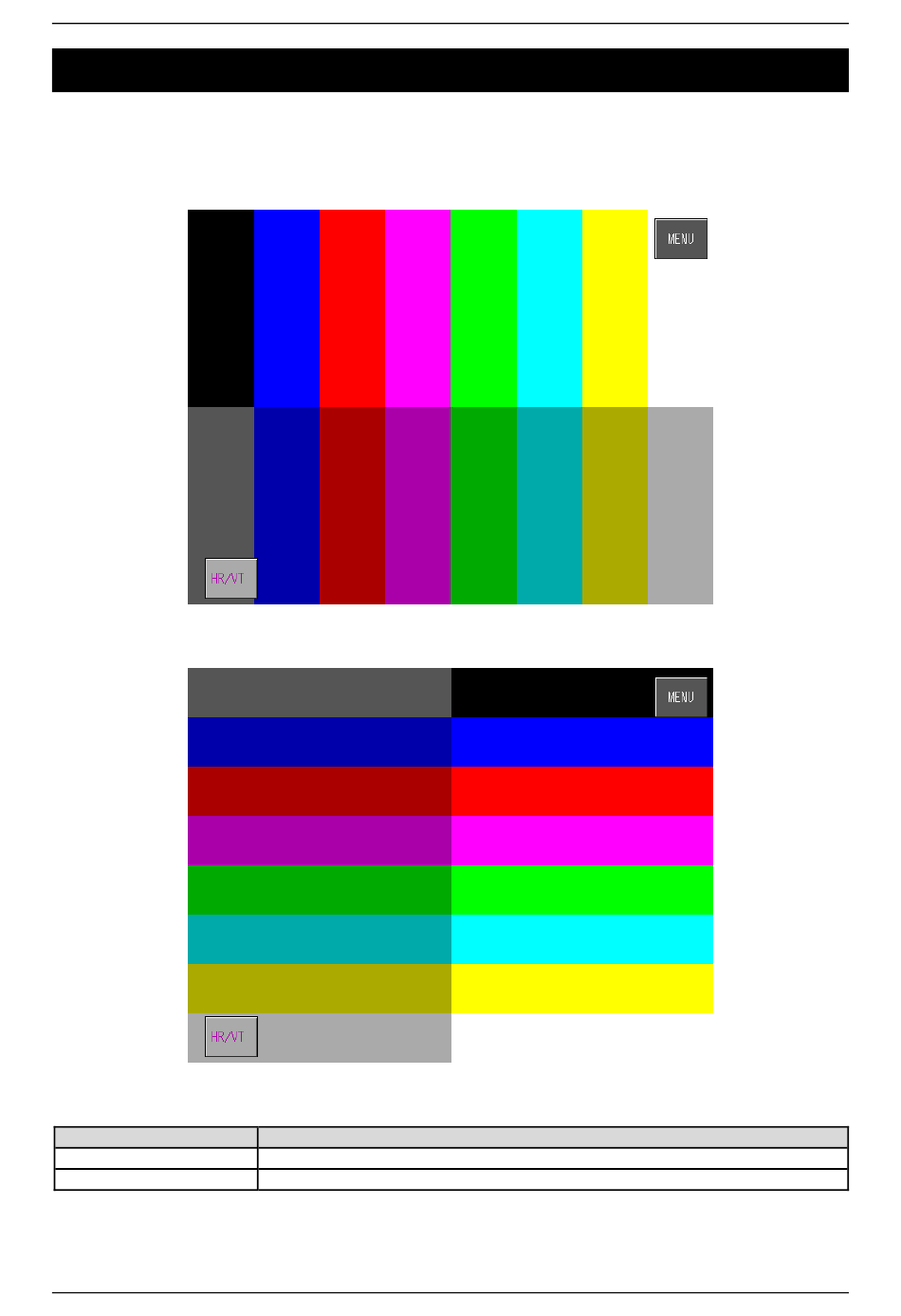

Display Adjustment Screen (Vertical)
Display Adjustment Screen (Horizontal)
Returns to the Test Menu 1/2 screen.
Changes between horizontal and vertical color patterns.
