Scale Unit - ISHIDA IP-EMZ Service Manual

5.4

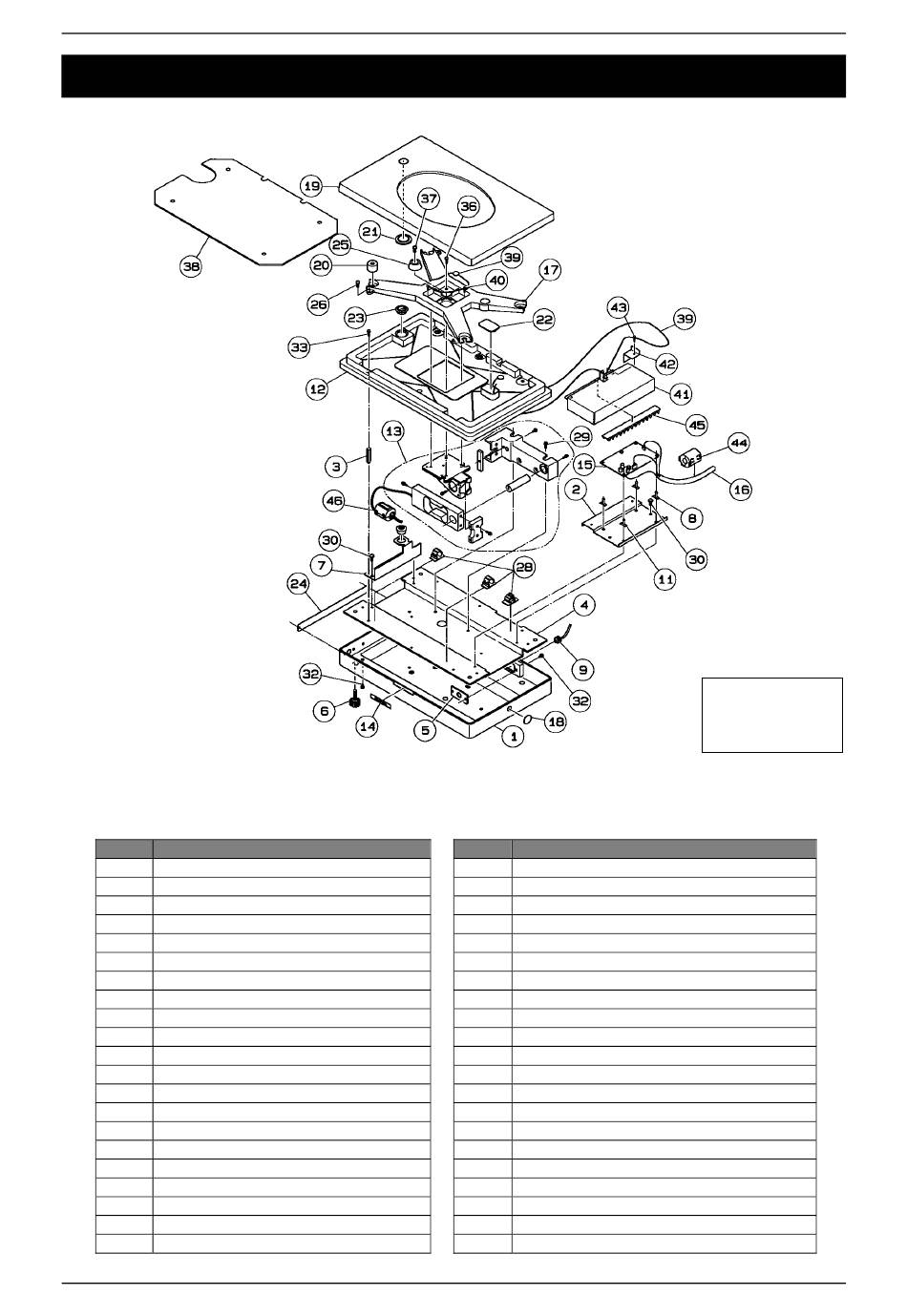

SCALE UNIT

15kg/30lb
SCALE UNIT: 15kg/30lb:IP-EMZ
PART CODE: 15kg:120-0182-07
Refer to DWG No.: 096-9606-05-1
ITEM
1 CASE:SCALE:LOWER
2 BRACKET:PWB:
3 THREADED ROD:HEX:MF
4 BASE:WEIGH:
5 PLATE B:METAL:IPEMZ
6 LEG:ADJUSTING:
7 METAL FITTING UNIT FOR LEVEL
8 PWB ACCESSORY:CARD SPACER:
9 ACCESSORY:BUSH:CABLE
11 PWB ACCESSORY:CARD SPACER:
12 ENCLOSURE
13 LC UNIT:CLC-25L:
14 NAME PLATE:COMPANY NAME:
15 PWB:P-930A-2:
16 HARNESS:C5:SCALE COMM
17 PLATTER SUPPORTER
18 SEAL:
19 PLATTER:
20 SUPPORTER RUBBER:
21 CAP:WINDOW:
22 CAP:
IP-EMZ Service Manual
30lb:123-2295-03
DESCRIPTION
15kg/30lb
Chapter 5 MECHANICAL ASSEMBLY
ITEM DESCRIPTION
23 LENSE:
24 NAME PLATE:SPECIFICATION:CAN
24 NAME PLATE:SPECIFICATION:USA
25 RUBBER PAD:
26 SCREW:PLUS TRUSS:SCREW LOCK
28 ACCESSORY:CLAMP:CKN CLAMP
29 GT CAP SCREW:
30 TP SCREW:
32 SCREW:CROSS TRUSS:
33 HEX BOLT:BOLT&WASHER AS S2P2:
36 CROSS HEXAGON BOLT
37 TP SCREW M4X8 CHROMATE
38 SHEET:INSULATOR:
39 SEALING:WITH WIRE:
40 STEP SCREW:
41 COVER:PWB:
42 COVER:SWITCH:
43 SCREW:SEALING:
44 FILTER:FERRITE CORE:
45 FILTER:FINGER:
46 FILTER:FERRITE:
TITLE

SCALE UNIT

DWG. No.
096-9606-05-1
5-7
