3.2

TEST MENU

Buttons/Display Fields
Key Check
Machine Setting
Self-diagnostic
Memory initialization
Display check
Calibration
Print adjustment
ROM version
Communication check
Option check
Memory data change
Time/ Date setting
IP-EMZ Service Manual

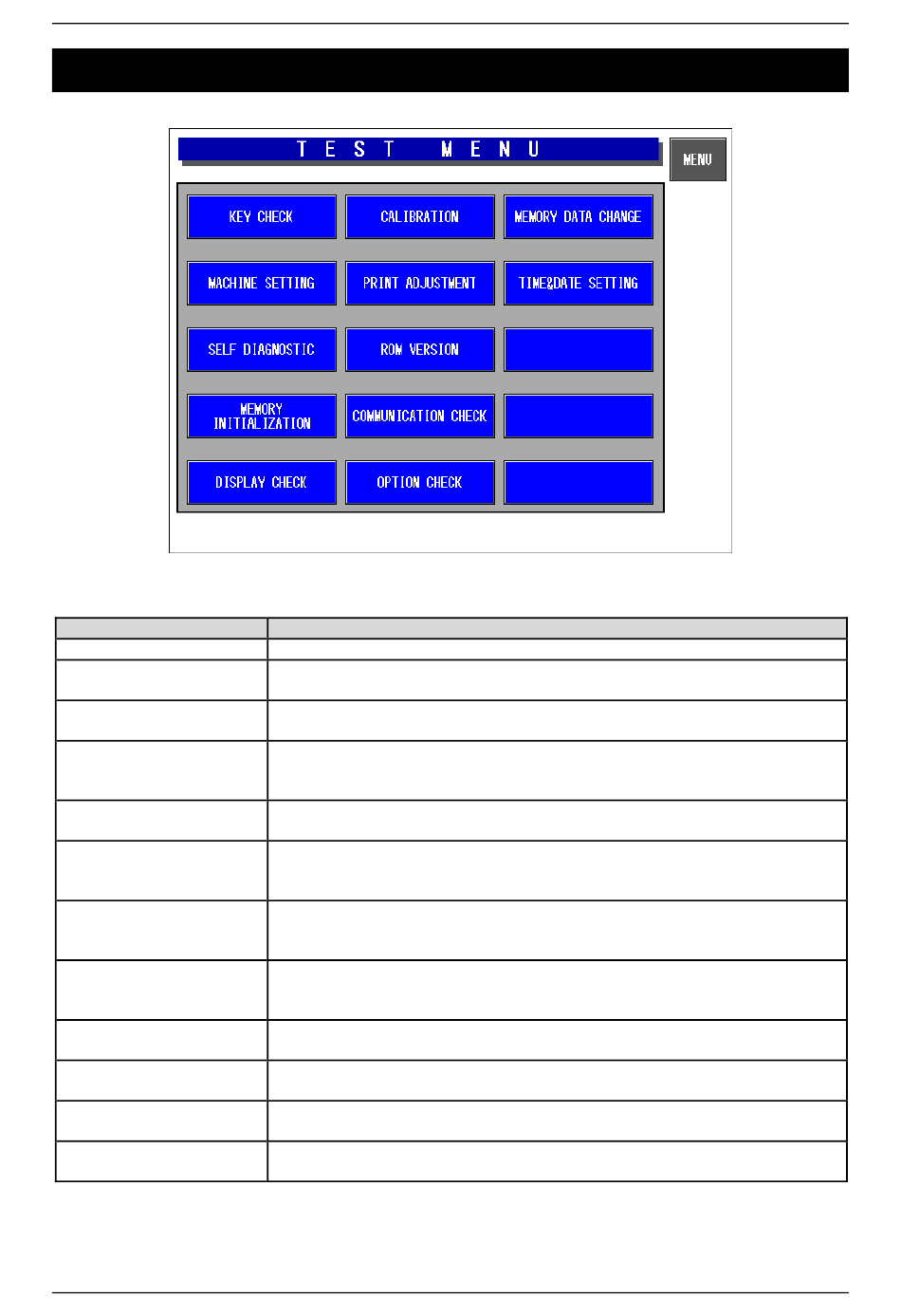

Test Menu Screen
Changes to the Key Check menu screen.
Changes to the Machine Setting screen.
Set basic machine and optional unit configuration.
Changes to the Self-diagnostic screen.
Check cables, memory, printer head and connection check, etc.
Changes to the Memory Initialization screen.
Display memory information (installed and remainder) and initialize memory
(master data clear, system data initialization, and test data setting).
Changes to the Display Check screen.
Adjust color contrast.
Changes to the Scale Calibration screen.
There are two screens for calibrating the scale and setting the scale board.
(Scale board setting requires password entry)
There are two screens for adjusting the printer head information (head type,
head resistance, head running distance, etc.) and the print information (print
density, various sensor distances, label length, etc.).
Changes to ROM version display.
Displays ROM versions for OS, BSP, BIOS, Main memory, Scale, ELAN,
Thermal head, Wrapper, etc.
Changes to the Communication Check screen.
Check I2NET and RS232C hardware (Communication and RAM).
Changes to the Option Check screen.
Check barcode scanner reading and card slot operation.
Changes to the Memory Data Change menu screen.
Confirm and change SRAM memory and refer FROM.
Changes to date and time setup screen.
Set the present date, time, and printing year.
