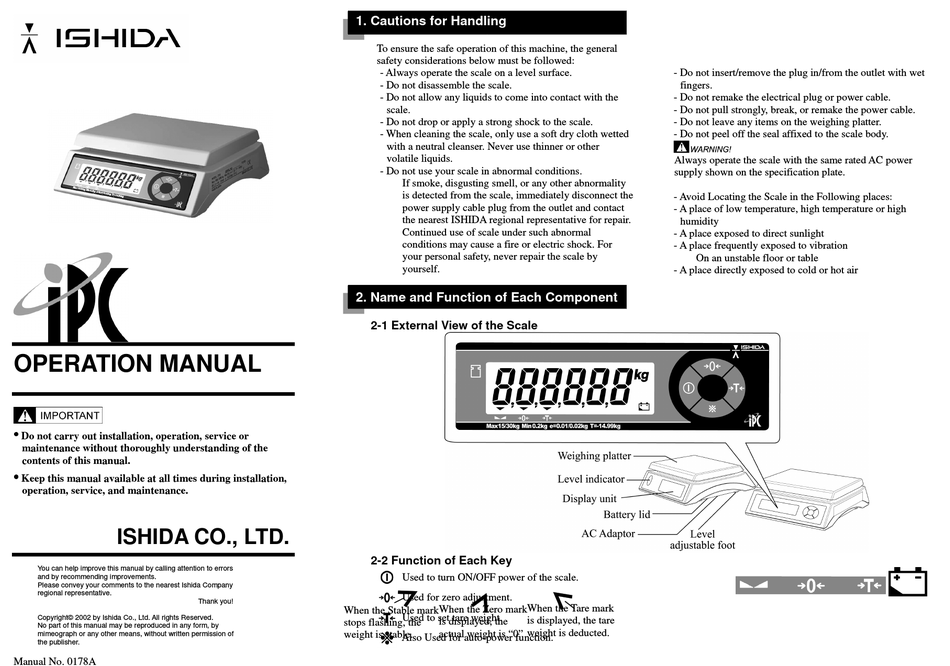

ISHIDA IPC Operation Manual

OPERATION MANUAL
• • • • Do not carry out installation, operation, service or
maintenance without thoroughly understanding of the
contents of this manual.
• • • • Keep this manual available at all times during installation,
operation, service, and maintenance.
ISHIDA CO., LTD.
You can help improve this manual by calling attention to errors
and by recommending improvements.
Please convey your comments to the nearest Ishida Company
regional representative.
Copyright© 2002 by Ishida Co., Ltd. All rights Reserved.
No part of this manual may be reproduced in any form, by
mimeograph or any other means, without written permission of
the publisher.
Manual No. 0178A
1. Cautions for Handling
To ensure the safe operation of this machine, the general
safety considerations below must be followed:
2. Name and Function of Each Component

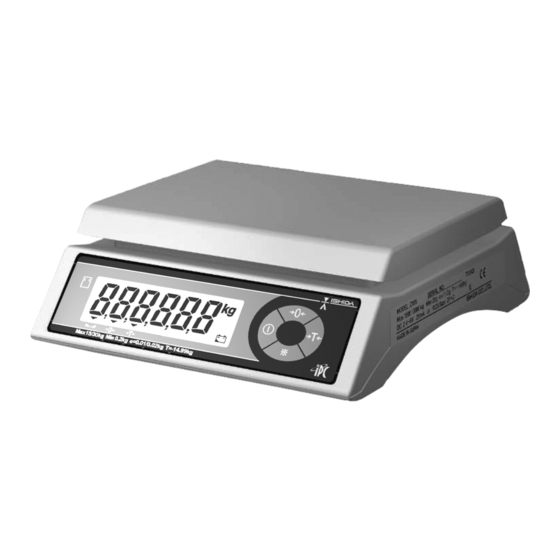

2-1 External View of the Scale
2-2 Function of Each Key
Thank you!
When the Stable mark
stops flashing, the
weight is stable.
- Always operate the scale on a level surface.
- Do not disassemble the scale.
- Do not allow any liquids to come into contact with the
scale.
- Do not drop or apply a strong shock to the scale.
- When cleaning the scale, only use a soft dry cloth wetted
with a neutral cleanser. Never use thinner or other
volatile liquids.
- Do not use your scale in abnormal conditions.
If smoke, disgusting smell, or any other abnormality
is detected from the scale, immediately disconnect the
power supply cable plug from the outlet and contact
the nearest ISHIDA regional representative for repair.
Continued use of scale under such abnormal
conditions may cause a fire or electric shock. For
your personal safety, never repair the scale by
yourself.
Used to turn ON/OFF power of the scale.
Used for zero adjustment.
When the Tare mark
When the Zero mark
Used to set tare weight.
is displayed, the tare
is displayed, the
weight is deducted.
actual weight is "0"
Also Used for auto-power function.
- Do not insert/remove the plug in/from the outlet with wet
fingers.
- Do not remake the electrical plug or power cable.
- Do not pull strongly, break, or remake the power cable.
- Do not leave any items on the weighing platter.
- Do not peel off the seal affixed to the scale body.
Always operate the scale with the same rated AC power
supply shown on the specification plate.
- Avoid Locating the Scale in the Following places:
- A place of low temperature, high temperature or high
humidity
- A place exposed to direct sunlight
- A place frequently exposed to vibration
On an unstable floor or table
- A place directly exposed to cold or hot air
