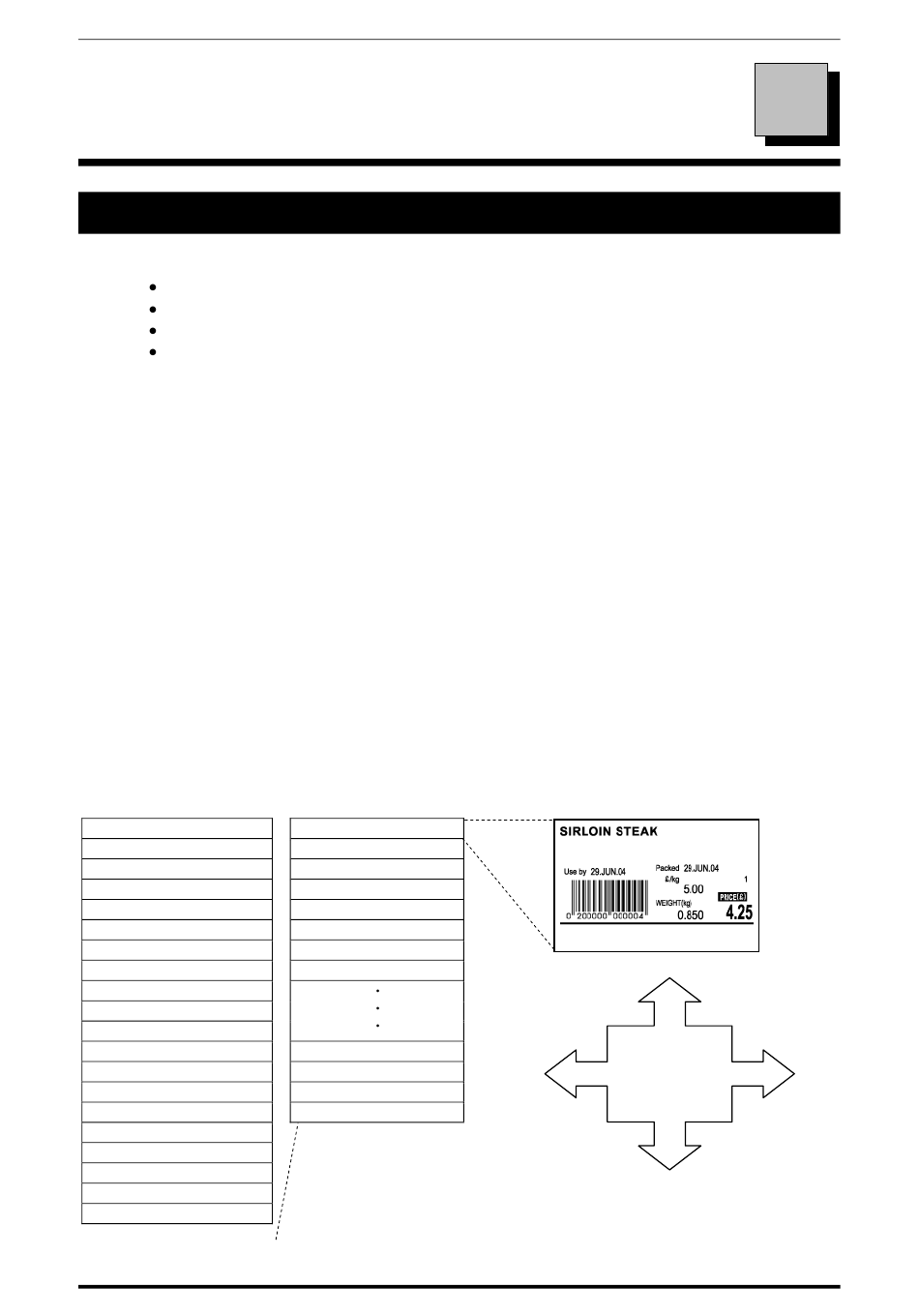

APPENDIX A LABEL FORMATTING

LABEL FORMATTING
A.1

LABEL FORMAT TABLE

To print the numeric, character, barcode, line, or image data;
Where the data is stored
The position to be printed
In which size
And other print information is required.
A collection of these data which determines the printing style is called "Label Format Table", and
printing is performed based on these information.
Label format table with this machine is as follows;
Fixed program: 20 formats stored
SRAM:
Up to 99 formats (label format number 1 through 99) are available with this machine.
If the same label number exists both in the CompactFlash and SRAM, the one in the SRAM is used.
The maximum number of label format tables are;
(1) Number of label formats in the Compact Flash
20 written formats (fixed, not possible to change)
(2) Number of formats in SRAM
99 formats (possible to be written in Set Up mode)
Fixed program
(Max. 20 formats)
Label format table No. 1
Label format table No. 2
Label format table No. 3
Label format table No. 4
Label format table No. 5
Label format table No. 6
Label format table No. 7
Label format table No. 10
Label format table No. 9
Label format table No. 11
Label format table No. 12
Label format table No. 24
Label format table No. 38
Label format table No. 39
Label format table No. 41
Label format table No. 51
Label format table No. 52
Label format table No. 54
Label format table No. 55
Label format table No. 90
A-2
Fixed program in the CompactFlash
Max. 99 formats stored
Using this machine, a maximum of 99 formats can be created and stored in
the SRAM. This data can be written in the F/D using the DataRapid.
SRAM
(Max. 99 formats)
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Label format table No. ?
Daily/Cumulative production total, Daily/Cumulative designated PLU total
A
Max. 99
formats
available
