ISHIDA IP-EMZ Service Manual page 149

Chapter 5 MECHANICAL ASSEMBLY
6kg

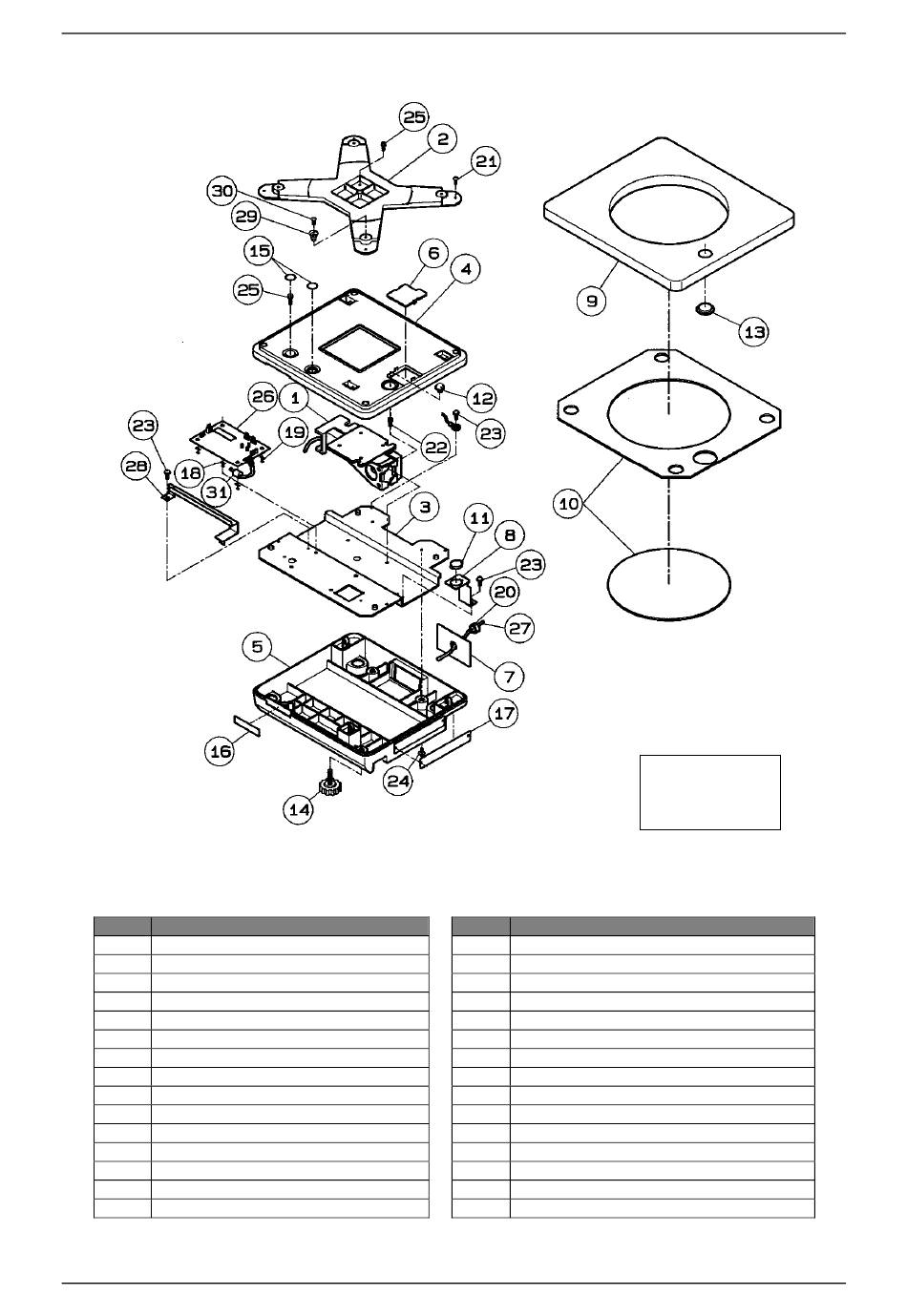

SCALE UNIT: 6kg:IP-EMZ
PART CODE: 123-2302-06
Refer to DWG No.: 091-2480-01-1
ITEM
1 LC UNIT:CLC-10N:
2 PLATTER SUPPORTER
3 BASE:WEIGH:
4 ENCLOSURE
5 CASE:SCALE:LOWER
6 CAP:
7 PLATE B:
8 BRACKET FOR LEVEL
9 PLATTER:
11 LEVEL AS
12 LENSE:
13 CAP:WINDOW:
14 LEG:ADJUSTING:
15 SEAL:
16 NAME PLATE:COMPANY NAME:
5-8
DESCRIPTION
6kg
ITEM DESCRIPTION
17 NAME PLATE:SPECIFICATION:
18 PWB ACCESSORY:CARD SPACER:
19 PWB ACCESSORY:CARD SPACER:
20 ACCESSORY:BUSH:CABLE
21 SCREW:PLUS TRUSS:SCREW LOCK
22 GT CAP SCREW:
23 TP SCREW:
24 TP SCREW:
25 HEX BOLT:BOLT&WASHER AS S2P2:
26 PWB:P-930A-2:
27 HARNESS:C5:SCALE COMM
28 COVER: HARNESS
29 SPRING:
30 TP SCREW:
31 FERRITE CORE
TITLE
SCALE UNIT
DWG. No.
091-2480-01-1
IP-EMZ Service Manual
