• Do not carry out installation, operation, service, or
maintenance until thoroughly understanding the
contents of this manual.
• Keep this manual available at all times for installation,
operation , service, and maintenance.
INS-100 Operator's Manual No. IW05XINS-100A
IMPORTANT

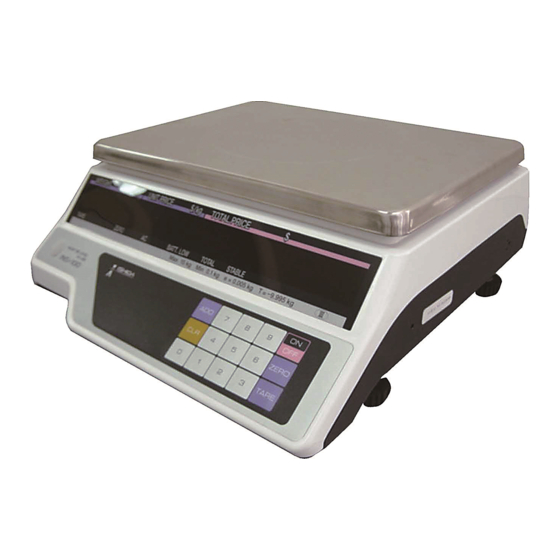

BATTERY DRIVEN SCALE
INS-100
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INS-100 and is the answer not in the manual?

Questions and answers

Related Manuals for ISHIDA INS-100

Summary of Contents for ISHIDA INS-100

  • Page 1 Operator’s Manual IMPORTANT • Do not carry out installation, operation, service, or maintenance until thoroughly understanding the contents of this manual. • Keep this manual available at all times for installation, operation , service, and maintenance. INS-100 Operator’s Manual No. IW05XINS-100A...
  • Page 2 Copyright © 2005 by Ishida Co., Ltd. All Rights Reserved. No part of this manual may be reproduced in any form, by mimeograph or any other means, without written permission of the publisher.
  • Page 3 To avoid personal injury and shock, do not open or remove any covers or enclosures of the instrument unless specified in the manual. Do not perform unspecified maintenance For your own personal safety, do not perform any maintenance procedures which are not specified in the manual. INS-100 Operator’s Manual No. IW05XINS-100A page i...
  • Page 4 Do not drop or apply a strong shock to When cleaning the machine, only use a the machine. soft dry cloth or a cloth wetted with a neutral cleanser. Never use thinner or other volatile liquids. page ii INS-100 Operator’s Manual No. IW05XINS-100A...
  • Page 5 • Areas subject to low temperatures easily spilled on the machine • Areas subject to a lot of dust or dirt • Areas where the scale is not level • Areas with large voltage fluctuations INS-100 Operator’s Manual No. IW05XINS-100A page iii...
  • Page 6 Precautions which must be followed to prevent the possibility of death or serious injury. Precautions which must be followed to prevent the possibility of light or moderately severe injury to personnel or damage to the machine. page iv INS-100 Operator’s Manual No. IW05XINS-100A...

  • Page 7: Table Of Contents

    WEIGHING TARE..............10 2.3.2 KEYBOARD TARE ..............11 WEIGHING SINGLE COMMODITY ..........12 WEIGHING SINGLE COMMODITY WITH TARE ......14 RANDOM WEIGHING ADDITIONS ..........16 RANDOM WEIGHING ADDITIONS WITH TARE ......19 TROUBLE SHOOTING ..............23 INS-100 Operator’s Manual No. IW05XINS-100A page v...
  • Page 8 INS-100 Operator’s Manual No. IW05XINS-100A...

  • Page 9: Chapter 1 Product Overview

    PRODUCT OVERVIEW INS-100 Operator’s Manual No. IW05XINS-100A page 1...

  • Page 10: Main Components & Display

    Lights when weight value is zero. ZERO Lights when AC power is supplied. LOW. BATT Lights when the battery level becomes low. TOTAL Lights when totals are added. Lights when scale is in stable condition. STABLE page 2 INS-100 Operator’s Manual No. IW05XINS-100A...

  • Page 11: Keyboard

    ON/OFF ZERO Used to turn scale ON/OFF Used to adjust scale to zero. (not electrical power switch). TARE Used to engage/disengage tare Used to add totals. subtraction operation. EURO Used to change currency. INS-100 Operator’s Manual No. IW05XINS-100A page 3...

  • Page 12: Power Supply

    This machine can also be operated by AC power supply. Use the specified AC voltage after referring to the specification plate located on the machine. Insert the electrical plug into the same rated AC outlet. To disconnect the power supply, remove the electrical plug from the electrical outlet. page 4 INS-100 Operator’s Manual No. IW05XINS-100A...

  • Page 13: Specifications

    335 (L) x 310 (W) x 120 (H) mm Size 372 (L) x 310 (W) x 402 (H) mm with pole display Approx. 3.5kg (excluding Battery) Weight Approx. 4.7kg (excluding Battery) with pole display INS-100 Operator’s Manual No. IW05XINS-100A page 5...
  • Page 14 6 INS-100 Operator’s Manual No. IW05XINS-100A...

  • Page 15: Chapter 2 Weighing Operations

    WEIGHING OPERATIONS INS-100 Operator’s Manual No. IW05XINS100-A page 7...

  • Page 16: Level Adjustment

    Place the scale on a stable counter top or other flat surface. Rotate the four adjustment feet until the level’s bubble is aligned in the center of the circle. This indicates that the machine is level. page 8 INS-100 Operator’s Manual No. IW05XINS100-A...

  • Page 17: Power On/Off

    Note 2: The “AC” indicator is lit when an AC power is used. When using AC power When using DC power 2.2.2 POWER OFF To turn OFF the machine, press the [ON/OFF] key. INS-100 Operator’s Manual No. IW05XINS100-A page 9...

  • Page 18: Tare Subtraction

    Note: Items weighing less than previous tare setting cannot be calculated. In that case, it is necessary to reset tare value by pressing the [TARE] key with nothing on the weigh platter. Example: Tare weight “75g” page 10 INS-100 Operator’s Manual No. IW05XINS100-A...

  • Page 19: Keyboard Tare

    With nothing loaded on the weigh platter, use numeric keys to enter data, and press the [TARE] key to save tare setting. The “TARE” indicator will light up. Note: Keyboard tare operation may be prohibited in some countries due to Weights and Measures Regulations. Example: Tare weight “75g” INS-100 Operator’s Manual No. IW05XINS100-A page 11...

  • Page 20: Weighing Single Commodity

    Key in the unit price using the numeric keys. Example: Unit price “$4.50” Placing Commodity Place a commodity on the weigh platter. The weight and price will appear on the display. Example: Commodity weight “275g” page 12 INS-100 Operator’s Manual No. IW05XINS100-A...
  • Page 21 Removing Commodity Remove the commodity from the weigh platter. The unit price is stored until a new value is keyed in. Clearing Unit Price To clear the unit price, press the [CLEAR] key. INS-100 Operator’s Manual No. IW05XINS100-A page 13...

  • Page 22: Weighing Single Commodity With Tare

    Key in the unit price using the numeric keys. Example: Unit price “$4.50” Placing Commodity Place a commodity on the weigh platter. The weight and price will appear on the display. Example: Commodity weight “300g” page 14 INS-100 Operator’s Manual No. IW05XINS100-A...
  • Page 23 Clearing Unit Price To clear the unit price, press the [CLEAR] key. Clearing Tare Weight To clear the tare weight, press the [TARE] key. The “TARE” indicator will disappear. INS-100 Operator’s Manual No. IW05XINS100-A page 15...

  • Page 24: Random Weighing Additions

    Place a commodity on the weigh platter. The weight and price will appear on the display. Example: Commodity weight “275g” Adding Totals Press the [ADD] key to add totals. The “TOTAL” indicator will light up. page 16 INS-100 Operator’s Manual No. IW05XINS100-A...
  • Page 25 Key in the unit price for the next commodity using the numeric keys. Example: Unit price “$6.50” Placing Next Commodity Place the next commodity on the weigh platter. The weight and price will appear on the display. INS-100 Operator’s Manual No. IW05XINS100-A page 17...
  • Page 26 Removing Commodity Remove the commodity from the weigh platter. Clearing Totals To clear totals, press the [CLEAR] key. The “TOTAL” indicator will disappear and the initial display appears. page 18 INS-100 Operator’s Manual No. IW05XINS100-A...

  • Page 27: Random Weighing Additions With Tare

    Key in the unit price using the numeric keys. Example: Unit price “$4.50” Placing Commodity Place a commodity on the weigh platter. The weight and price will appear on the display. Example: Commodity weight “300g” INS-100 Operator’s Manual No. IW05XINS100-A page 19...
  • Page 28 To clear tare weight, press the [TARE] key. The “TARE” indicator will disappear. Saving Tare Weight Use either “Weighing Tare” or “Keyboard Tare” to save tare setting. (Refer to Section 2.3) The “TARE” indicator will light up. page 20 INS-100 Operator’s Manual No. IW05XINS100-A...
  • Page 29 Press the [ADD] key to add totals. The “TOTAL” indicator will light up and the total price for two commodities will appear on the display. Removing Commodity Remove the commodity from the weigh platter. INS-100 Operator’s Manual No. IW05XINS100-A page 21...
  • Page 30 To clear total price, press the [CLEAR] key. The “TOTAL” indicator will disappear. The tare weight is stored until a new value is keyed in. Clearing Tare Weight To clear the tare weight, press the [TARE] key. The “TARE” indicator will disappear. page 22 INS-100 Operator’s Manual No. IW05XINS100-A...

  • Page 31: Trouble Shooting

    Reading weight is unstable. • Check that no objects are touching the weigh platter from above, side, or below. • Check that scale is level. • Check for air currents, vibration, or unstable mounting surface. INS-100 Operator’s Manual No. IW05XINS100-A page 23...
  • Page 32 Design and specifications are subject to change without notice. 44 SANNO-CHO, SHOGOIN, SAKYO-KU KYOTO, 606-8392 JAPAN PHONE: 81-75-771-4141 FACSIMILE: 81-75-751-1634 URL: http://www.ishidajapan.com...
