6.8

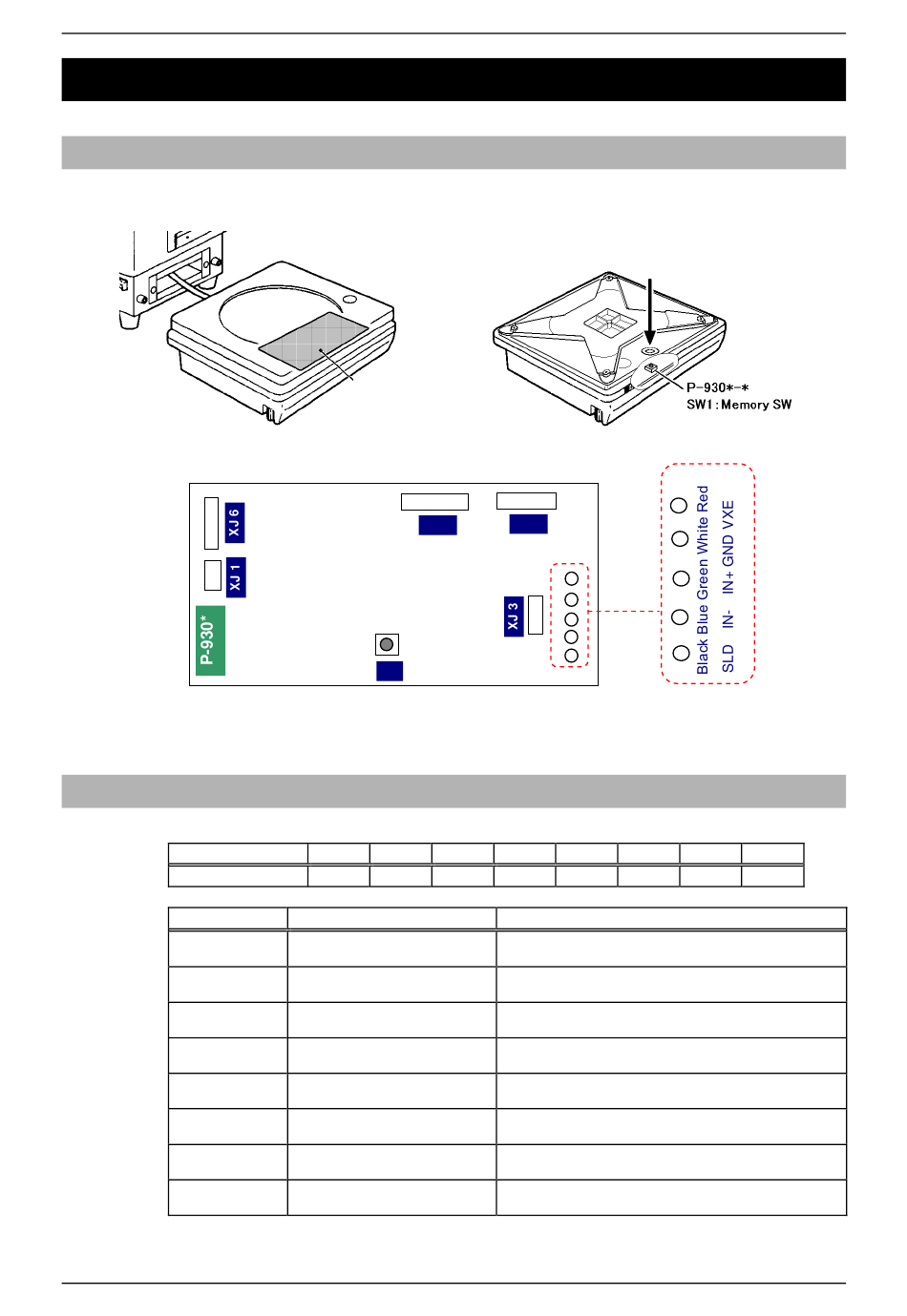

SCALE BOARD (P-930A-1/2)

6.8.1

BOARD LOCATION

This board is located in the scale unit.
6.8.2

DIP SWITCH SETTING

Switch No.
S3
DIP switch bit Function
1
2
3
4
5
6
7
8
IP-EMZ Service Manual
15kg/30lb: P-930A-2
6kg: P-930A-1
P-930A-1/2
S 1
S1:Memory SW
Please push a Memory switch after the completion of adjustment.
1 2
OFF OFF
Board number
Storage command
Test mode
Move average
Zero bias
Weight when transmitting
A/D data
Analog filter
Chapter 6 ELECTRIC ASSEMBLY
XJ 4
XJ 5
3 4 5
OFF OFF OFF
Set content
OFF: Command set
ON: "0" fixed
OFF: Command prohibited
ON: Command allowed
OFF: Command allowed
ON: Command prohibited
OFF: 8 times
ON: None
OFF: Yes
ON: No
OFF: None
ON: 20msec
OFF: ASC-HEX 5byte
ON: ASC-HEX 6byte
OFF: Soft
ON: Hard
6 7 8
OFF OFF OFF
