IGX Series
• Do not carry out installation, operation, service, or
maintenance until thoroughly understanding the
contents of this manual.
• Keep this manual available at all times for installation,
operation , service, and maintenance.
Manual No. 0203A
IGX/IGB Series
Operation Manual
IMPORTANT
Platform Scale
Asia/Oceania/EU Specification
IGB Series
Advertisement
Table of Contents
Related Manuals for ISHIDA IGX Series
Summary of Contents for ISHIDA IGX Series
- Page 1 Platform Scale IGX/IGB Series Asia/Oceania/EU Specification Operation Manual IGX Series IGB Series IMPORTANT • Do not carry out installation, operation, service, or maintenance until thoroughly understanding the contents of this manual. • Keep this manual available at all times for installation, operation , service, and maintenance.
- Page 2 There may be cases where the contents of this manual may not conform to the actual operations due to modifications to the machine or other reasons. Please convey your comments to your nearest Ishida dealer should you notice any errors or discrepancies in the contents of this manual.
-
Page 3: Table Of Contents
CONTENTS Chapter 1 BEFORE OPERATING MACHINE ........... 1 Caution for Handling................2 Name and Function of Each Part ............4 Installation ................... 5 Start and Stop of Operation ..............7 Daily Care.................... 8 Chapter 2 PRESET FUNCTION ................ 9 Presetting the Values................. 10 Calling Up the Preset Values............. -
Page 4: Chapter 1 Before Operating Machine
BEFORE OPERATING MACHINE IGX/IGB Series Operation Manual No. 0203A page 1... -
Page 5: Caution For Handling
1.1 Caution for Handling 1.1 CAUTION FOR HANDLING Safety Considerations To ensure the safe operation of this machine, the general safety considerations below must be followed: Grounding To avoid potential shock hazards, a protective grounding conductor for the machine must be securely connected. - Page 6 1.1 Caution for Handling Avoid Locating the Machine in the Following Places A place where water or other liquids may be A place subject to high temperature or high spilled on the machine. humidity. A place subject to a lot of dust or dirt. A place exposed to direct sunlight or direct cold air.
-
Page 7: Name And Function Of Each Part

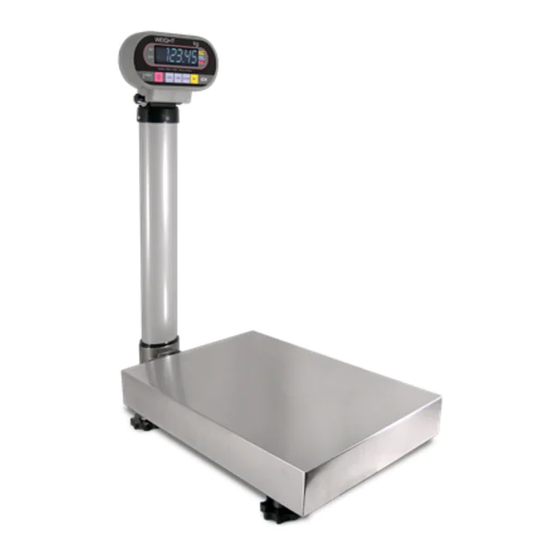

1.2 Name and Function of Each Part 1.2 NAME AND FUNCTION OF EACH PART Appearance IGX Series IGB Series Display Unit (Asia/Oceania Specification) IGX Series IGB Series Display Unit (EU Specification) IGX Series IGB Series Used to turn the power on or off. -
Page 8: Installation
1.3 Installation 1.3 INSTALLATION Assembling the Scale Remove the two hex-headed bolts from the bottom of the display pole. Carefully insert the bottom of the display pole into the base bracket while pulling out the slack in the cables. If the cable insulation is damaged, water may penetrate into the cable and cause inaccurate weighing, or the core material may corrode, causing the scale to fail. - Page 9 1.3 Installation Carefully carry and place the Weigh Platter over the Platter Support. Leveling the Scale Use the level adjuster until the air bubble inside the level is positioned in the center of the circle. Adjusting the Display Unit Angle After loosening the display unit tightening knob, adjust the unit to an easy-to see angle.
-
Page 10: Start And Stop Of Operation
Make sure that nothing is placed on the weigh platter. Press the ON/OFF key to turn on the power. Then, the self-diagnostic display appears and all display segments are lit. IGX Series IGB Series ake sure that the initial display appears and the “ZERO” indicator lights. -
Page 11: Daily Care
1.5 Daily Care 1.5 DAILY CARE Daily care will ensure the long life of this machine, and can prevent potential trouble or failure. Also, cleaning the machine after operation is recommended. To ensure your personal safety, disconnect the power plug from the outlet before any servicing or cleaning. -
Page 12: Chapter 2 Preset Function
PRESET FUNCTION IGX/IGB Series Operation Manual No. 0203A page 9... -
Page 13: Presetting The Values
2.1 Presetting the Values 2.1 PRESETTING THE VALUES Selecting the PLU No. hen the power is turned OFF, IGX Series IGB Series press the ON/OFF key, then the self-diagnosis display appears. IGX Series IGB Series mediately press the SET key while all display segments are lit. - Page 14 2.1 Presetting the Values Setting the Tare Weight Press the SET key to display the tare weight for the selected PLU. IGX Series IGB Series Move the flashing digit to the desired position by pressing the COLUMN key. IGX Series IGB Series Increase or decrease the numeric value by pressing the ZERO (+) or TARE (-) key.
- Page 15 Press the SET key to determine the tare weight and move to the display for setting the upper limit value. Move the flashing digit to the desired position by pressing the COLUMN key. IGX Series IGB Series Increase or decrease the numeric value by pressing the ZERO (+) or TARE (-) key. Then, press the COLUMN key to determine the value.
- Page 16 Increase or decrease the numeric value by pressing the ZERO (+) or TARE (-) key. Then, press the COLUMN key to determine the value. Repeat this step until completing the entry. [Example] Lower limit value 500g IGX Series IGB Series Setting Values for Other PLUs Press the SET key to determine the lower limit value.
-
Page 17: Calling Up The Preset Values
2.2 CALLING UP THE PRESET VALUES Press and hold the SET key for two seconds. “PLU 1” will be displayed. IGX Series IGB Series (2 sec.) Press the ZERO (+) or TARE (-) key to select the desired PLU No. - Page 18 2.2 Calling Up the Preset Values NOTE If no tare weight has been set, or if neither the upper limit value nor the lower limit value has been set, the values set before pressing the SET key will remain active. IGX/IGB Series Operation Manual No.
- Page 19 MEMO page 16 IGX/IGB Series Operation Manual No. 0203A...
-
Page 20: Chapter 3 Weighing
WEIGHING IGX/IGB Series Operation Manual No. 0203A page 17... -
Page 21: Weighing Non-Plus
3.1 Weighing Non-PLUs 3.1 WEIGHING NON-PLUs When the power is turned OFF, IGX Series IGB Series press the ON/OFF key to turn on the power, the self-diagnosis display will start, then stop at the initial display with “ZERO” indicator lit. -
Page 22: Weighing Plus
3.2 Weighing PLUs 3.2 WEIGHING PLUs When the power is turned OFF, IGX Series IGB Series press the ON/OFF key to turn on the power, the self-diagnosis display appears, then stop at the initial display with “ZERO” indicator lit. IGX Series... - Page 23 Press the SET key to display the tare weight, upper limit value, and lower limit value for the selected PLU. [Example] Tare weight 250g Upper limit value 1000g Lower limit value 500g IGX Series IGB Series page 20 IGX/IGB Series Operation Manual No. 0203A...
- Page 24 3.2 Weighing PLUs Place the item on the weigh platter. The display will show the net weight. [Example] Net weight 5,970g IGX Series IGB Series NOTE When the net weight exceeded the programmed upper weight limit, the “OVER” indicator will light up.
- Page 25 MEMO page 22 IGX/IGB Series Operation Manual No. 0203A...
-
Page 26: Chapter 4 Setting Mode
SETTING MODE IGX/IGB Series Operation Manual No. 0203A page 23... -
Page 27: Setting Method
4.1 Setting Method 4.1 SETTING METHOD W hen the power supply is turned OFF, IGX Series IGB Series press the ON/OFF key to turn ON the power, then immediately press the COLUMN key while all display segments are lit. Then, the set value number of Setting No. 1 appears. - Page 28 4.1 Setting Method Select the desired Setting No. by pressing the SET key. Return to step 2 above. IGX Series IGB Series Press the COLUMN key to finish the setting procedure. IGX Series IGB Series For descriptions of the setting numbers and the setting conditions of the setting value numbers, refer to the Set Value List on the following page.
-
Page 29: Set Values List
4.2 Set Value List 4.2 SET VALUE LIST IGX Series Setting Setting Description of Setting Setting Condition Value No. Key selection All key valid ON/OFF key invalid (Always scale operation status when the power is turned ON) Automatic call of preset number No function Preset No. - Page 30 4.2 Set Values List IGB Series Setting Setting Description of setting Setting condition value No. No function Function to automatically call preset No function provided Preset No. 1 is automatically called when power supply is ON. No function No function No function No function No function...
- Page 31 MEMO page 28 IGX/IGB Series Operation Manual No. 0203A...
-
Page 32: Chapter 5 Battery Check
BATTERY CHECK For IGB Series Only IGX/IGB Series Operation Manual No. 0203A page 29... -
Page 33: Checking Battery Voltage
5.1 Checking Battery Voltage 5.1 CHECKING BATTERY VOLTAGE Press the ON/OFF key, then the self-diagnosis display appears. Immediately press the TARE key. The battery check display will appear to check the remaining battery capacity. [Example] Voltage (for reference) 2.8 V NOTE Since rechargeable batteries have a normal voltage of 1.2 V (2.4V for two batteries), their voltage cannot be indicated even when they are fully charged. - Page 34 5.1 Checking Battery Voltage [Example] Voltage (for reference) 2.2 to 2.4 V [Example] Voltage (for reference) 2.0 to 2.2 V [Example] Voltage (for reference) less than 2.0 V (when batteries have to be replaced) ress any key other than the TARE key to cancel the battery check display. NOTE When it is necessary to replace the batteries when in use, the battery-replacement symbol will illuminate and the display indicating all numeric values will appear.
- Page 35 MEMO page 32 IGX/IGB Series Operation Manual No. 0203A...
-
Page 36: Chapter 6 Appendix
APPENDIX IGX/IGB Series Operation Manual No. 0203A page 33... -
Page 37: Troubleshooting
6.1 TROUBLESHOOTING If an error occurs while using the scale, take appropriate measures according to instructions in the following table. If you have any other problems, contact your nearest ISHIDA dealer. Symptom Measures The display unit does not indicate any Check the power source. -
Page 38: Specifications
6.2 Specifications 6.2 SPECIFICATIONS IGX Series Item Contents Model Name IGX-60 IGX-150 <OIML Approved> Weighing Capacity 60 kg 150 kg Graduation 0.02 kg 0.05 kg Accuracy 1/3000 <Non Approval> Weighing Capacity 60 kg 150 kg Graduation 0.01 kg 0.02 kg... - Page 39 6.2 Specifications IGB Series Item Contents Model Name IGB-60 IGB-150 <OIML Approved> Weighing Capacity 60 kg 150 kg Graduation 0.02 kg 0.05 kg Accuracy 1/3000 <Non Approval> Weighing Capacity 60 kg 150 kg Graduation 0.01 kg 0.02 kg Accuracy 1/3000 Weighing Capacity 60 kg 150 kg...
- Page 40 Design and specifications are subject to change without notice. 44 SANNO-CHO, SHOGOIN, SAKYO-KU KYOTO, 606-8392 JAPAN PHONE: 81-75-771-4141 FACSIMILE: 81-75-751-1634 URL: http://www.ishidajapan.com...
