External I/O

External I/O:
The external I/O is the interface between the scanner and all external items. Examples: wireless
network, USB interface medical grade printer and external medical grade SVGA displayer.
5-2-4

Peripherals

DVD-RW, and a Black & White Video Printer can be connected to the external I/O.
5-4
LOGIQ e/LOGIQ e Vet/LOGIQ i/Vivid e Basic Service Manual

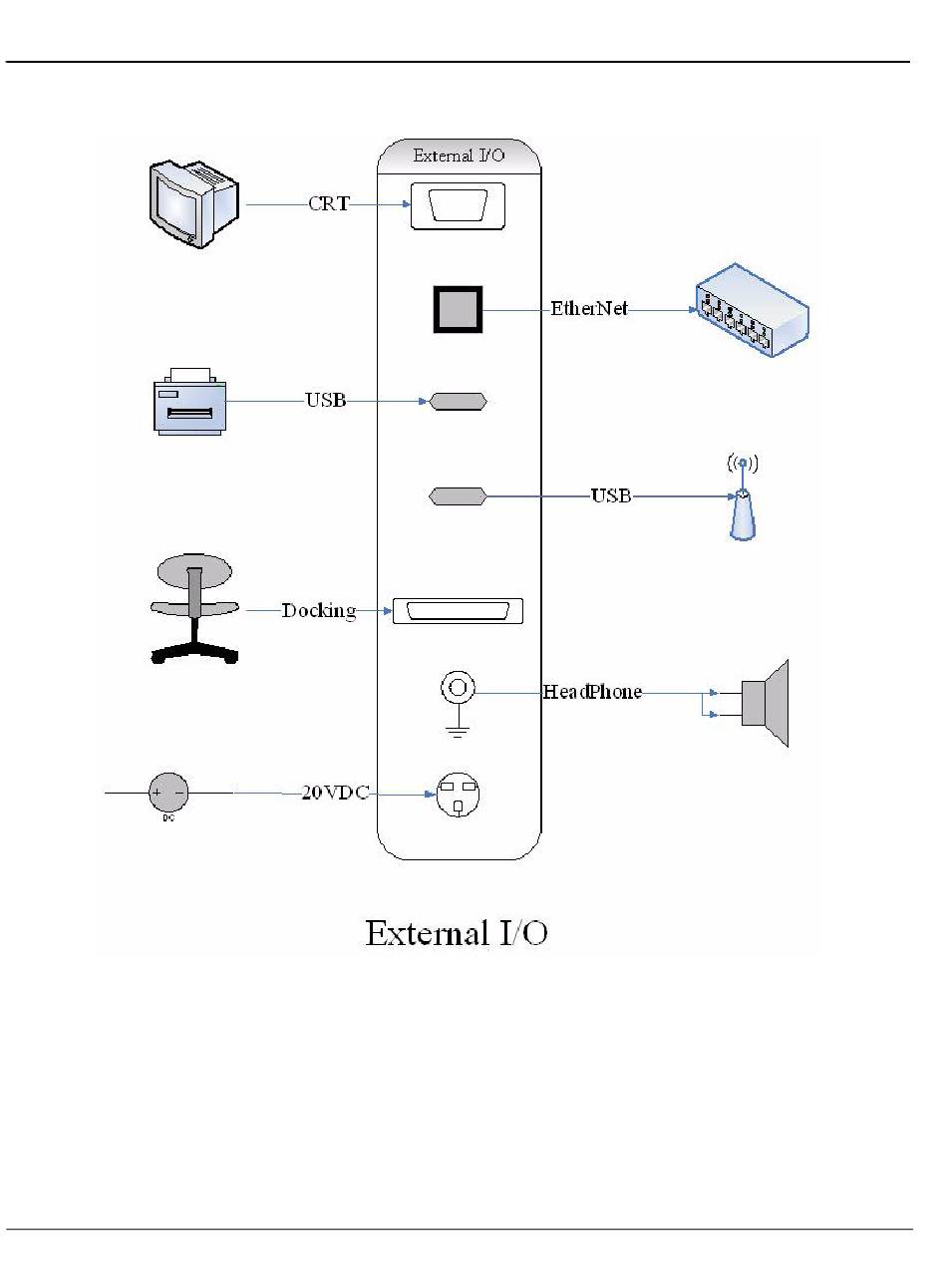

Figure 5-2 External I/O module overview
Section 5-2 - Block Diagrams and Theory
