SmartDC
Maintenance Guide

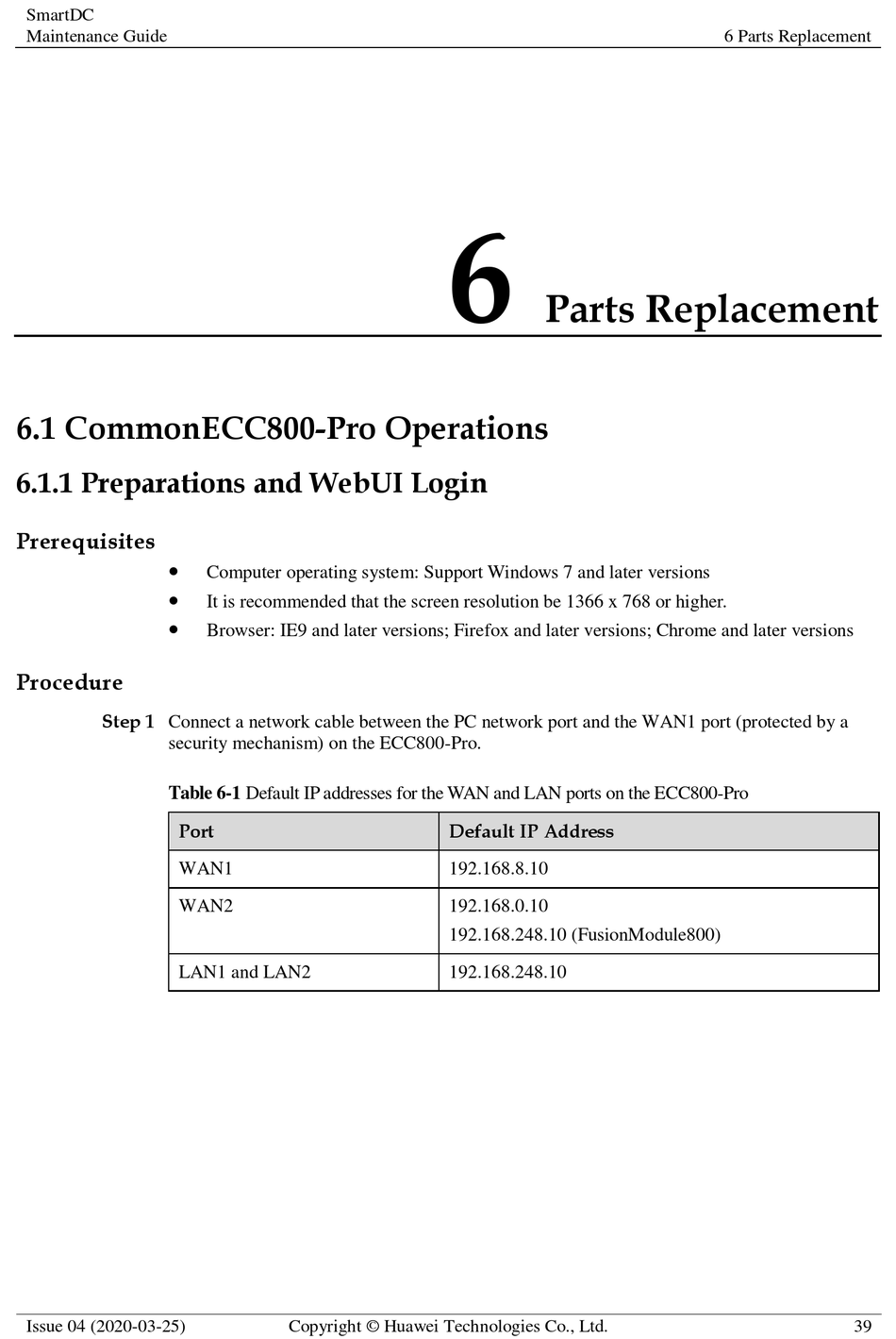

6.1 CommonECC800-Pro Operations

6.1.1 Preparations and WebUI Login

Prerequisites



Procedure
Step 1 Connect a network cable between the PC network port and the WAN1 port (protected by a
security mechanism) on the ECC800-Pro.
Table 6-1 Default IP addresses for the WAN and LAN ports on the ECC800-Pro
Port
WAN1
WAN2
LAN1 and LAN2
Issue 04 (2020-03-25)
Computer operating system: Support Windows 7 and later versions
It is recommended that the screen resolution be 1366 x 768 or higher.
Browser: IE9 and later versions; Firefox and later versions; Chrome and later versions
Copyright © Huawei Technologies Co., Ltd.
6

Parts Replacement

Default IP Address
192.168.8.10
192.168.0.10
192.168.248.10 (FusionModule800)
192.168.248.10
6 Parts Replacement
39
