SmartDC

Maintenance Guide

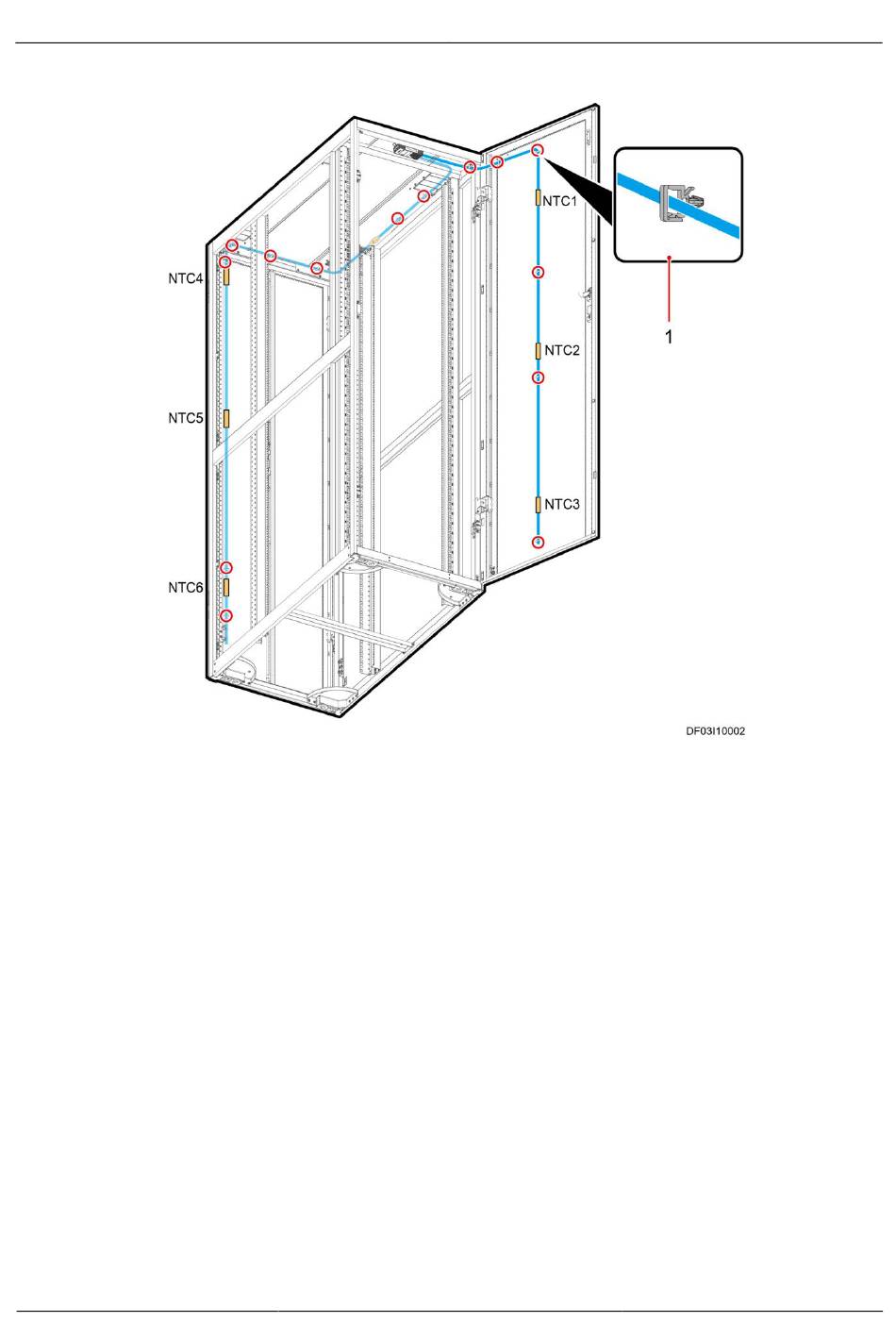

Figure 6-41 Installing temperature sensors (Connected to a UIM20A expansion module)

(1) Fastener

Step 4 Check that the temperature sensors work properly.

----End

6.4.11 Replacing a Water Sensor

The water sensor can be installed in various scenarios. This section describes the general

method for replacing a water sensor.

Context

Prepare a water sensor or water detection cable of the same model.

A water sensor consists of a water detection cable, water detector, and conversion cable. The

water detection cable is connected to the water detector placed near the collector by the

conversion cable.

Issue 04 (2020-03-25)

6 Parts Replacement
