SmartDC

Maintenance Guide

Procedure

Step 1 Turn off the power switch of the VCN540, disconnect the power supply of the VCN540,

remove the cables from the VCN540, label the cables, and record the original connection

positions of the cables.

After removing cables, wrap exposed terminals with insulation tape and do not block cable

labels. If cable labels are blocked, cables may be connected incorrectly.

Step 2 Remove the faulty VCN540 from the cabinet.

Step 3 Put two M6 screws through the slotted holes of one mounting ear and use a Phillips

screwdriver to fasten the screws to secure the device to the rack rail at front of the network

cabinet.

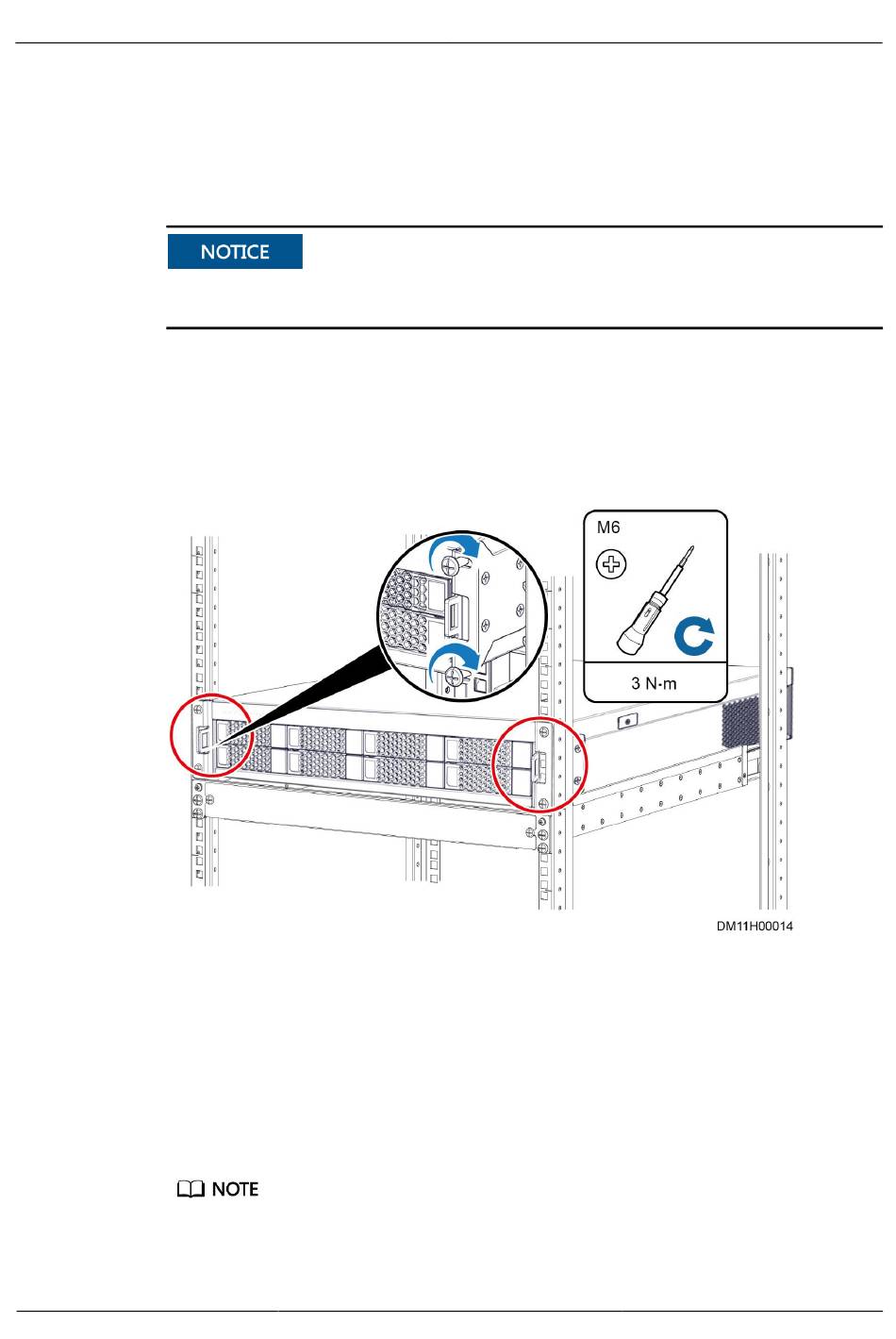

Figure 6-15 Securing a VCN540

Step 4 Reconnect the cables to the new VCN540.

Step 5 Turn on the power switch of the VCN540.

Step 6 On the WebUI of the ECC800, choose Monitoring > System > ECC800 > Controls >

Delete device with communication failure, and click Submit.

Step 7 Commissioning the VCN540. If the video recording function works properly after

commissioning, the VCN540 is functional.

Issue 04 (2020-03-25)

For details about how to commission the VCN540, see FusionModule2000 Smart Modular Data Center

V500R003C10 Commissioning Guide.

6 Parts Replacement
