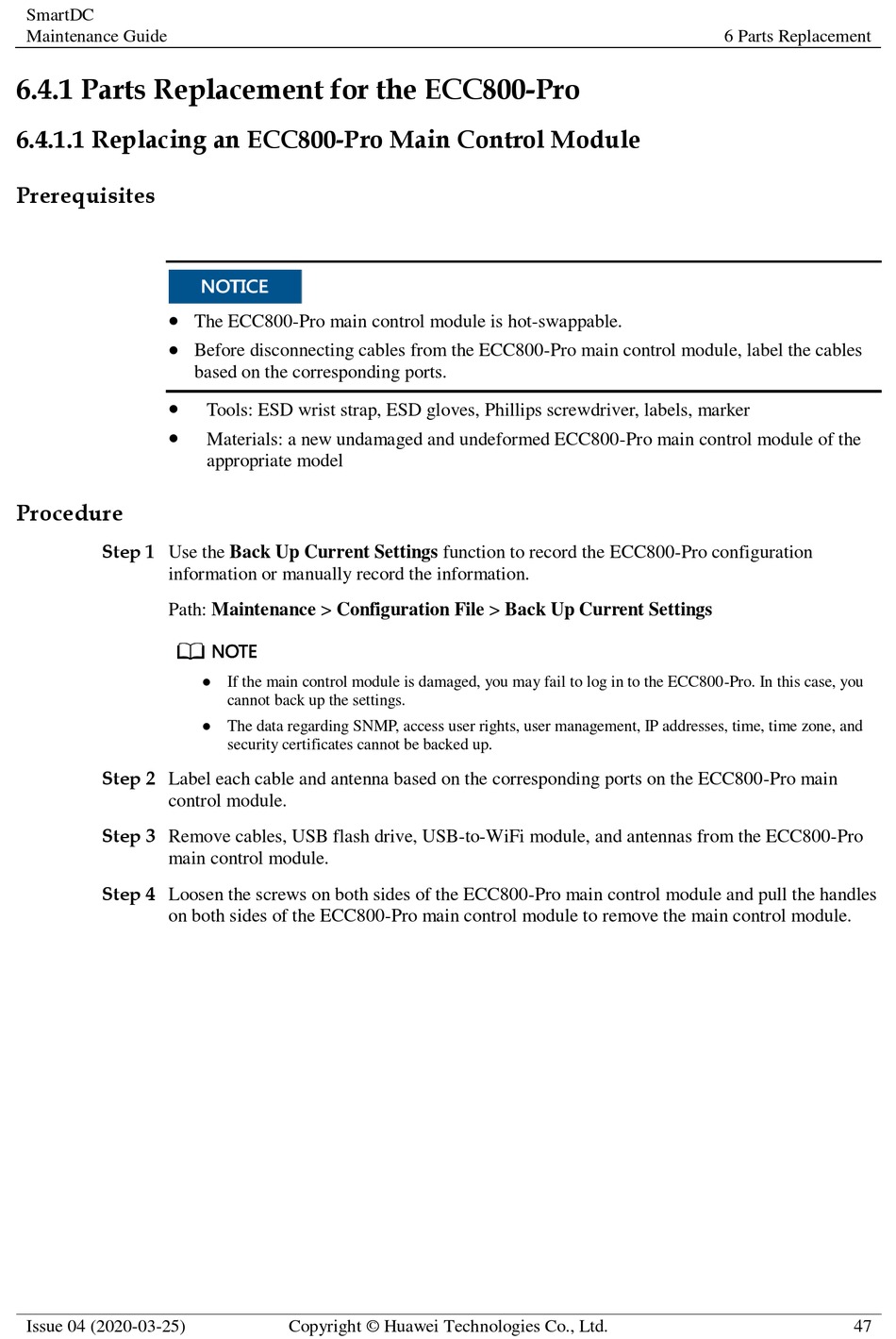

6.4.1 Parts Replacement for the ECC800-Pro

6.4.1.1 Replacing an ECC800-Pro Main Control Module

Prerequisites




Procedure
Step 1 Use the Back Up Current Settings function to record the ECC800-Pro configuration
information or manually record the information.
Path: Maintenance > Configuration File > Back Up Current Settings
Step 2 Label each cable and antenna based on the corresponding ports on the ECC800-Pro main
control module.
Step 3 Remove cables, USB flash drive, USB-to-WiFi module, and antennas from the ECC800-Pro
main control module.
Step 4 Loosen the screws on both sides of the ECC800-Pro main control module and pull the handles
on both sides of the ECC800-Pro main control module to remove the main control module.
Issue 04 (2020-03-25)
The ECC800-Pro main control module is hot-swappable.
Before disconnecting cables from the ECC800-Pro main control module, label the cables
based on the corresponding ports.
Tools: ESD wrist strap, ESD gloves, Phillips screwdriver, labels, marker
Materials: a new undamaged and undeformed ECC800-Pro main control module of the
appropriate model
 If the main control module is damaged, you may fail to log in to the ECC800-Pro. In this case, you
cannot back up the settings.
 The data regarding SNMP, access user rights, user management, IP addresses, time, time zone, and
security certificates cannot be backed up.
