Remove the magnet from the door, as shown in

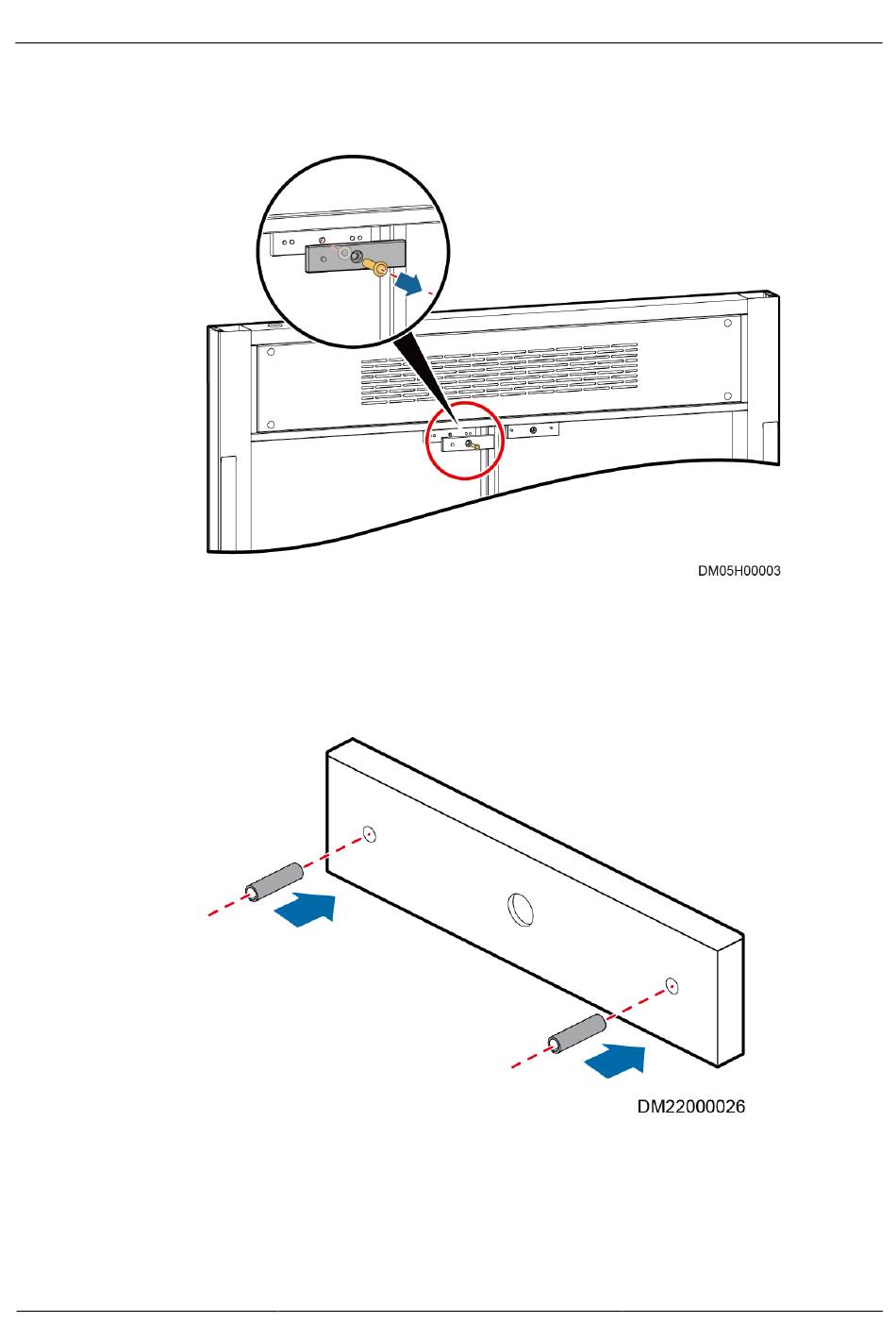

Figure 6-29 Removing a magnet
(Optional) Insert the positioning pins of the magnet into the magnet using a rubber mallet,
as shown in Figure 6-30.
Figure 6-30 Installing positioning pins of a magnet
Insert the assembled magnet into the magnetic lock base on the revolving door, and
secure the magnet to the door using the screws on the door and the white rubber washer
delivered with the magnet, as shown in
Copyright © Huawei Technologies Co., Ltd.
Figure 6-29.
Figure 6-31.
