6.4.16 Replacing a Skylight Magnetic Lock

Impact on the System

The rotating skylight cannot be controlled.

Preparations



Procedure

Step 1 Open the rotating skylight.

Step 2 Disconnect the cable delivered with the skylight magnetic lock from the cascading terminal of

the lock.

Step 3 Remove the skylight magnetic lock to be replaced.

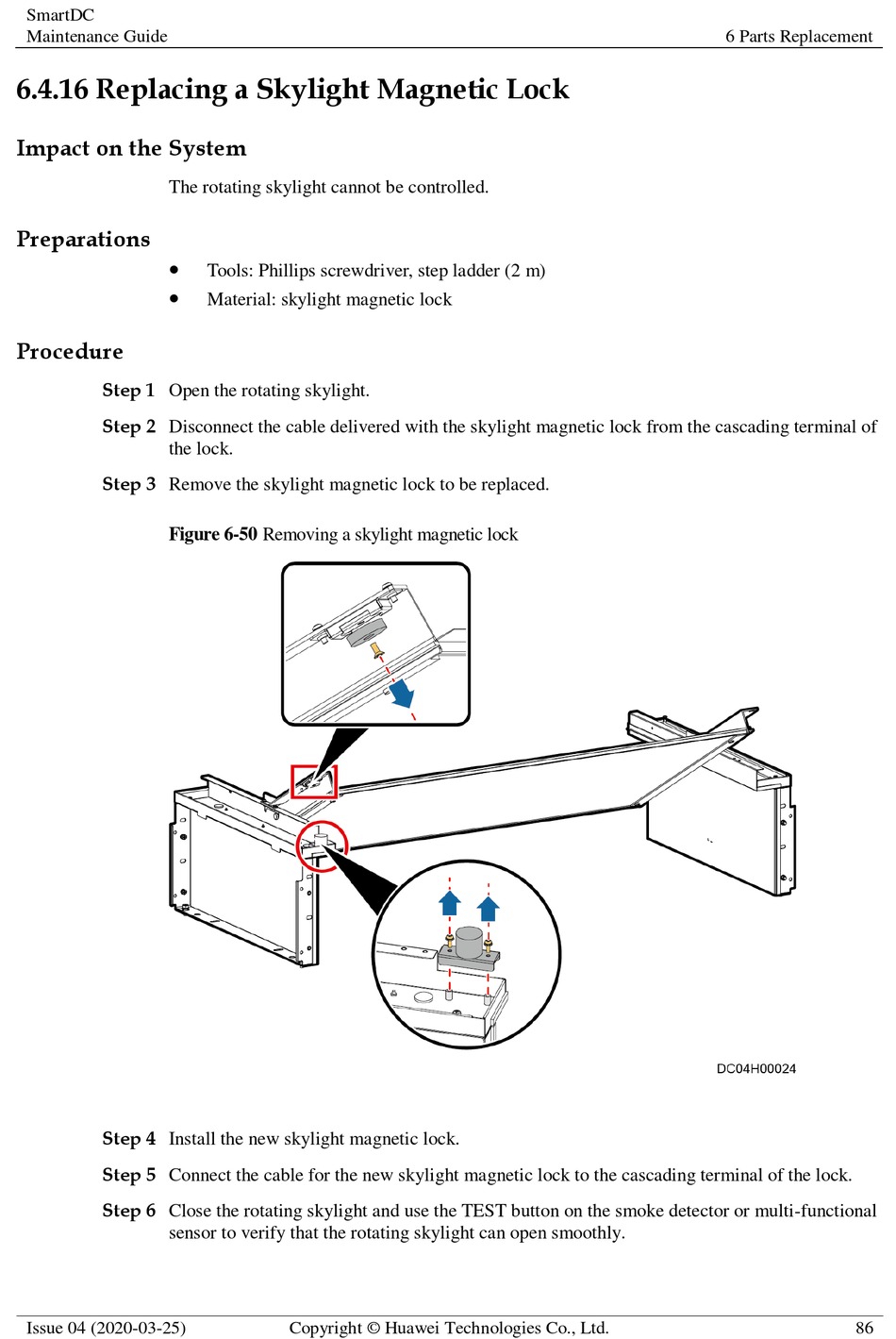

Figure 6-50 Removing a skylight magnetic lock

Step 4 Install the new skylight magnetic lock.

Step 5 Connect the cable for the new skylight magnetic lock to the cascading terminal of the lock.

Step 6 Close the rotating skylight and use the TEST button on the smoke detector or multi-functional

sensor to verify that the rotating skylight can open smoothly.

Issue 04 (2020-03-25)

Tools: Phillips screwdriver, step ladder (2 m)

Material: skylight magnetic lock

6 Parts Replacement
