SmartDC

Maintenance Guide

Step 8 Connect cables from the power connector to the AC actuator, and route the cables.

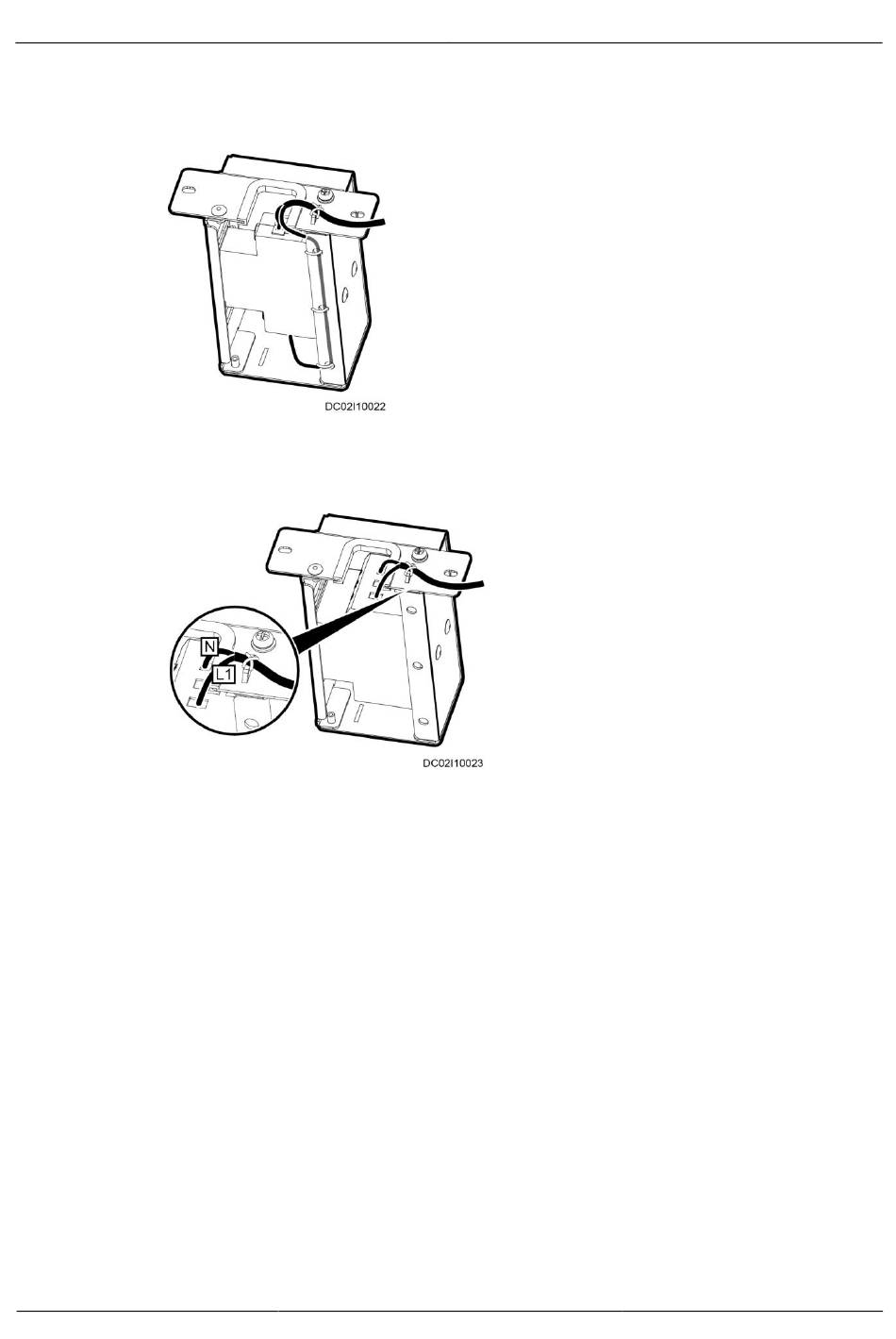

Figure 6-58 Connecting cables to a power connector (BOM number: 14190892)

Figure 6-59 Connecting cables to a power connector (BOM number: 14190242)

Step 9 Secure the pad power connector holder.

Issue 04 (2020-03-25)

Remove the baffle plate from the power connector mounting holes in the door box.

Secure the pad power connector holder to the door box using two M4x12 screw

assemblies.

6 Parts Replacement
