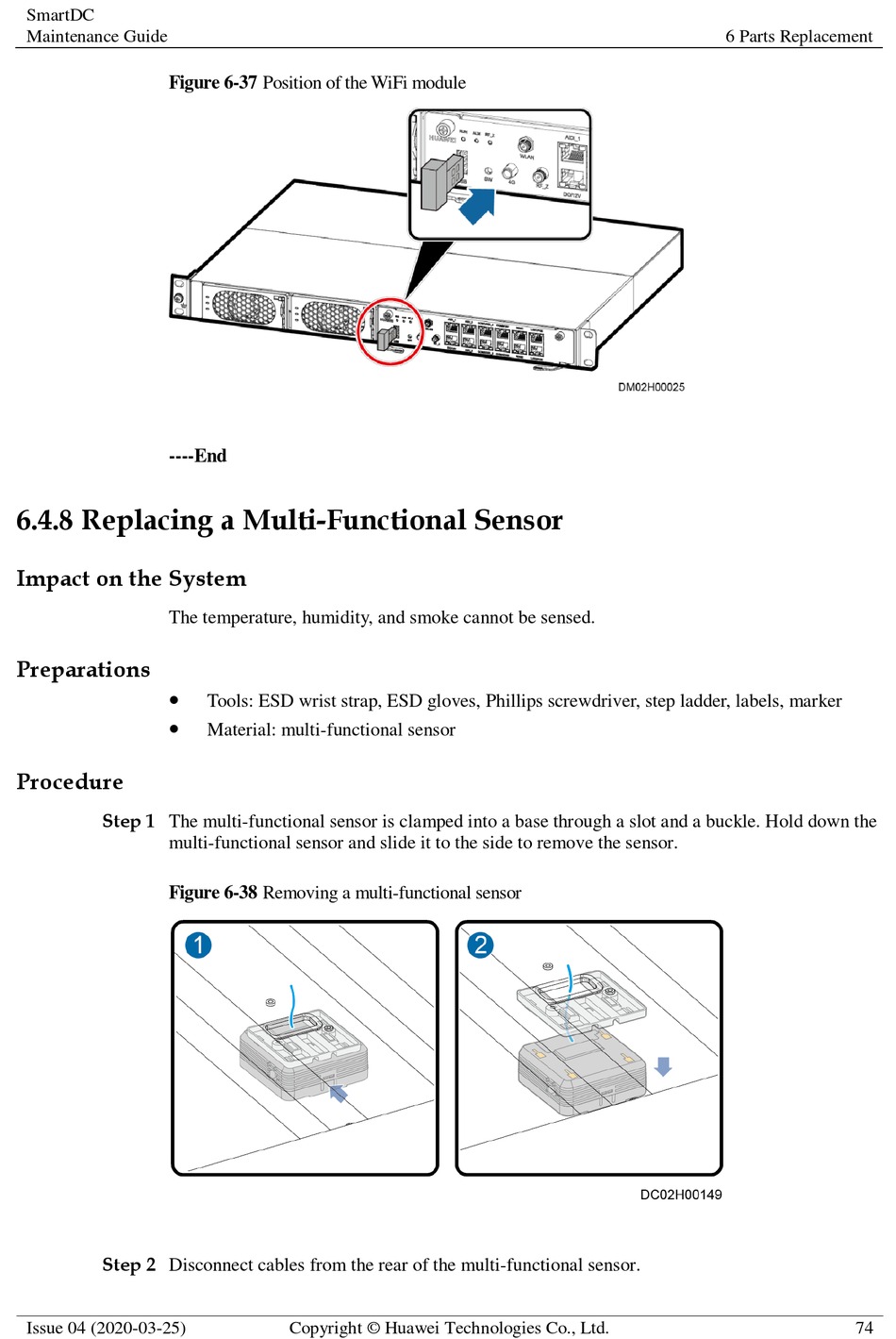

Figure 6-37 Position of the WiFi module

----End

6.4.8 Replacing a Multi-Functional Sensor

Impact on the System

The temperature, humidity, and smoke cannot be sensed.

Preparations



Procedure

Step 1 The multi-functional sensor is clamped into a base through a slot and a buckle. Hold down the

multi-functional sensor and slide it to the side to remove the sensor.

Figure 6-38 Removing a multi-functional sensor

Step 2 Disconnect cables from the rear of the multi-functional sensor.

Issue 04 (2020-03-25)

Tools: ESD wrist strap, ESD gloves, Phillips screwdriver, step ladder, labels, marker

Material: multi-functional sensor

6 Parts Replacement
