Step 4 Connect the magnetic lock cable to the new magnetic lock, and secure the magnetic lock to

the fixing plate using the delivered hex key, as shown in

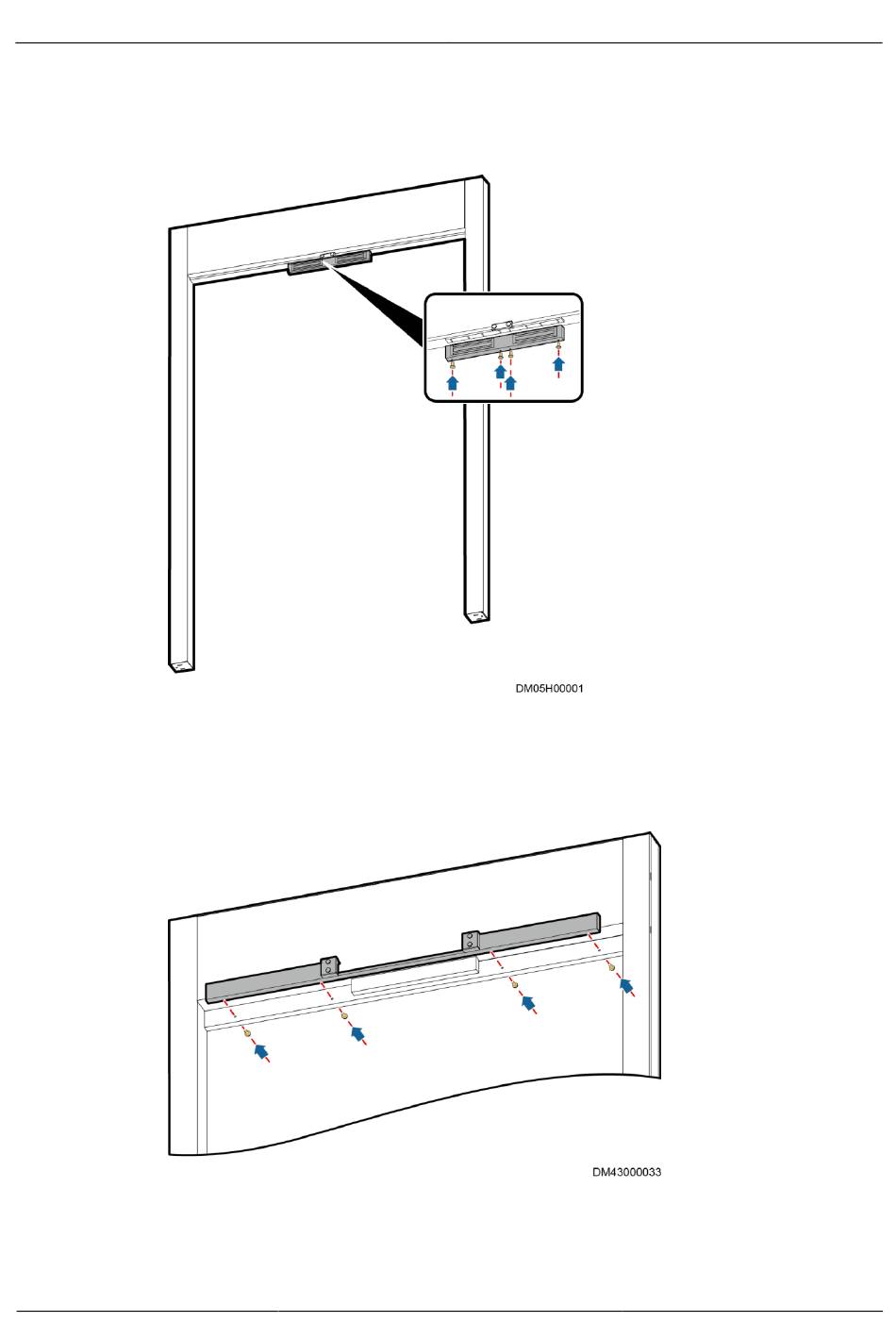

Figure 6-27 Installing a magnetic lock

Step 5 Install the mounting plate of the magnetic lock cover, as shown in

Figure 6-28 Installing the mounting plate of a magnetic lock cover

Step 6 Replace the magnet.

Issue 04 (2020-03-25)

6 Parts Replacement

Figure

6-27.

Figure

6-28.
