SmartDC

Maintenance Guide

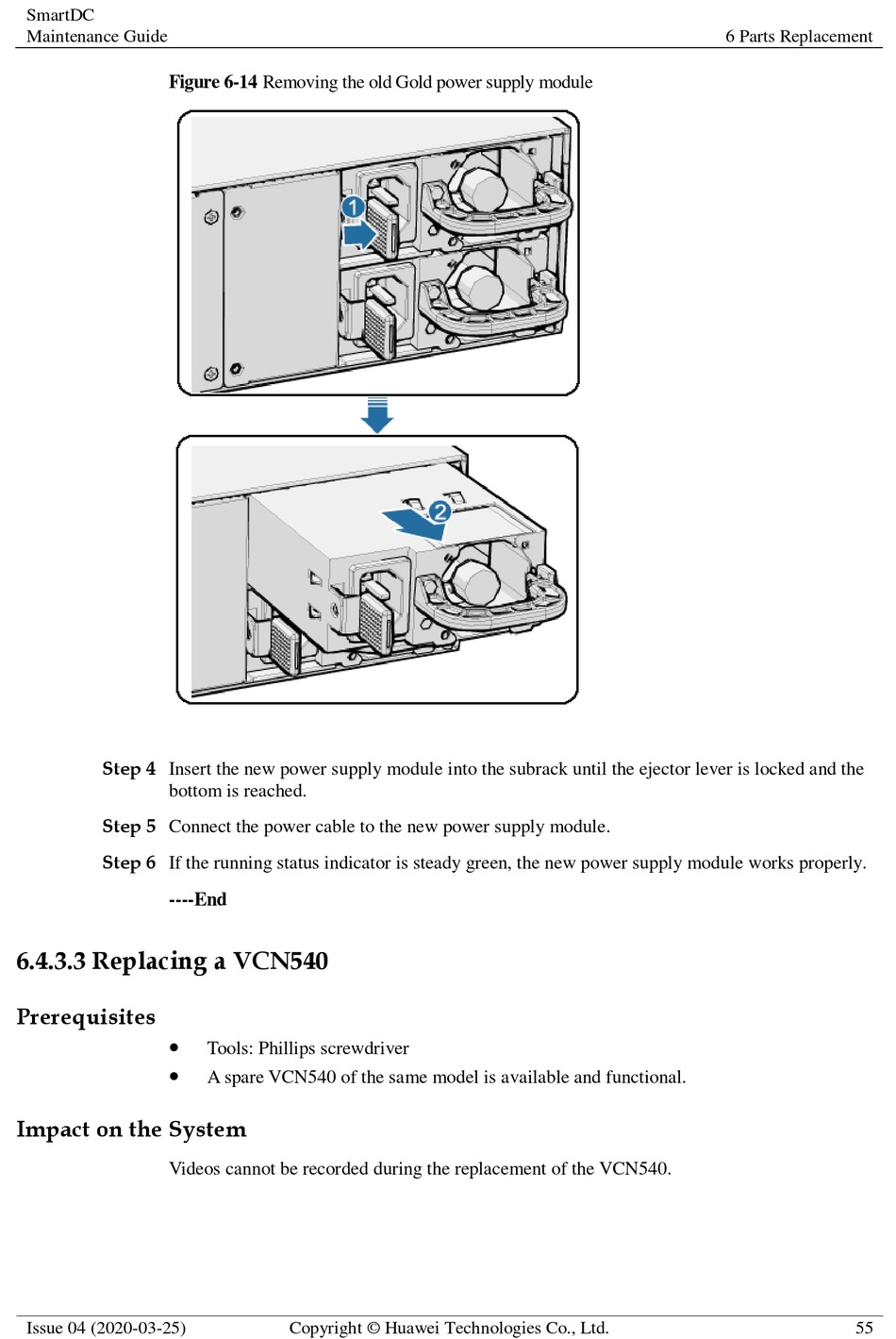

Figure 6-14 Removing the old Gold power supply module

Step 4 Insert the new power supply module into the subrack until the ejector lever is locked and the

bottom is reached.

Step 5 Connect the power cable to the new power supply module.

Step 6 If the running status indicator is steady green, the new power supply module works properly.

----End

6.4.3.3 Replacing a VCN540

Prerequisites



Impact on the System

Videos cannot be recorded during the replacement of the VCN540.

Issue 04 (2020-03-25)

Tools: Phillips screwdriver

A spare VCN540 of the same model is available and functional.

6 Parts Replacement
