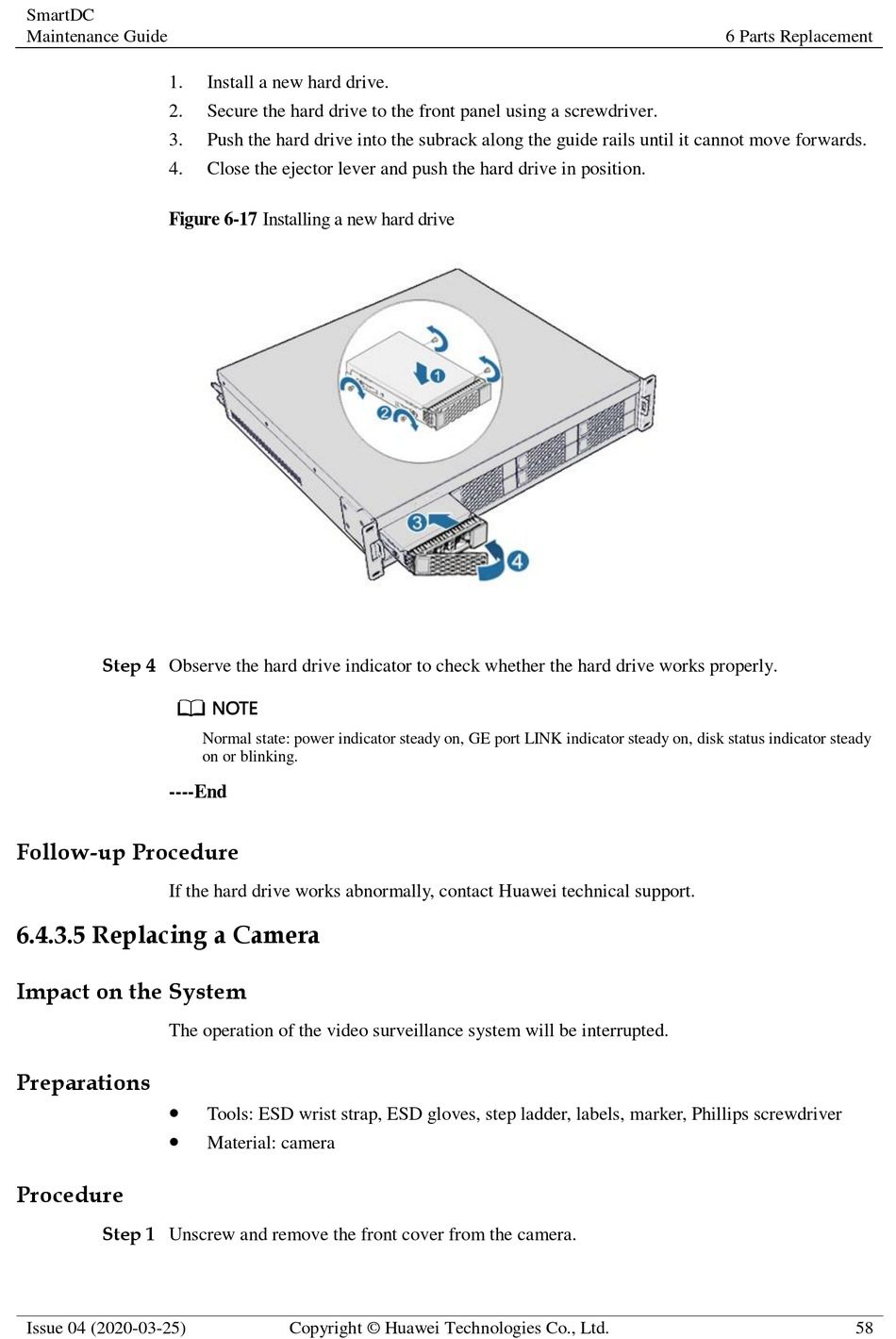

Figure 6-17 Installing a new hard drive
Step 4 Observe the hard drive indicator to check whether the hard drive works properly.
----End
Follow-up Procedure
If the hard drive works abnormally, contact Huawei technical support.

6.4.3.5 Replacing a Camera

Impact on the System
The operation of the video surveillance system will be interrupted.
Preparations


Procedure
Step 1 Unscrew and remove the front cover from the camera.
Issue 04 (2020-03-25)
Install a new hard drive.
Secure the hard drive to the front panel using a screwdriver.
Push the hard drive into the subrack along the guide rails until it cannot move forwards.
Close the ejector lever and push the hard drive in position.
Normal state: power indicator steady on, GE port LINK indicator steady on, disk status indicator steady
on or blinking.
Tools: ESD wrist strap, ESD gloves, step ladder, labels, marker, Phillips screwdriver
Material: camera
