SmartDC

Maintenance Guide

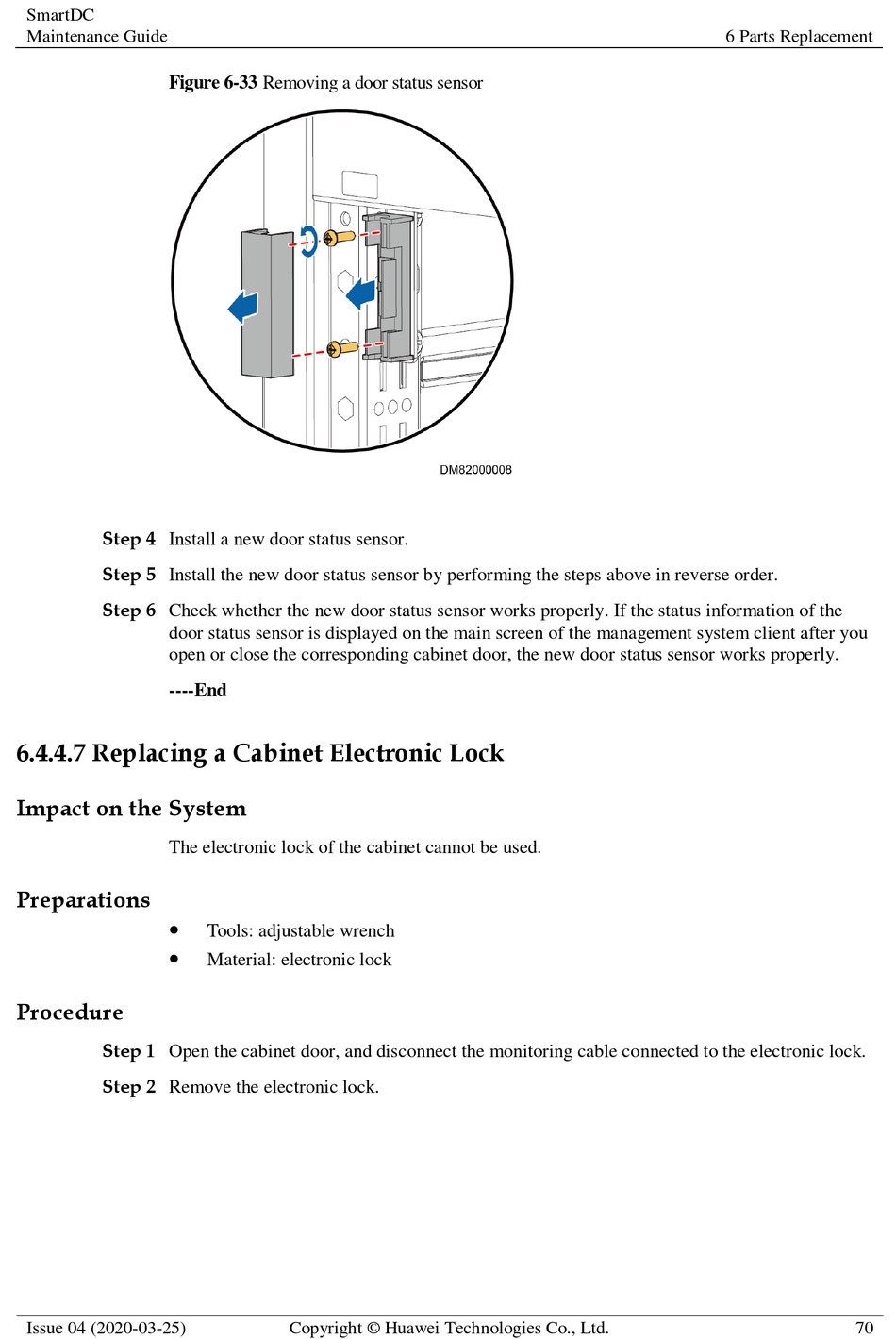

Figure 6-33 Removing a door status sensor

Step 4 Install a new door status sensor.

Step 5 Install the new door status sensor by performing the steps above in reverse order.

Step 6 Check whether the new door status sensor works properly. If the status information of the

door status sensor is displayed on the main screen of the management system client after you

open or close the corresponding cabinet door, the new door status sensor works properly.

----End

6.4.4.7 Replacing a Cabinet Electronic Lock

Impact on the System

The electronic lock of the cabinet cannot be used.

Preparations



Procedure

Step 1 Open the cabinet door, and disconnect the monitoring cable connected to the electronic lock.

Step 2 Remove the electronic lock.

Issue 04 (2020-03-25)

Tools: adjustable wrench

Material: electronic lock

6 Parts Replacement
