SmartDC

Maintenance Guide

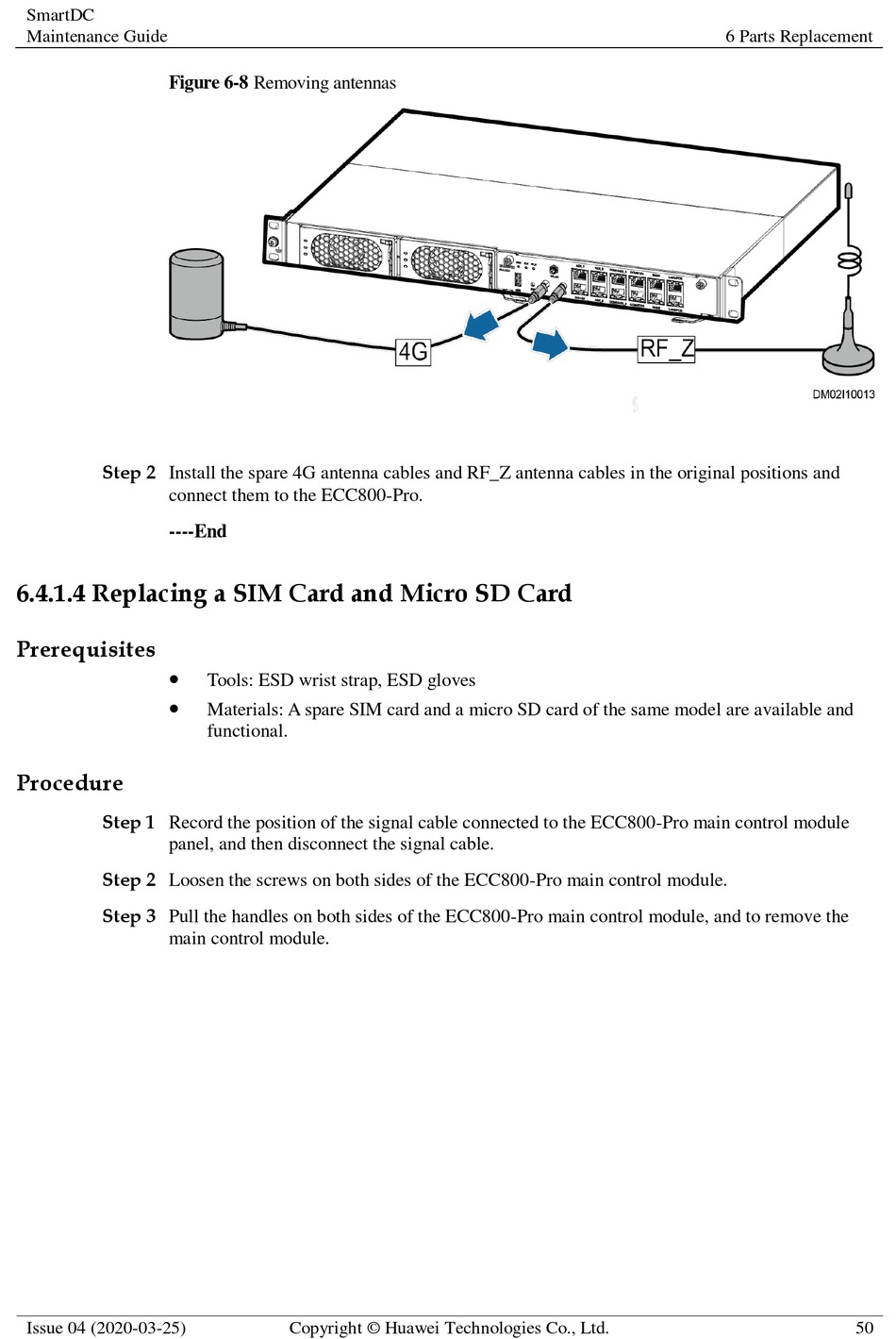

Figure 6-8 Removing antennas

Step 2 Install the spare 4G antenna cables and RF_Z antenna cables in the original positions and

connect them to the ECC800-Pro.

----End

6.4.1.4 Replacing a SIM Card and Micro SD Card

Prerequisites



Procedure

Step 1 Record the position of the signal cable connected to the ECC800-Pro main control module

panel, and then disconnect the signal cable.

Step 2 Loosen the screws on both sides of the ECC800-Pro main control module.

Step 3 Pull the handles on both sides of the ECC800-Pro main control module, and to remove the

main control module.

Issue 04 (2020-03-25)

Tools: ESD wrist strap, ESD gloves

Materials: A spare SIM card and a micro SD card of the same model are available and

functional.

6 Parts Replacement
