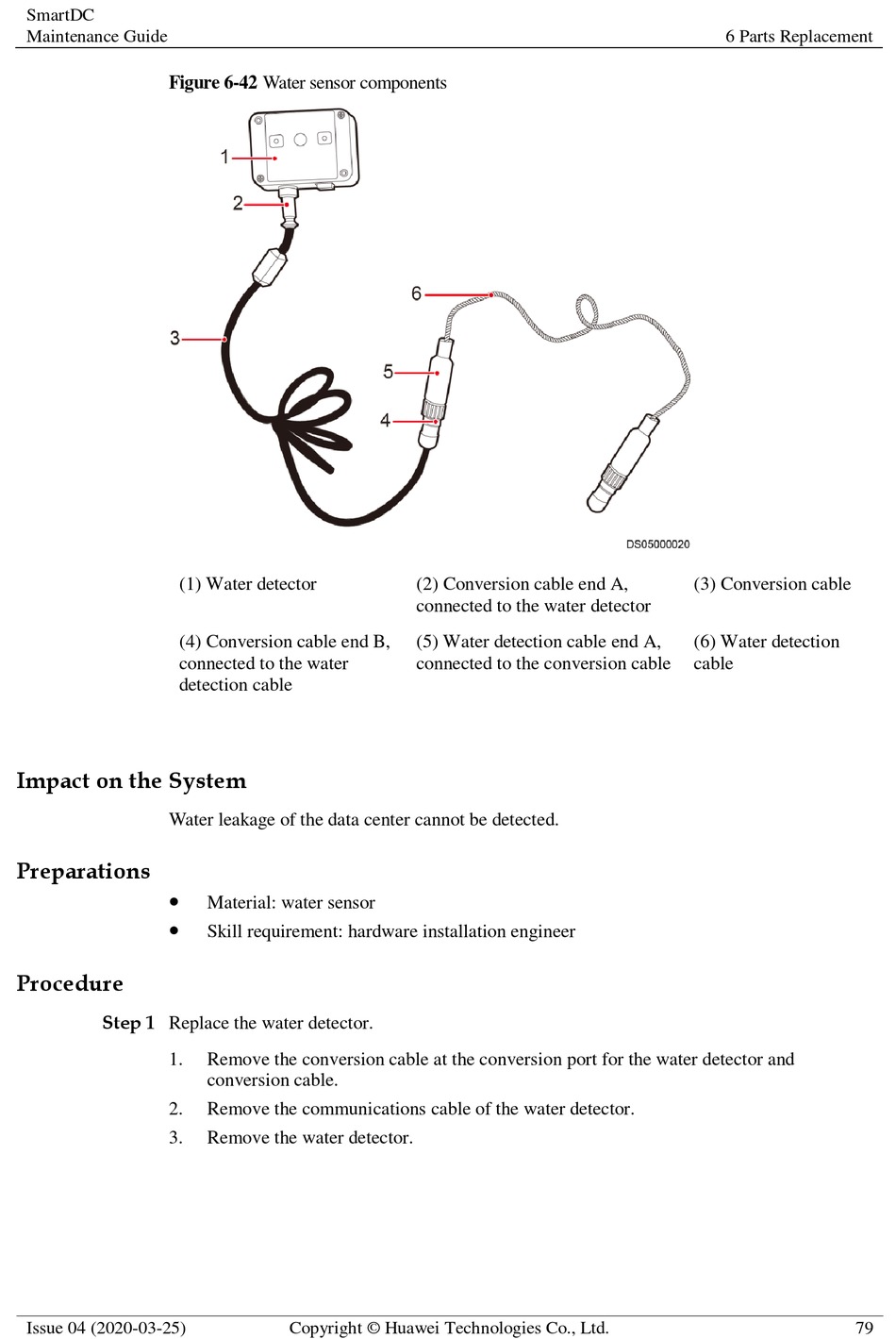

Figure 6-42 Water sensor components
(1) Water detector
(4) Conversion cable end B,
connected to the water
detection cable
Impact on the System
Water leakage of the data center cannot be detected.
Preparations


Procedure
Step 1 Replace the water detector.
1.
2.
3.
Issue 04 (2020-03-25)
Material: water sensor
Skill requirement: hardware installation engineer
Remove the conversion cable at the conversion port for the water detector and
conversion cable.
Remove the communications cable of the water detector.
Remove the water detector.
Copyright © Huawei Technologies Co., Ltd.
(2) Conversion cable end A,
connected to the water detector
(5) Water detection cable end A,
connected to the conversion cable
