SmartDC

Maintenance Guide

Name

Pad power connector holder

Impact on the System

The pad cannot be charged.

Preparations



Procedure

Step 1 Switch off the upstream power circuit breaker of the pad power connector.

Step 2 Remove the baffle plate under the power connector.

Step 3 Remove the charging cable from the power connector.

Step 4 Remove the pad power connector and its holder from the door box.

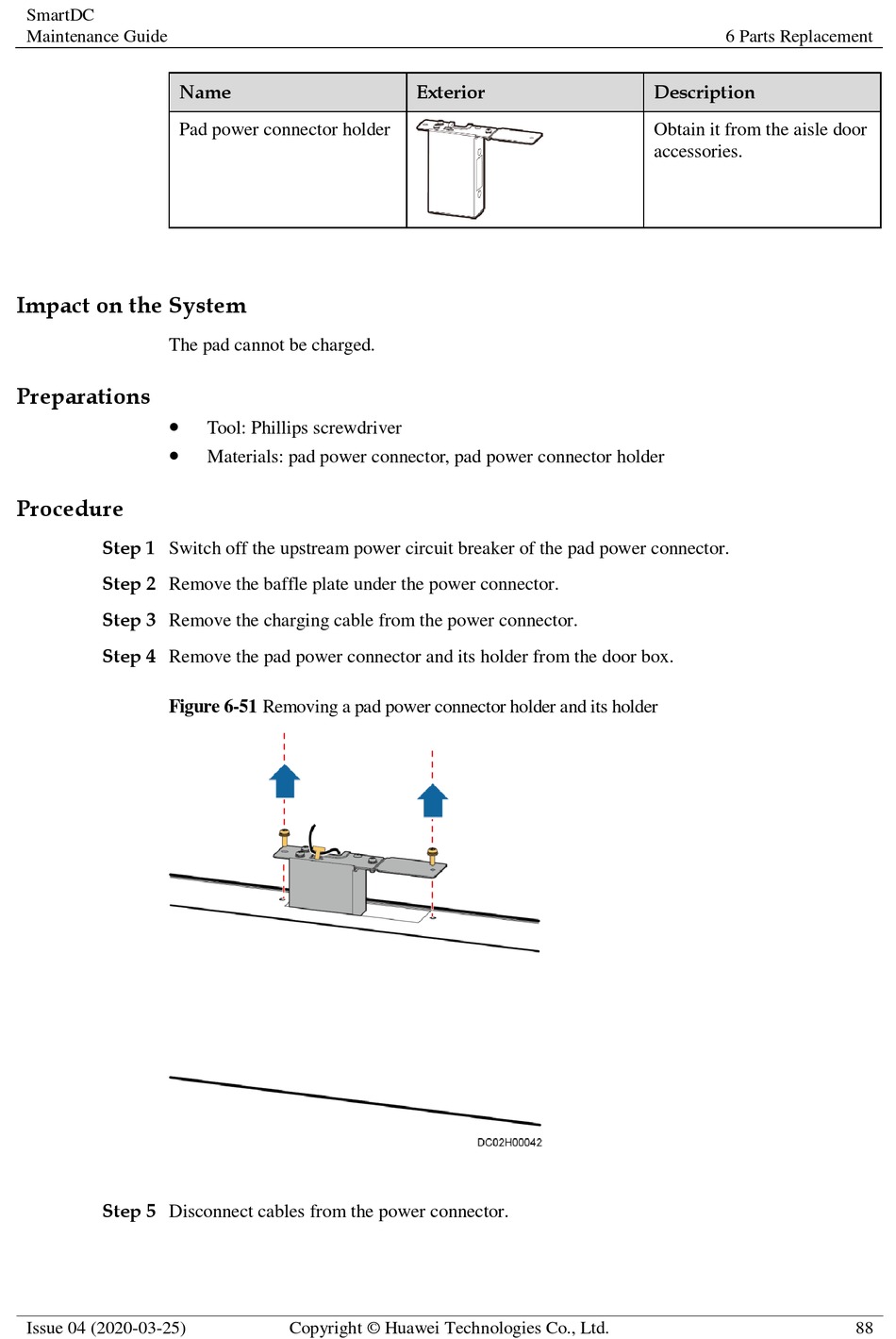

Figure 6-51 Removing a pad power connector holder and its holder

Step 5 Disconnect cables from the power connector.

Issue 04 (2020-03-25)

Tool: Phillips screwdriver

Materials: pad power connector, pad power connector holder

Exterior

6 Parts Replacement

Description

Obtain it from the aisle door

accessories.
