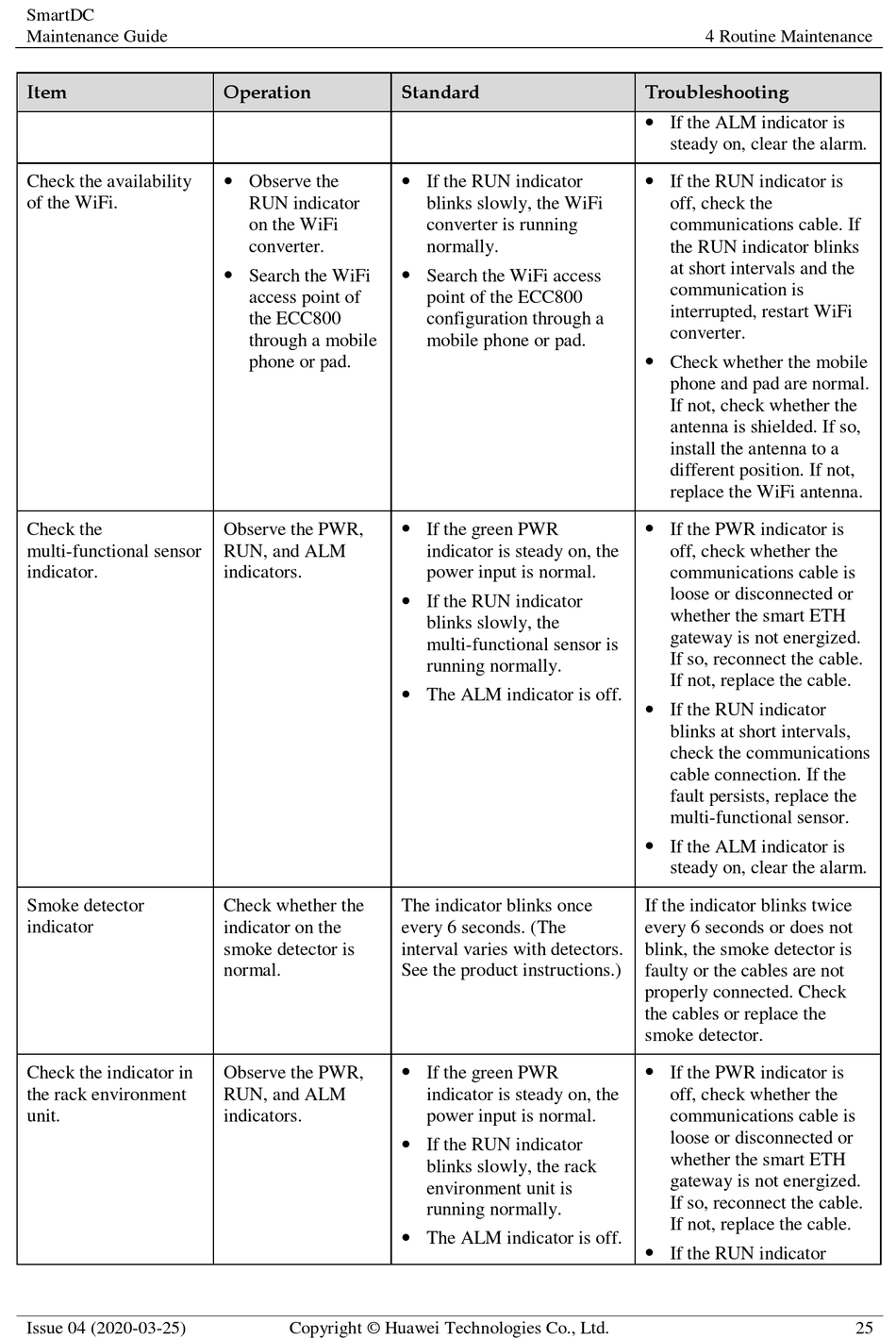

Huawei FusionModule5000 Smart Modular Data Center Maintenance Manual page 32

SmartDC
Maintenance Guide
Item
Check the availability
of the WiFi.
Check the
multi-functional sensor
indicator.
Smoke detector
indicator
Check the indicator in
the rack environment
unit.
Issue 04 (2020-03-25)
Operation
 Observe the
RUN indicator
on the WiFi
converter.
 Search the WiFi
access point of
the ECC800
through a mobile
phone or pad.
Observe the PWR,
RUN, and ALM
indicators.
Check whether the
indicator on the
smoke detector is
normal.
Observe the PWR,
RUN, and ALM
indicators.
Copyright © Huawei Technologies Co., Ltd.
Standard
 If the RUN indicator
blinks slowly, the WiFi
converter is running
normally.
 Search the WiFi access
point of the ECC800
configuration through a
mobile phone or pad.
 If the green PWR
indicator is steady on, the
power input is normal.
 If the RUN indicator
blinks slowly, the
multi-functional sensor is
running normally.
 The ALM indicator is off.
The indicator blinks once
every 6 seconds. (The
interval varies with detectors.
See the product instructions.)
 If the green PWR
indicator is steady on, the
power input is normal.
 If the RUN indicator
blinks slowly, the rack
environment unit is
running normally.
 The ALM indicator is off.
4 Routine Maintenance
Troubleshooting
 If the ALM indicator is
steady on, clear the alarm.
 If the RUN indicator is
off, check the
communications cable. If
the RUN indicator blinks
at short intervals and the
communication is
interrupted, restart WiFi
converter.
 Check whether the mobile
phone and pad are normal.
If not, check whether the
antenna is shielded. If so,
install the antenna to a
different position. If not,
replace the WiFi antenna.
 If the PWR indicator is
off, check whether the
communications cable is
loose or disconnected or
whether the smart ETH
gateway is not energized.
If so, reconnect the cable.
If not, replace the cable.
 If the RUN indicator
blinks at short intervals,
check the communications
cable connection. If the
fault persists, replace the
multi-functional sensor.
 If the ALM indicator is
steady on, clear the alarm.
If the indicator blinks twice
every 6 seconds or does not
blink, the smoke detector is
faulty or the cables are not
properly connected. Check
the cables or replace the
smoke detector.
 If the PWR indicator is
off, check whether the
communications cable is
loose or disconnected or
whether the smart ETH
gateway is not energized.
If so, reconnect the cable.
If not, replace the cable.
 If the RUN indicator
25
