7.8.

Terminal window

This general purpose terminal is created mainly for testing and debugging purposes. After
a successful connection is established with a device this terminal can be used either via
serial RS-232 or TCP/IP LAN connection. The command text can be typed directly. Press
Terminal button in the right bottom corner to open the window.
By default commands are automatically surrounded by framing brackets. Every sent
command is red-colored and gets a '>' prefix. Received responses are blue-colored and
starts with '<'.
The timecode in every row shows the exact time when the command was sent or the
response received.
If the Command framing checkbox is unchecked, you can send multiple commands
together, however in this case you have to type in the framing brackets manually.
If the Autoscroll checkbox is checked, the window is scrolled down automatically when a
new row is added.
The window can be emptied by pressing the Clear button.
Page 80 / 136

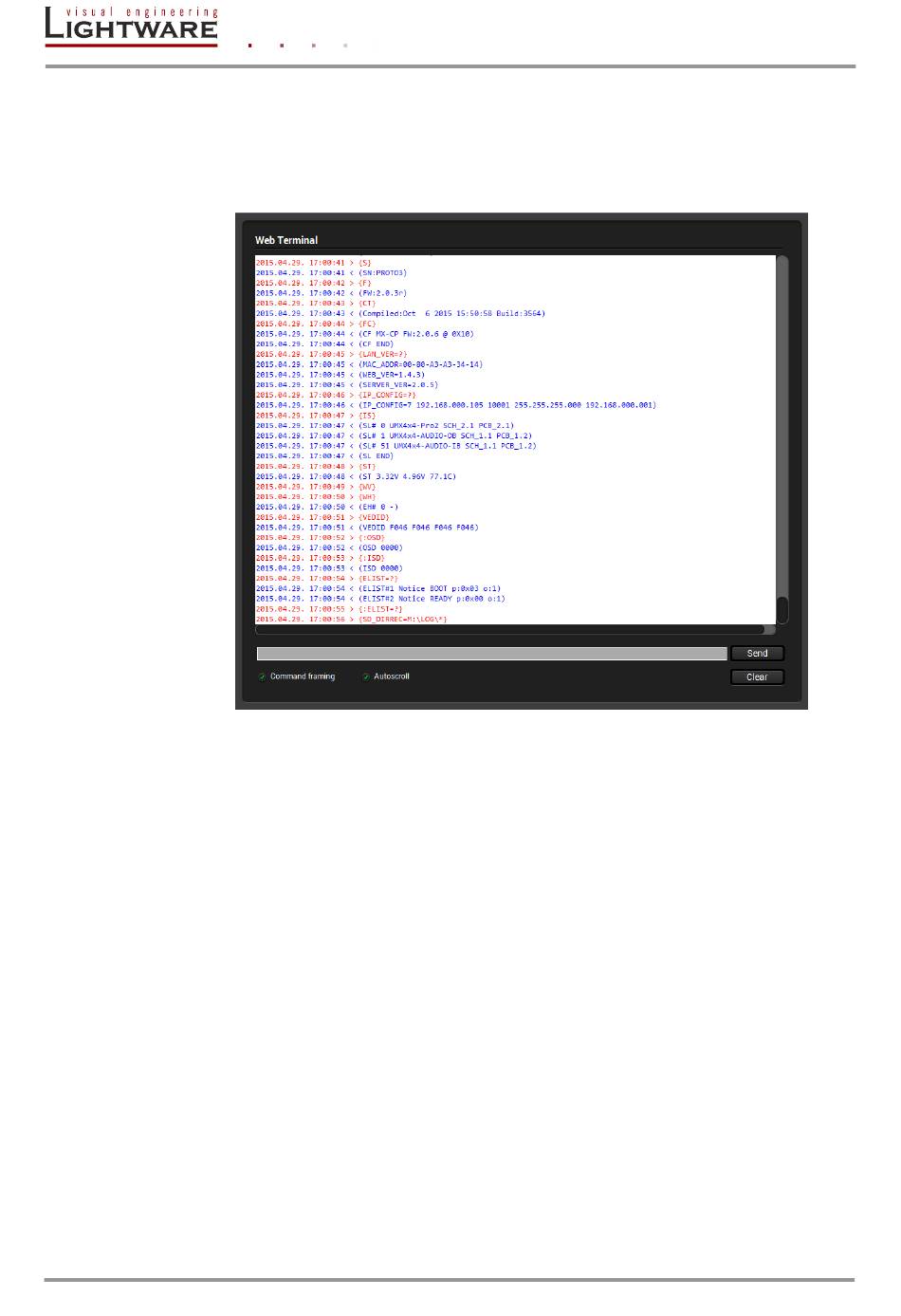

Figure 7-21. Terminal window
