7.5.3. Input parameter settings
For UMX4x4-Pro2 matrices the input port settings are displayed in a new window with the
available functions.
By clicking on a port number on the Grid view, or on the Parameters button on the Tile
view, a dialog window appears showing the parameters for the corresponding port.

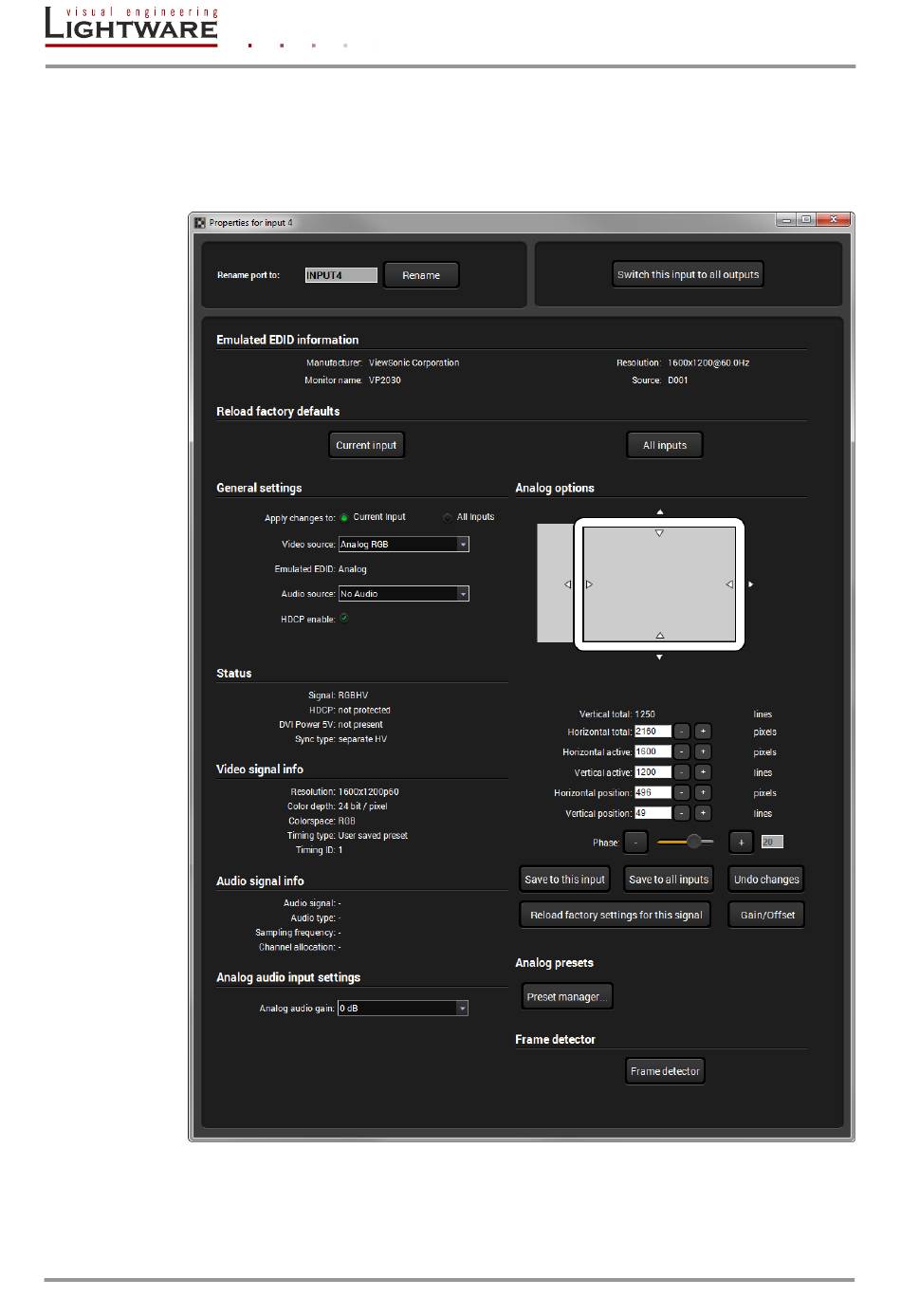

Figure 7-7. Input parameter window
Info:
If the video source setting is Digital or the incoming signal is digital (DVI or HDMI) the
Analog options are missing from the port properties window.
Section 7. Software control –Lightware Device Controller and Web
Page 64 / 136
