7.5.4. Output parameter settings

For UMX4x4-Pro2 matrices the output port settings are displayed in a new window with
the available functions.
By clicking on a port number on the Grid view, or on the Parameters button on the Tile
view, a dialog window appears showing the parameters for the corresponding port.
Scope of changes
There are two options to apply changes. To set the scope of the changed settings, select
the desired option in the top left box.
Apply changes to current output: this option means the modified parameters are
applied only to the currently selected port.
Apply changes to all outputs: this option means that the modified parameters are
applied to all output ports.
When opening this window again, the scope selection will be set to "Current Output"
Info:
regardless of the active selection at the time of closing. It is to avoid making changes to
all outputs by mistake.
Reload factory defaults
Current output: Reloads the default values to the currently selected output.
All outputs: Loads the factory default values to all outputs.
Rename port
To help memorizing the connected sources and destinations, names can be assigned to
inputs and outputs. I/O names can be maximum 15 characters long, and consist of
alphanumeric characters (lowercase letters, uppercase letters and numbers). All lower
case characters are converted to uppercase ones.
The text box contains the current name of the port. To rename it, click into the text box,
type the new name then click on the Rename button.
Section 7. Software control –Lightware Device Controller and Web

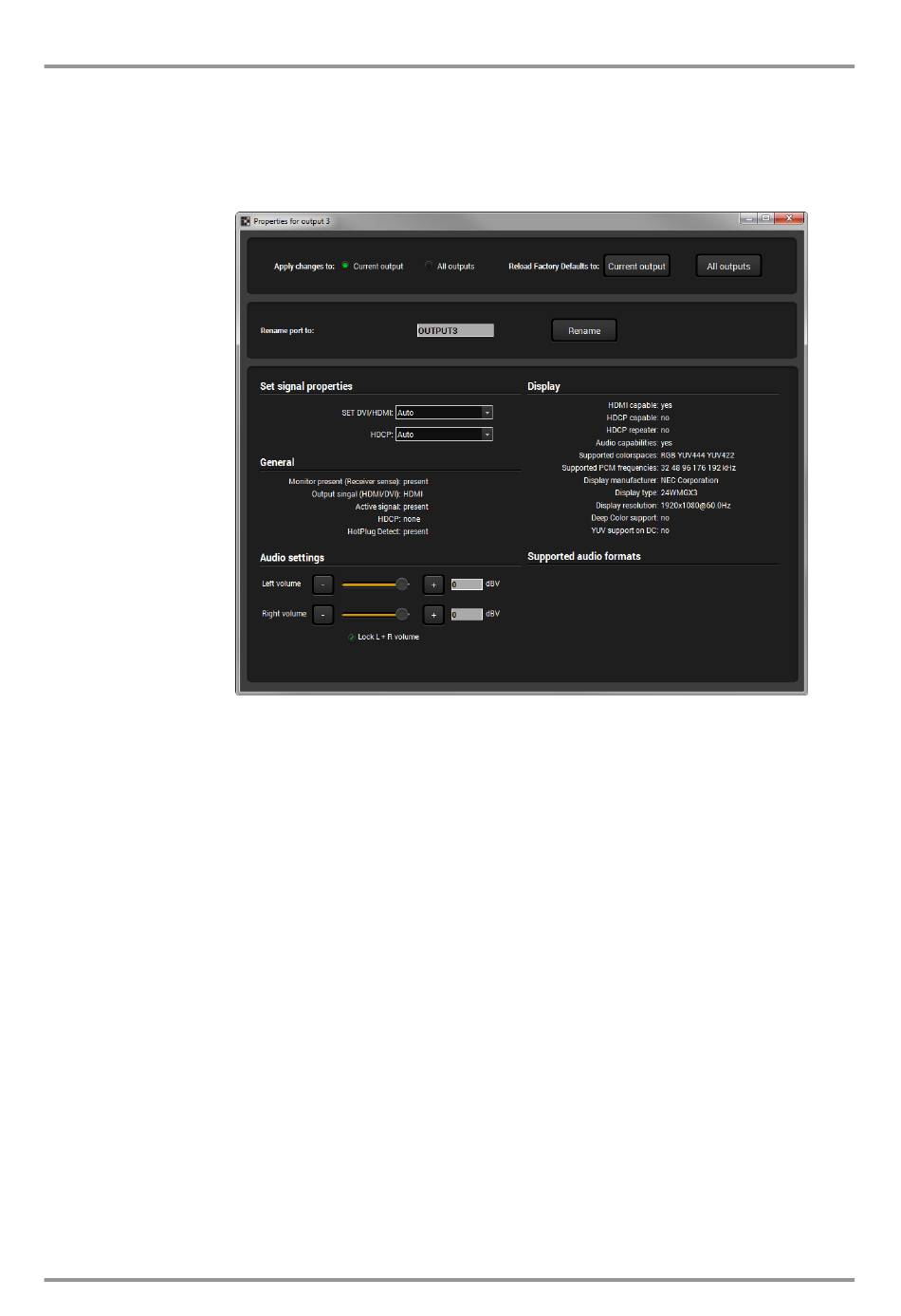

Figure 7-10. Output parameters
