EDID Summary window
Select an EDID from Source panel and press Info button to display EDID summary.
Editing an EDID
Select an EDID from Source panel and press Edit button to display Advanced EDID
Editor window. The editor can read and write all descriptors, which are defined in the
standards, including the additional CEA extensions. Any EDID from the device's memory
or a saved EDID file can be loaded in the editor. The software resolves the raw EDID,
and displays it as readable information to the user. All descriptors can be edited, and
saved in an EDID file, or uploaded to the User memory.
Section 7. Software control –Lightware Device Controller and Web

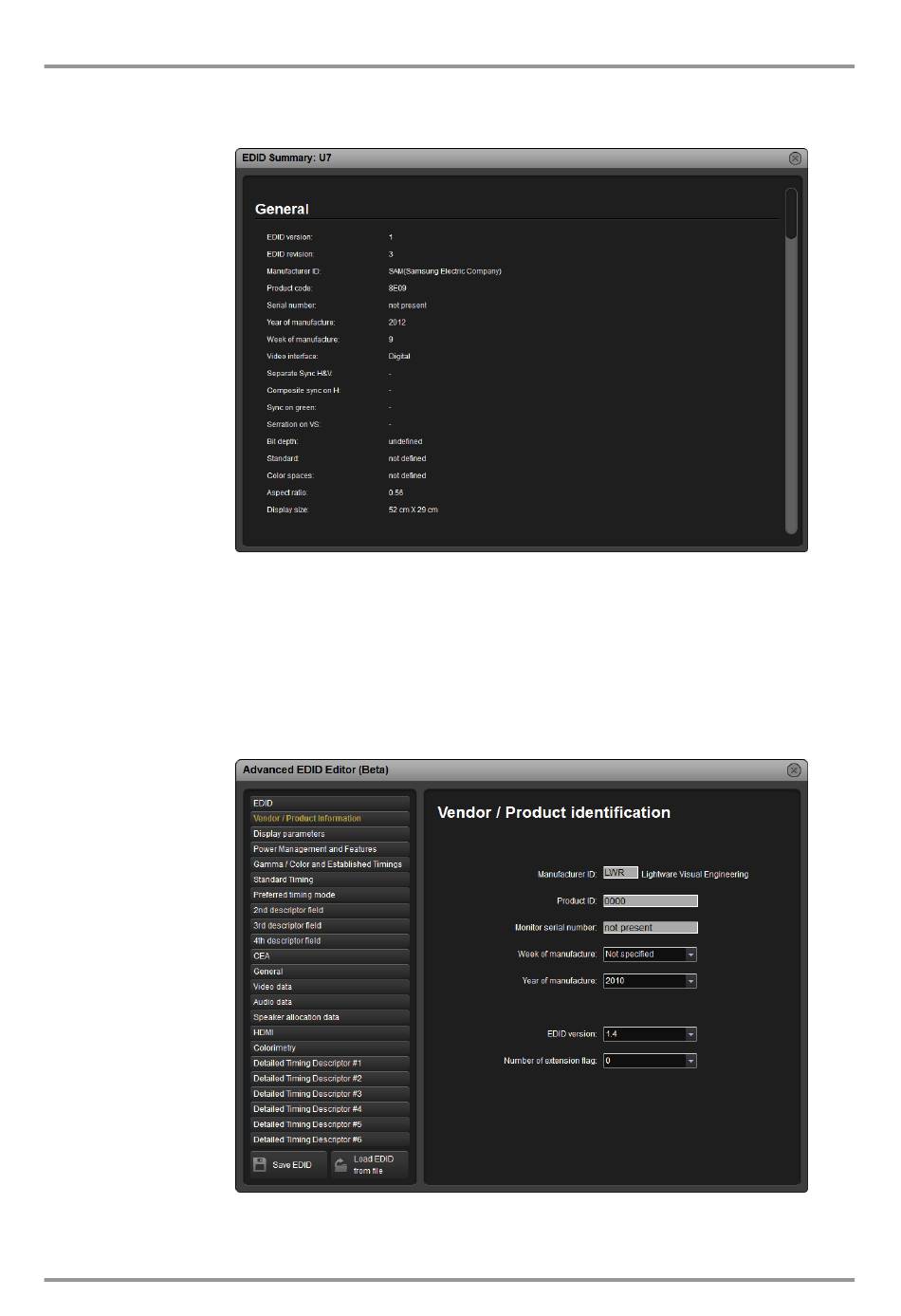

Figure 7-14. EDID Summary
Figure 7-15. Advanced EDID Editor
UMX4x4-Pro2
User's Manual
Page 75 / 136
