Set factory default values for all I/O ports
Input and output ports have many properties and they also have factory default values.
To reset all of them click on the Set factory defaults button.
The table below contains the exact commands, which are called by pressing of the
button.
7.6.
EDID menu
Advanced EDID Management can be accessed by selecting EDID menu.
There are two panels: left one contains Source EDIDs, right one contains Destination
places where the EDIDs can be emulated. The list can be scrolled by mouse wheel or by
grabbing and moving up and down.
Info:
The built-in website and the Lightware Device Controller software have same functions
but the website does not support EDID info, Easy EDID creator and EDID editor.
Section 7. Software control –Lightware Device Controller and Web
Set factory defaults

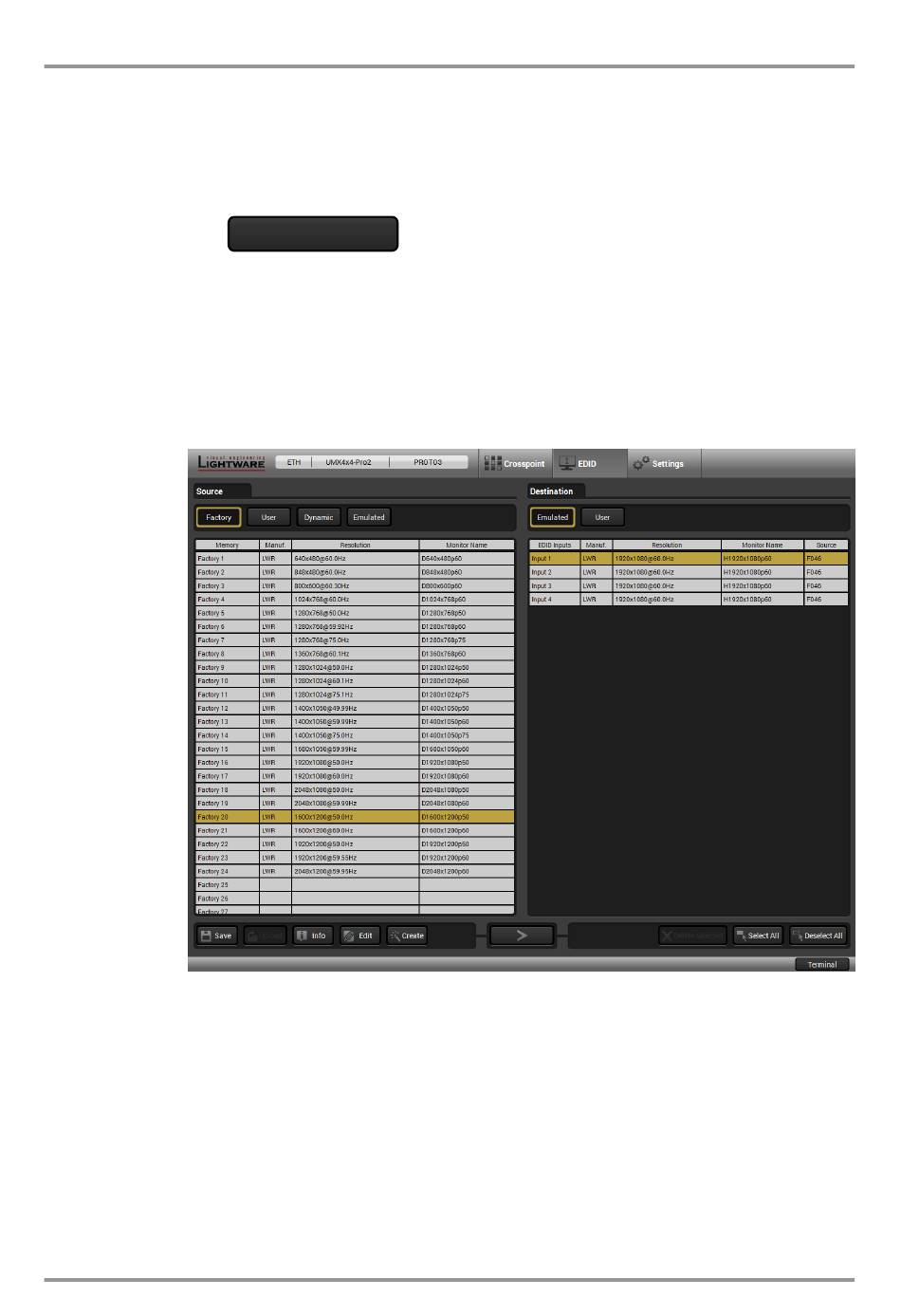

Figure 7-13. EDID management
{:DVII#1@AI=FACTORY}
{:ADC#1@AI=FACTORY}
{:ANALOG#1@AI=RESET}
{:PICTURE#1@AI=FACTORY}
{SETBG=FACTORY}
{:HDMI#1@AO=FACTORY}
{:AUDIO#1@AO= FACTORY}
UMX4x4-Pro2
User's Manual
Page 73 / 136
