Info: Some devices are able to make only one connection via Ethernet. If there is a live
connection between the device and another computer, the device discovery will
recognize it. In this case the lines of these kinds of devices are grey instead of white, and
there is no possibility to make connection with them.
Step 3. Click on the Connect button to connect to the device
Info: The controller software can communicate only with Lightware protocol. If the matrix router
is set to other protocol, the software will ask to set the protocol.
If the router is not listed in the "available devices on Ethernet" box, try searching again, or
Info:
see the troubleshooting guide in the user's guide of the device.
Info: Be sure that the firewall is not blocking the application!
Info: For RS-232 connection, the router has to use 9600 or 57600 baud rate. The controller
software determines the baud rate automatically.
Section 7. Software control –Lightware Device Controller and Web
router from the drop-down list. If you are unsure which one to use, try to search
for devices on all of them.
If the connection has been made via serial port, the device type and serial
number can be inquired by double clicking the appropriate port, or it can be
highlighted with a single click.

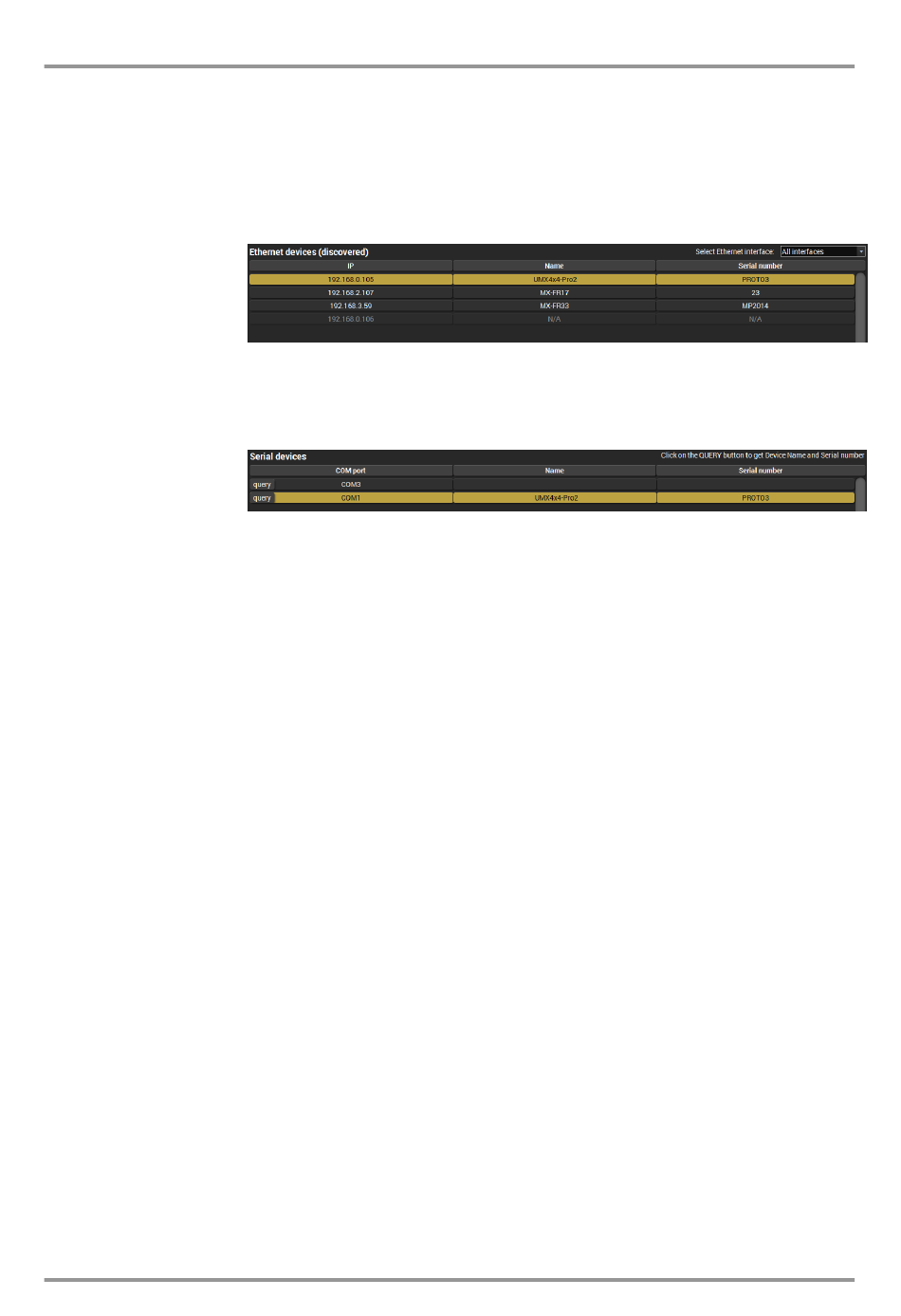

Figure 7-2. Ethernet connection
Figure 7-3. Serial connection
