Controller window
After the establishing of the connection, the usage of the LDC and the Web is the same.
When the hardware was found, GUI determines the product type, and the controller starts
with the default page. (Grid or Tile view, it depends on the user settings)
5
6
1
Information ribbon
Crosspoint menu
2
EDID menu
3
Settings menu
4
Tab selector ribbon
5
6
Working area
7
Terminal
Section 7. Software control –Lightware Device Controller and Web
1

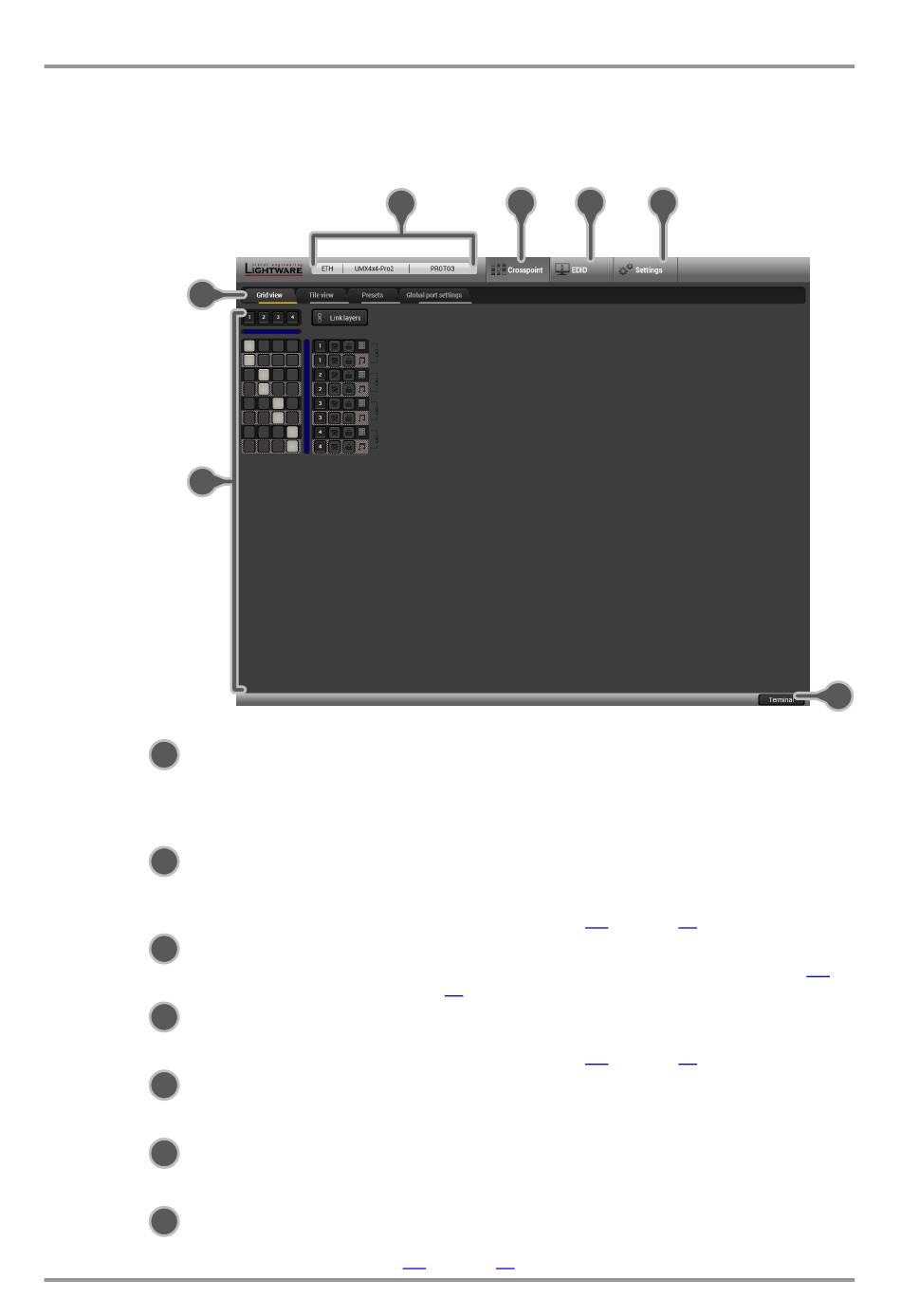

Figure 7-4. Grid view as factory default start page of the LDC
This label shows the interface type, the name and the serial
number of the connected device. If the device has more than
one interface, the ribbon shows only that one, which has
made the connection. The device discovery window can be
started by clicking on this ribbon.
This menu contains both of the crosspoint areas, the preset
area and the genlock settings. After connecting to a device,
this menu appears by default with the Grid view. (For more
information, see section
Advanced EDID Management can be accessed by selecting
the EDID menu. (For more information, see section
page 73.)
The settings menu contains Hardware- and Software-related
settings and information about connected device. (For more
information, see section
The crosspoint and the settings menu contain more than one
tabs. Click to the desired one to select it. The yellow line
shows that which tab is the active one.
The working area shows the content of the selected tab of
the selected menu. The content depends on the device type,
the menu and tab selections.
This general-purpose terminal is created mainly for testing
and debugging purposes. (For more information, see section
7.8
on page 80.)
2
3
4
7.5
on page 58.)
7.7
on page 76.)
UMX4x4-Pro2
User's Manual
7
7.6
on
