3. Controls and connections
3.1.
Front view
Control lock
Source buttons
8
Output lock
9
1
Status LEDs
2
Menu navigation
3
Menu display
4
Function buttons
5
Layer select
6
Source buttons
7
Destination buttons
8
Control lock
9
Output lock
Page 12 / 136
Layer select
6
5
Destination buttons
7

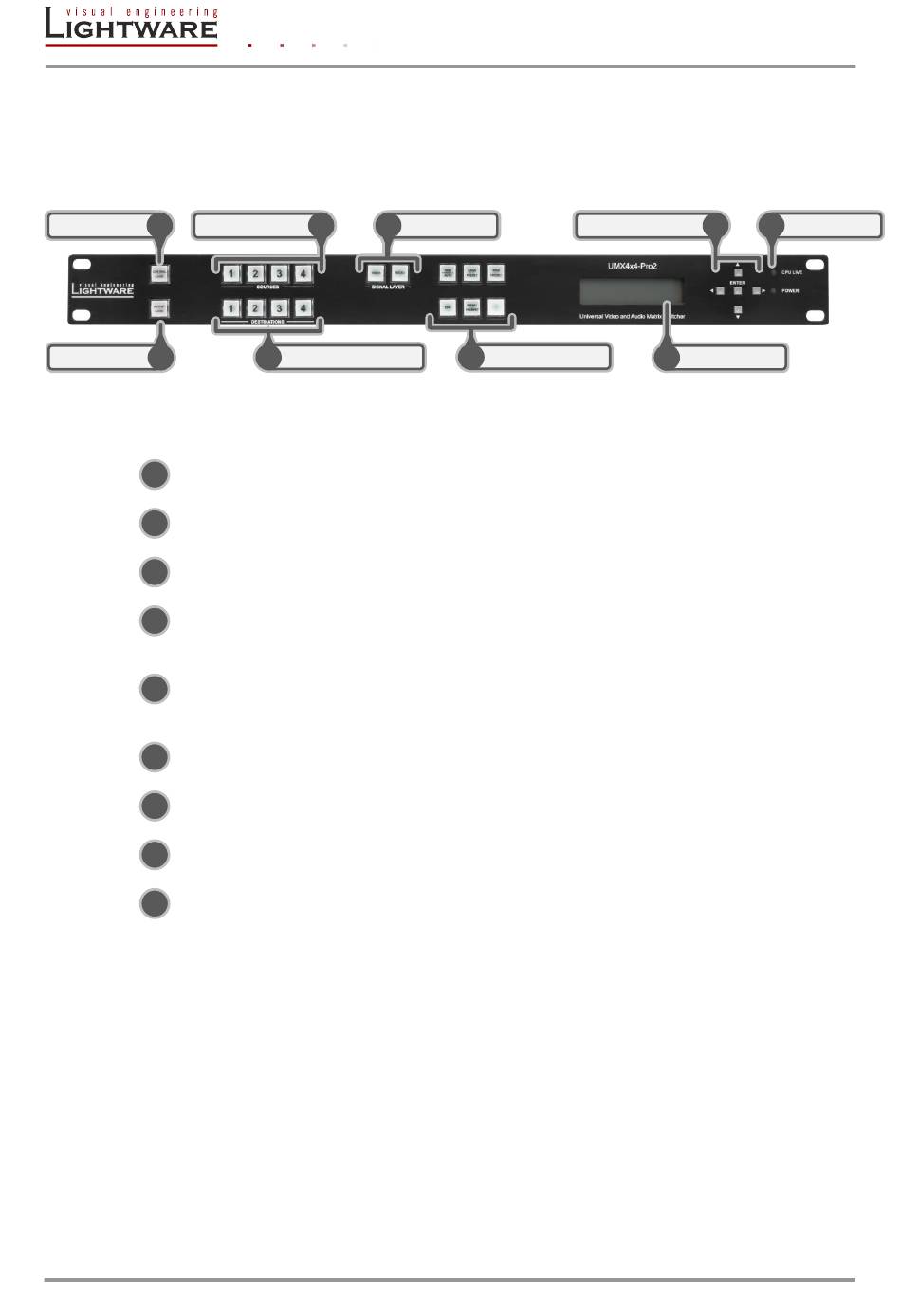

Figure 3-1. UMX4x4-Pro2 front view
POWER LED indicates that the unit is powered on and CPU
LIVE blinking LED indicates normal operation.
(UP, DOWN, LEFT, RIGHT, ENTER) buttons for menu
navigation.
2x16-character LCD display with backlight for menu operations
and settings.
Switching between working modes (Normal / EDID / Signal
present, Take / Autotake) and Preset operations are available
with the Function buttons.
Audio and video signals are placed on different layers so they
can be switched separately or at the same time. Layer select
buttons chose the desired signal(s) to be switched.
Source buttons have three functions: select an input, select a
preset number and view the selected input's state (take mode).
Destination buttons have two functions: select an output, or
view the selected output's state.
Disables or enables front panel operation. When it illuminates
red, operations on front panel are prohibited.
Locks and protects one (or more) outputs. It inhibits accidental
input changing on protected outputs.
Menu navigation
Function buttons
4
Section 3. Controls and connections
Status LEDs
2
1
Menu display
3
