3.4.

Electrical connections

3.4.1. DVI inputs and outputs

DVI Inputs
UMX4x4-Pro2 matrix switchers provide standard 29 pole DVI-I connectors for inputs. This
way, users can plug in any DVI connector, but keep in mind that analog signals (such as
VGA or RGBHV) are processed only on the DVI inputs.
Always use high quality DVI cable for connecting sources and displays.
Pin
1
2
3
4
5
6
7
8
C1
C4
1
- These pins are connected only on the DVI inputs.
DVI outputs
29 pole DVI-I connectors for outputs have only digital pins internally connected. This way,
users can plug in any DVI connector, but keep in mind that analog signals (such as VGA
or RGBHV) are NOT available on the outputs.
Fiber Cable powering
DVI outputs are able to supply 500 mA current on DDC +5V output (pin 14 on output
connectors) which is sufficient to supply power to fiber optical DVI cables. Standard DVI
outputs usually supply only 55 mA current on +5V output, thus unable to directly power a
fiber optical cable.
Info: The matrix switcher does not check if the connected sink (monitor, projector or other
equipment) supports Hotplug or EDID signals but outputs the selected signal immediately
after switch command.
Section 3. Controls and connections
Signal
TMDS Data2-
TMDS Data2+
TMDS Data2 Shield
Not Connected inside
Not Connected inside
DDC Clock
DDC Data
1
Analog Vertical Sync
1
Analog Red
1
Analog Horizontal Sync

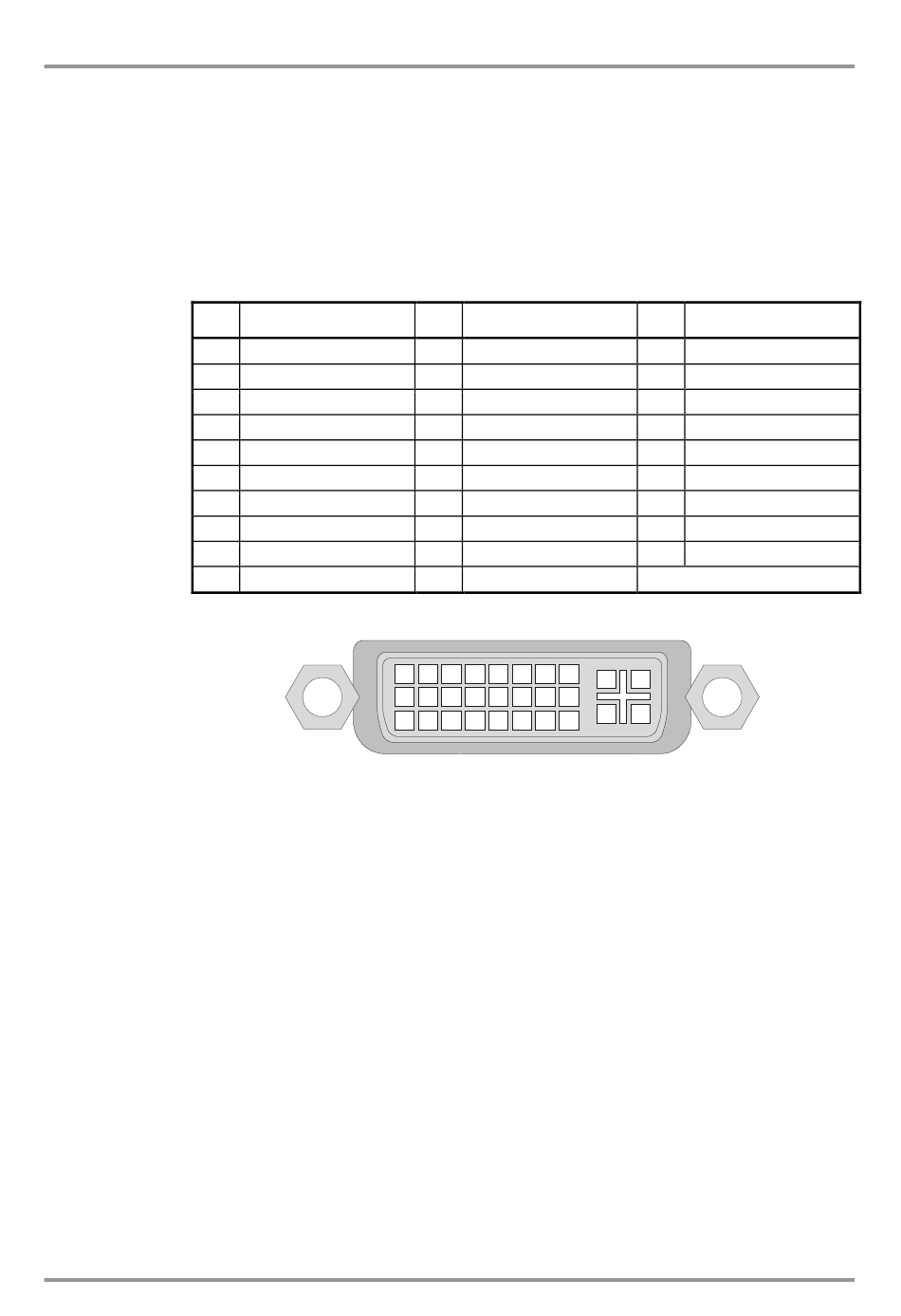

Table 3-1. DVI-I connector pin assignments
1
9 10 11
17 18 19
Pin Signal
9 TMDS Data1-
10 TMDS Data1+
11
TMDS Data1 Shield
12 Not Connected inside
13 Not Connected inside
14 +5V Power
15 GND (for +5V)
16 Hot Plug Detect
C2 Analog Green
C5 GND
2 3 4 5 6 7 8
12 13 14 15 16
22 23 24
20 21
Figure 3-4. DVI connector
UMX4x4-Pro2
User's Manual
Pin Signal
17 TMDS Data0-
18 TMDS Data0+
19
TMDS Data0 Shield
20 Not Connected inside
21 Not Connected inside
22 TMDS Clock Shield
23 TMDS Clock+
24 TMDS Clock-
1
C3 Analog Blue
C1 C2
C3
C4
C5
