7.5.5. Presets

Preset operations can be done in Crosspoint submenu on the Preset tab. Each Lightware
UMX4x4-Pro2 matrix switcher has 32 preset memories that can be loaded and saved at
any time.
Info: A preset setting stores a full configuration of all outputs, so preset loading have an effect
on every output, except the locked ones.
A preset can be selected by pressing its button on the left. Preview preset (on the right)
will show the crosspoint settings of input and output ports.
Loading a preset
Step 1. Select Preset tab from Crosspoint menu.
Step 2. Select the preset memory (Preset1...Preset32) you want to load as the next
Step 3. Press Load button below Preset preview list. Now the preset is loaded.
Step 4. The new I/O configuration is displayed in Grid view.
Saving a preset
Step 1. Make the desired crosspoint connections in Tile view or Grid view.
Step 2. Select the preset memory (Preset1...Preset32) where you want to save your
Step 3. Press Save button below Preset preview list.
Step 4. A confirmation message is displayed on the information bar; the preset is stored.
Section 7. Software control –Lightware Device Controller and Web
crosspoint configuration.
current crosspoint connections.

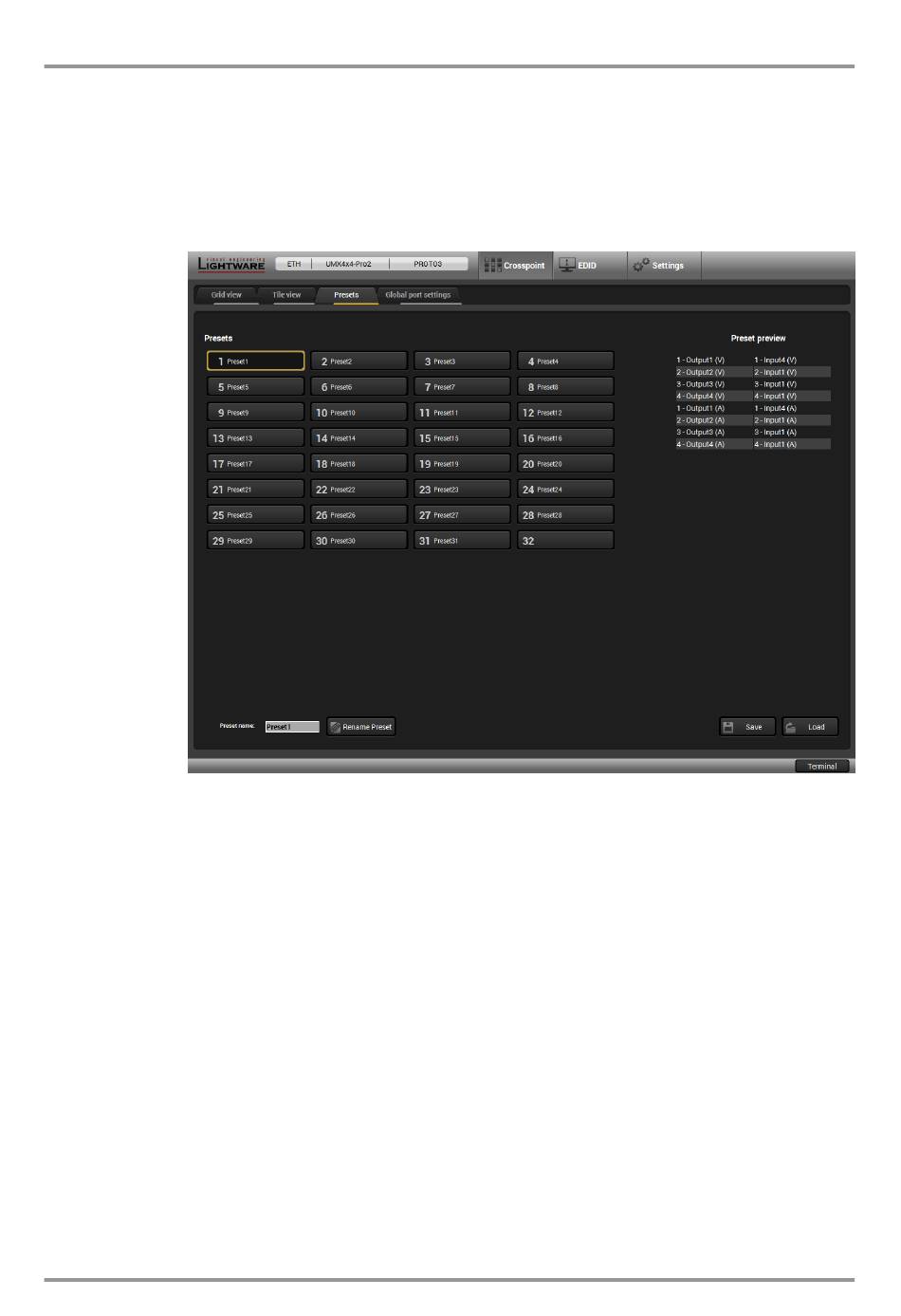

Figure 7-11. Presets tab
