3.2.

Rear view

12 Power
DVI-I in
Fuse 13 2
1
Inputs
2 DVI-I in
3
Analog audio in
4
S/PDIF in
5 Outputs
6
DVI-D out
7 Analog audio out
8
S/PDIF out
9
Reset button
10 Ethernet port
11
RS-232 port
12 Power
13
Fuse
Section 3. Controls and connections
Analog audio out
S/PDIF out
1 Inputs
S/PDIF in
4
3 Analog audio in

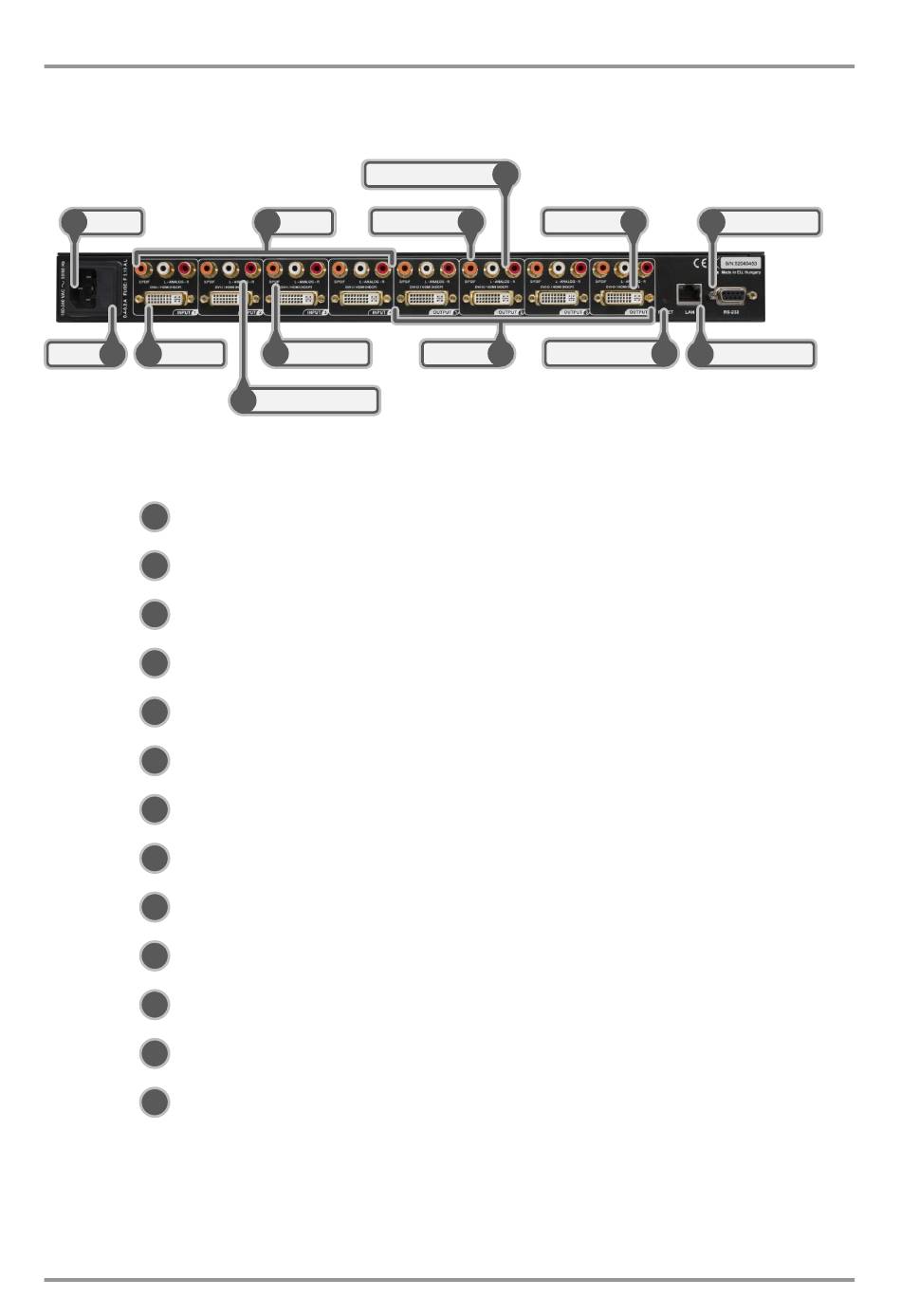

Figure 3-2. UMX4x4-Pro2 rear view
UMX4x4-Pro2 has 4 input ports. Each port has one video, one
analog stereo audio and one digital audio input.
Standard 29 pole DVI-I connectors for input connections. It
accepts analog and digital signals.
Double RCA jack connector for unbalanced, analog stereo
audio input signal (left and right channels).
RCA
UMX4x4-Pro2 has 4 output ports. Each port has one video, one
unbalanced, analog stereo audio and one digital audio output.
Standard 29 pole DVI connectors for outputs - only digital pins
are connected.
Double RCA jack connector for unbalanced, analog stereo
audio output signal (left and right channels).
RCA jack connector for S/PDIF digital audio signal. Embedded
audio is still present on the DVI-D outputs.
Hardware reset button. It resets the whole router, however
saved settings, presets and EDIDs will be preserved.
Standard RJ45 connector. This port can be connected to a
computer directly or to LAN via switch or router.
9 pole D-sub female connector for standard RS-232 port.
Standard IEC power connector. The router works with 100 to
240 Volts, 50 or 60 Hz power sources.
Replace with F 3.15AL type only.
7
DVI-D out
8
Reset button
Outputs 5
jack connector for
UMX4x4-Pro2
User's Manual
6 11 RS-232 Port
9 10 Ethernet port
S/PDIF digital audio
