Creating an EDID (Easy EDID Creator)
Since above mentioned Advanced EDID Editor needs more complex knowledge about
EDID, Lightware introduced a wizard-like interface for fast and easy EDID creation. With
Easy EDID Creator it is possible to create custom EDIDs in four simple steps.
By clicking on the EEC button below Source panel, Easy EDID Creator is opened in a
new window.
Deleting EDID(s)
The EDID(s) from User memory can be deleted as follows:
Step 1. Press User button above Destination panel.
Step 2. Select desired memory slot(s); more ports can be selected. Use Select All and
Step 3. Press Delete selected button to delete the EDID(s).
7.7.

Settings menu

The menu contains Hardware- and Software-related settings and information about
connected device. The content of the tabs is also device-dependent.

7.7.1. Configuration

Settings about establishing the connection to the desired device are available on this tab.
IP Configuration
The IP address and TCP/IP port can be set up here.
Obtain IP address automatically
By selecting the Obtain IP address automatically option, the device gets the IP address
from the DHCP server on the LAN, or if DHCP server is not present, it gets an AutoIP
address from 169.254.xxx.xxx domain. Set BOOTP, DHCP and AutoIP settings according
to your network requirements. Always press the Apply settings button to save changes.
Info: Load default button restores the default network settings (fix IP) to the device: IP
Address: 192.168.254.254, Subnet Mask: 255.255.0.0, Default Gateway: 0.0.0.0.
Info: When serial port is used for connection, these settings cannot be changed.
Page 76 / 136
Deselect All buttons according to the needs. The EDID(s) will be highlighted with
yellow cursor.

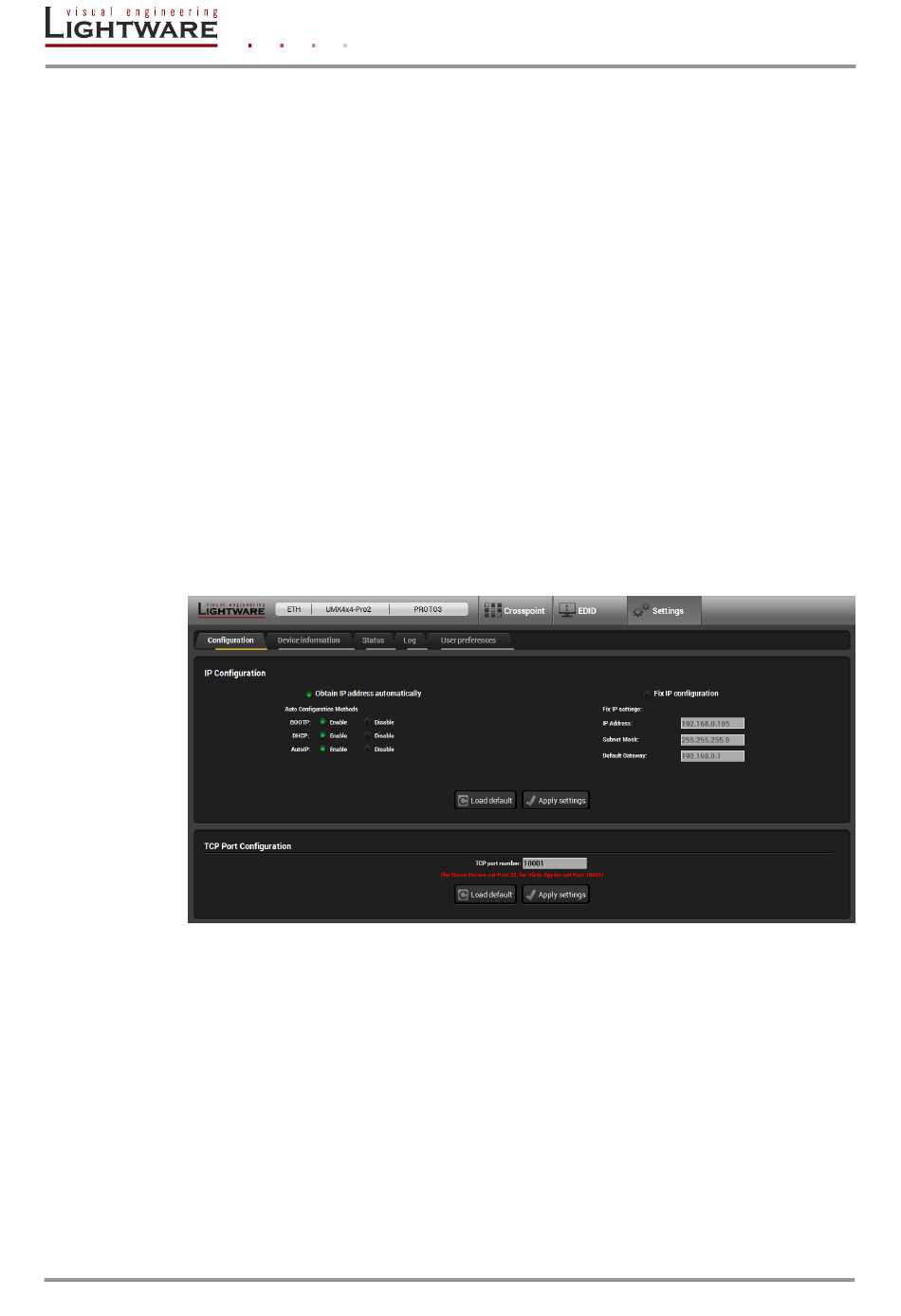

Figure 7-16. Configuration tab
