7.5.
Crosspoint menu
The crosspoint menu contains the crosspoint state with Grid and Tile views, the Preset
area and the Global port settings.
7.5.1. Grid view
In this view, the current state of the crosspoint switch is displayed.
Input ports
1
2
Connections
3
Video output ports
Audio output ports
4
5
Mute buttons
6
Lock buttons
Link layers button
7
Page 58 / 136
1
2
3
4

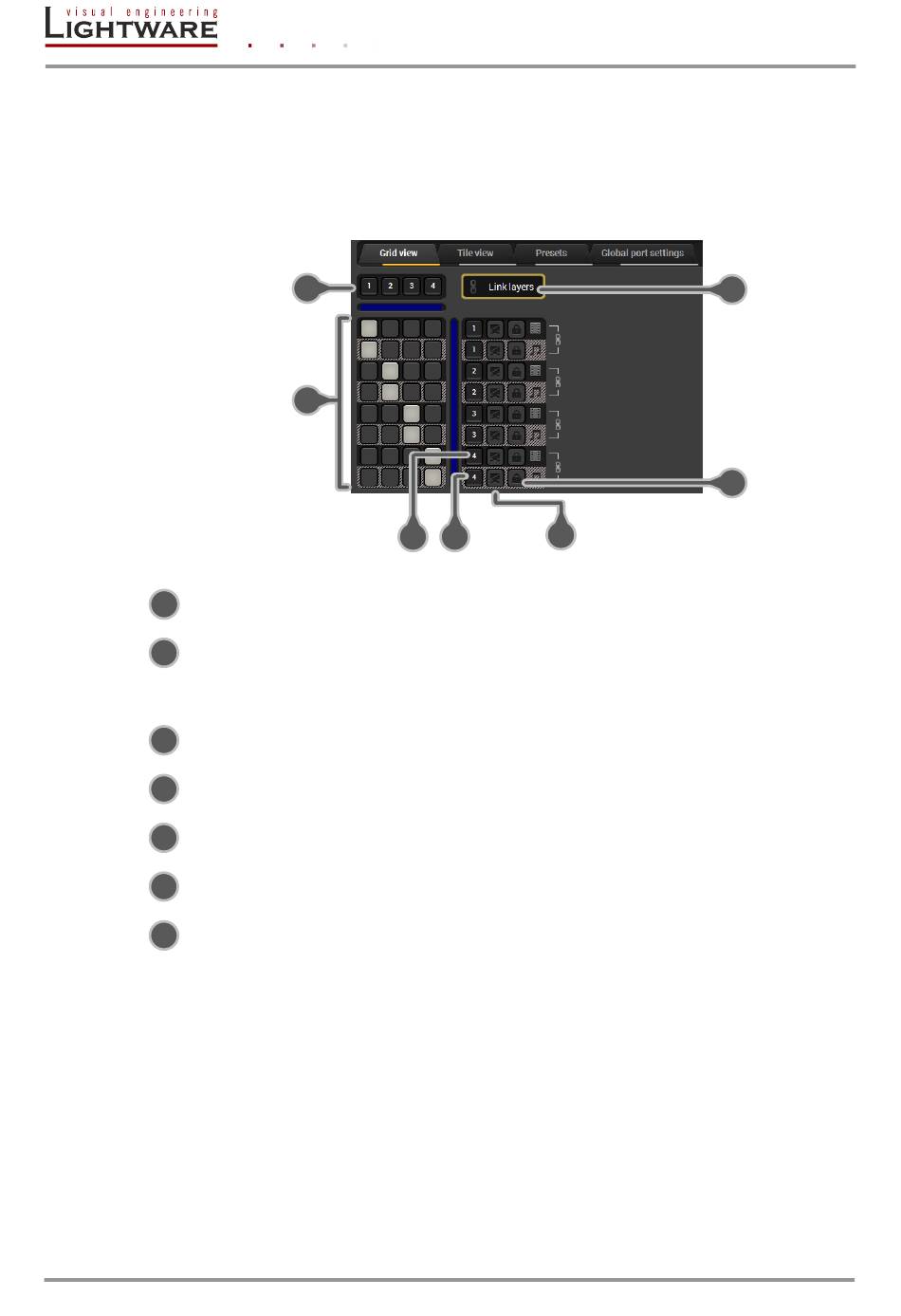

Figure 7-5. Crosspoint array of a UMX4x4-Pro2matrix
Each number represents a video and audio input port.
Light grey square means the port is available but no
connection between the input and the output. White square
means there is a connection between the input and the
output port.
Each number represents a video output port.
Each number represents an audio output port.
Outputs can be easily muted by clicking on the mute button.
For the prevention of the unwanted switching, outputs can
be locked to any input.
If this button is active, audio and video outputs can be
switched to inputs, muted and locked at the same time.
Section 7. Software control –Lightware Device Controller and Web
5
7
6
