Fix IP configuration
In this case, connected device has an IP address configuration set up by the
user/administrator. Depending on modified settings, you might need to restart the device
and the Control Software. Always press the Apply settings button to save changes.
Info:
Load default button restores the default network settings (fix IP) to the device: IP
Address: 192.168.254.254, Subnet Mask: 255.255.0.0, Default Gateway: 0.0.0.0.
Info:
When serial port is used for connection these settings cannot be changed.
TCP Port Configuration
Devices can be accessed via this TCP/IP port number with TCP connection. Port number
can be modified to any number between 1025 and 65535 except the followings:
9999, 14000 - 14009, 30704, and 30718.
To use a matrix with Barco Encore set port to 23.
To use a matrix with Vista Spyder set port to 10001.
Always press the Apply settings button to save changes.
Serial Port Configuration
Devices can be accessed via serial port (standard RS-232), as well. The baud rate can
be modified to followings:
9600, 19200, 38400, 57600, 115200
Info:
The default value is 57600.
7.7.2. Device information
Basic information about connected device and installed cards are listed on this tab.
7.7.3. Status
The voltage levels and temperature measured by the CPU of the device are shown.
Press the Refresh button to show/update values.
Section 7. Software control –Lightware Device Controller and Web

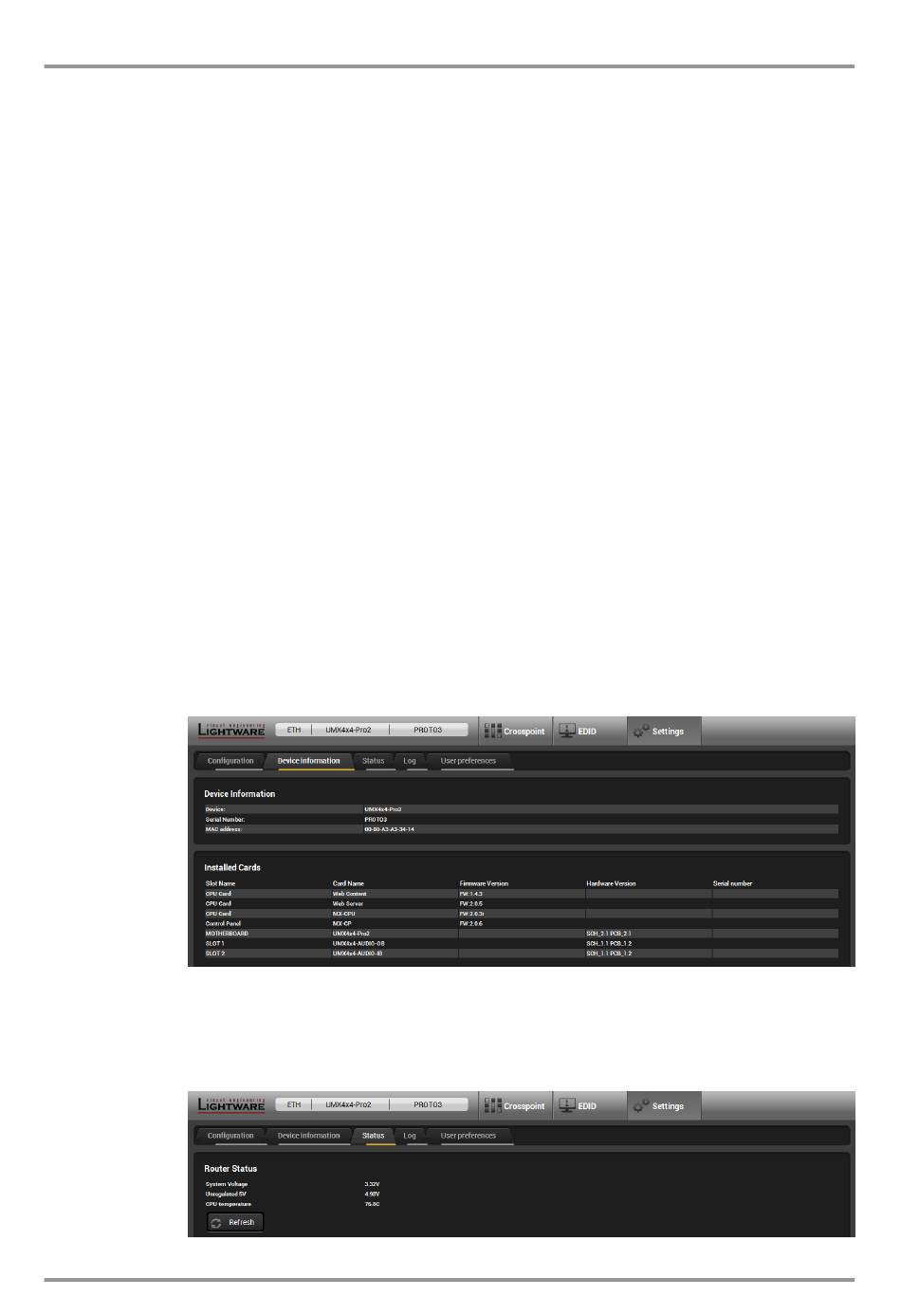

Figure 7-17. Device information tab
Figure 7-18. Status tab
UMX4x4-Pro2
User's Manual
Page 77 / 136
