Goodrive300-21 series dual inverter integrated machine for air compressor
Output voltage
220/110VAC
Note:
1. The RS485 communication cable of touch screen is non-shielded cable, shielded cable needs to
be purchased separately.
2. Please refer to "Instruction manual for VT6070E series touch screen HMI" for detailed instruction
on the touch screen.
Wiring of
emergency-stop signal
Pressure sensor PT100 temp. sensor
interface interface
24V 4-20mA
GD300-21 control board

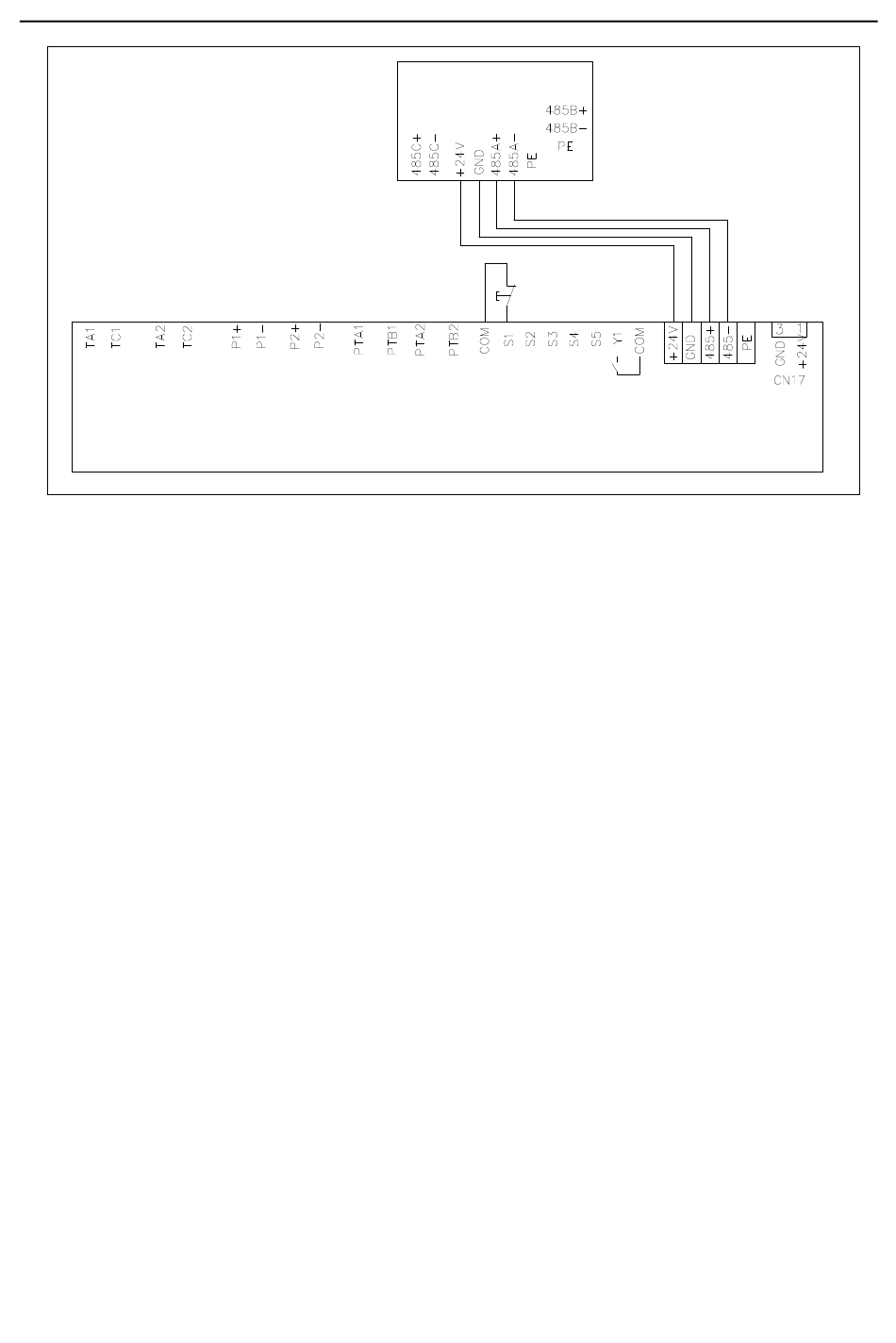

Fig B.21 Wiring of standard cable of touch screen
HMI
RS485 communication cable
Multi-function terminal
- -
87
Appendix B
