Goodrive300-21 series dual inverter integrated machine for air compressor

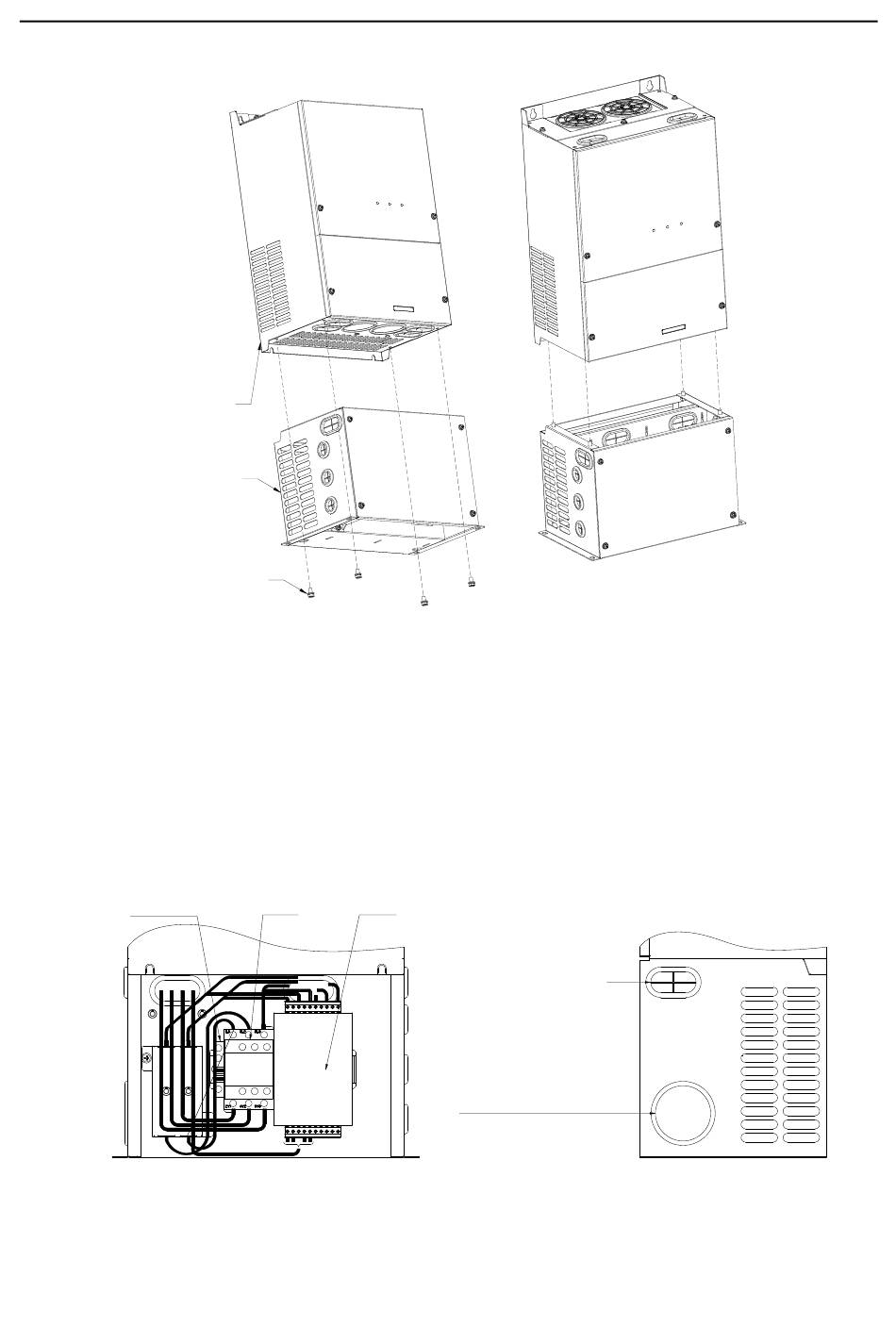

B.6.2. Installation diagram of the pedestal
Integrated
machine
Pedestal
Combination
Note: If users need to install power detection component or contactor component, it is recommended
to install the components onto the pedestal first, then, install the pedestal onto the integrated
machine.
B.6.3. Installation diagram of optional pedestal
Please refer to below diagram if it is needed to install optional power detection component and
contactor component onto the installation pedestal.
Terminal fixed part for guide ra il
screw
Fig B.17 Installation diagram of the pedestal
Power detection module
Contactor
Rear view of pedestal
Fig B.18 Wiring diagram of the back of optional pedestal
Through-hole of U1, V1 and W1 ca ble of
Through-hole of U2, V2 and W2 ca ble of fan
Through-hole of U3, V3 and W3 ca ble of master
- -
84
Back-up
main motor
cooling fan
Rightside view of
pedestal
Appendix B
