Goodrive300-21 integrated machine for air compressor Debugging guidance
"asynchronous motor, it is necessary to set max. frequency, rated frequency, rated power, rated
voltage, rated current, rated rotation speed and carrier frequency.

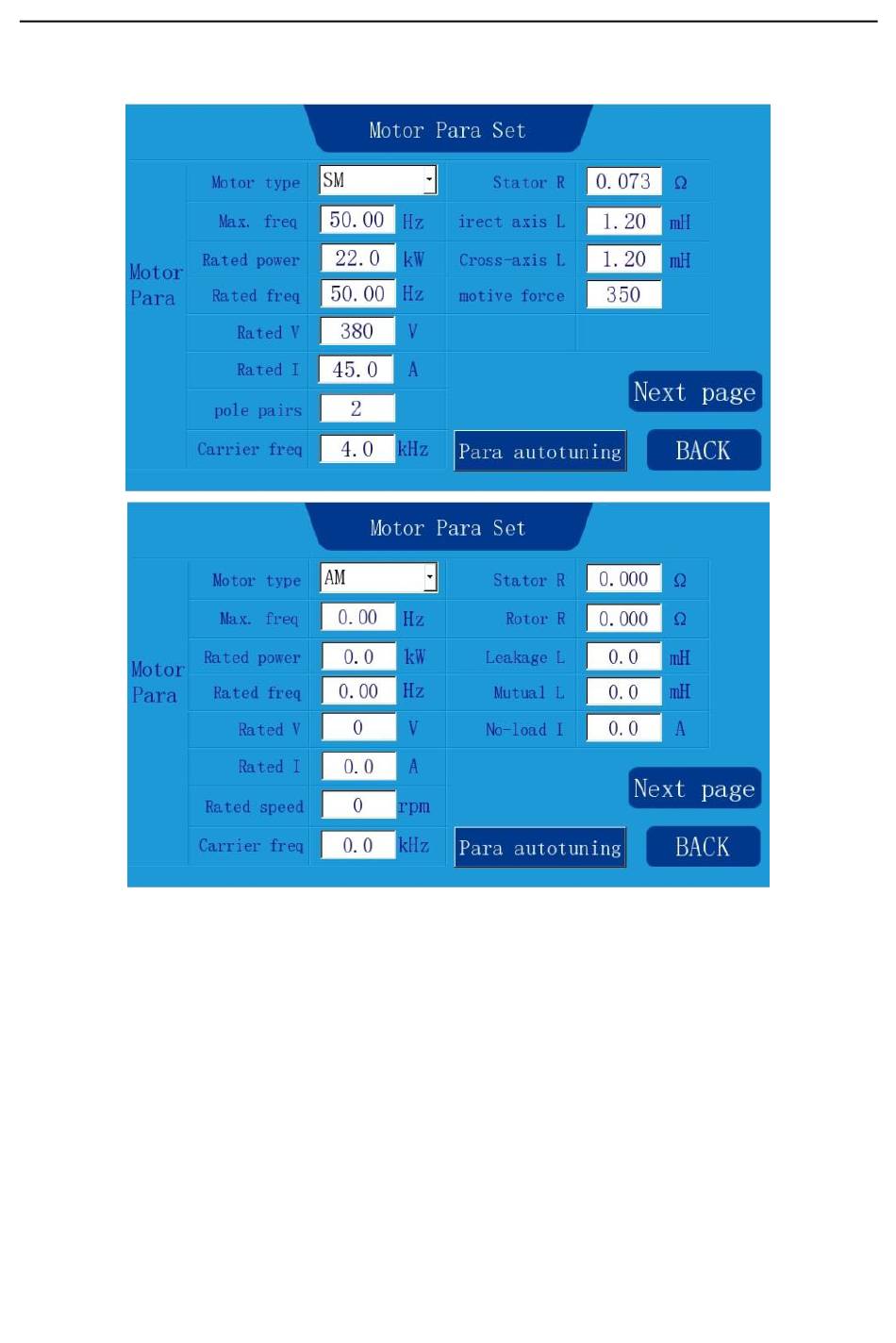

Fig 4.11 Master parameter setting interface
After setting motor parameters according to actual motor nameplate parameters, click "para
autotuning" and after recognition completes, click "Next page" and set fan motor parameter (it is
necessary to set the max. frequency, rated frequency, rated power, rated voltage, rated current and
rated rotation speed.)
- -
