Goodrive300-21 integrated machine for air compressor Debugging guidance

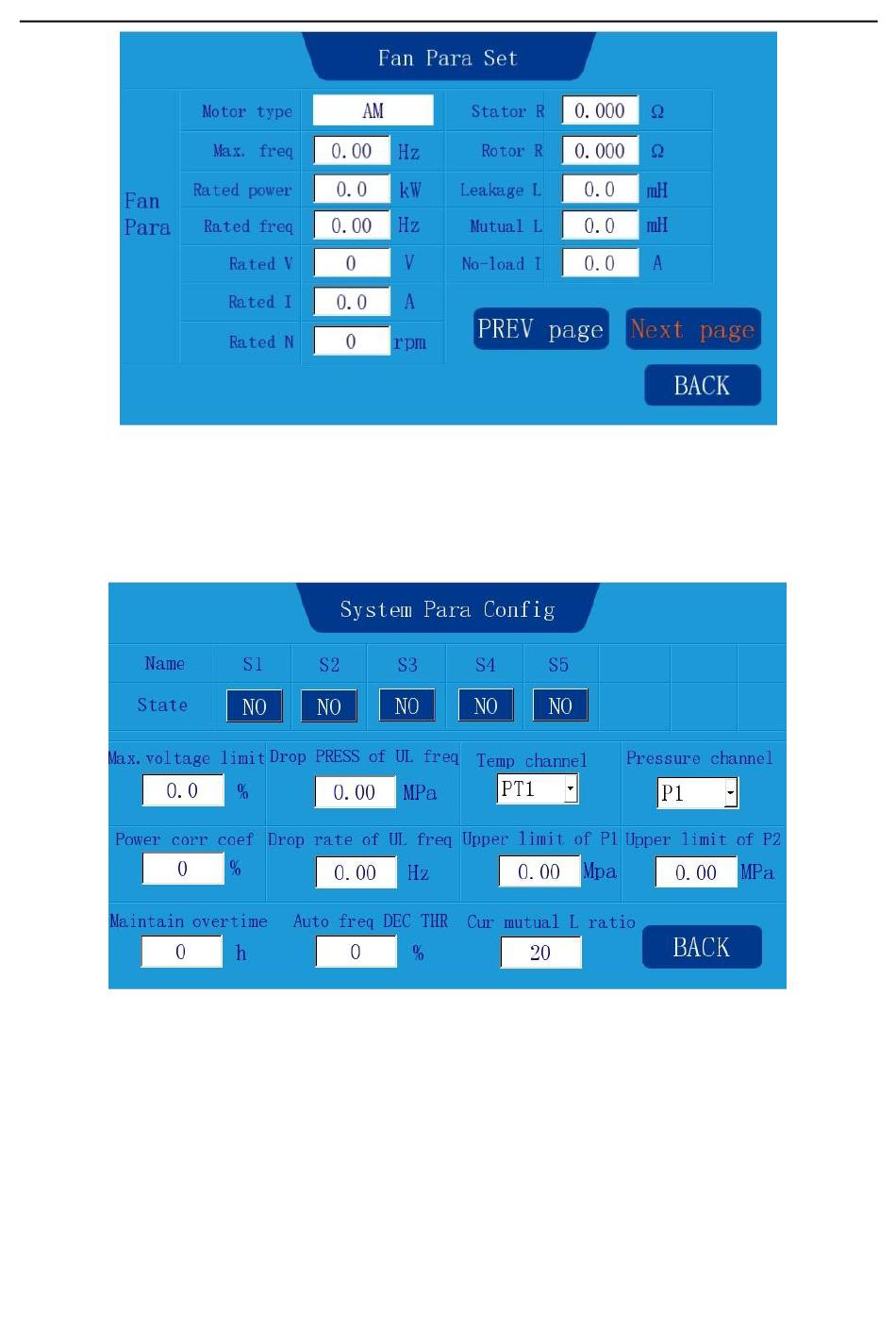

Fig 4.12 Interface for setting fan parameters
Step 3: Click "Next page" to enter "system parameter configuration" or click "BACK" to return to
system configuration. In system configuration interface, click "system para set". S1 acts as E-stop
switch and select NO/NC according to the polarity of E-stop switch. The interface is shown as below:
Fig 4.13 System parameter configuration interface
Set pressure sensor parameter, temperature sensor parameter and specialized function parameter
according to system sensor configuration condition. Then, click "BACK" to enter system configuration
page.
Step 4: In system configuration interface, click "one-key to set para" button and the system will
complete relevant parameter configuration automatically.
Step 5: In system configuration interface, click "debug mode" and the interface is shown as below:
- -
